RMT A-GIANT 14.17" Hydraulic Angle Roll Bending Machine
RMT A-GIANT 14.17" Hydraulic Angle Roll Bending Machine
SKU:REV-a2f546
Powerful RMT A-GIANT 14.17" Hydraulic Angle Roll - Precision and Versatility for Industrial Bending Tasks
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
RMT A-GIANT 14.17" Hydraulic Angle Roll Bending Machine
$15,999.99
Quantity: 1
Claim Your Seller Account
RMT A-GIANT 14.17" Hydraulic Angle Roll Bending Machine
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

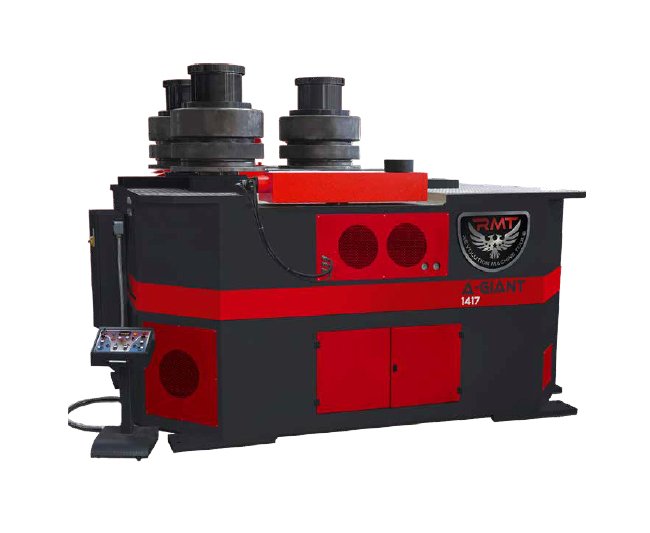

The RMT A-GIANT 14.17" Hydraulic Angle Roll Bending Machine is a powerhouse for industrial applications, featuring a robust 105 hp motor power and 14.17" shaft diameter. With an extensive bending capacity of up to 16" SCH 40 Pipe, this machine ensures precision and efficiency. Equipped with advanced features like hydraulic lateral angle guide rolls and hardened shafts, it offers exceptional performance. RMT's angle rolls are versatile, offering optional attachments for ornamental applications, ensuring a wide range of production capabilities. From robust steel construction to a 10-year warranty on main frames, this machine combines durability with high precision to meet the most demanding requirements.
Product Specifications
Angle Leg In Angle Leg In Dimension
10 x 10 x 1 in
Angle Leg In Angle Leg In Minimum Internal Diameter
180 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
10 x 10 x 1 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
160 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Leg In C Section Leg In Dimension
C15-50#
C Section Leg In C Section Leg In Minimum Internal Diameter
92 in
C Section Leg In C Section Leg In Note
Standard RollsSpecial Rolls
C Section Leg Out C Section Leg Out Dimension
C15-50#
C Section Leg Out C Section Leg Out Minimum Internal Diameter
88 in
C Section Leg Out C Section Leg Out Note
Standard RollsSpecial Rolls
Dimensions Height
134 in
Dimensions Length
187 in
Dimensions Width
130 in
Flat Along Edge Flat Along Edge Dimension
12 x 4 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
126 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
200 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
472 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
126 in
Solid Round Solid Round Diameter
9 in
Solid Round Solid Round Minimum Internal Diameter
244 in
Solid Square Solid Square Minimum Internal Diameter
126 in
Specifications Motor Power
105 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
33.46 in
Specifications Shaft Diameter
14.17 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
550 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
18 x 0.300 in
Tubing Round Tubing Round Minimum Internal Diameter
590 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
400 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
120 in
T Section Leg In T Section Leg In Minimum Internal Diameter
158 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
120 in
