RMT A-GIANT 9.44In Hydraulic Angle Roll Bending Machine
RMT A-GIANT 9.44In Hydraulic Angle Roll Bending Machine
SKU:REV-3089d4
Powerful RMT A-GIANT 9.44In Hydraulic Angle Roll Bending Machine for precise and versatile metalworking projects.
Regular price
$78,999.99
Regular price
Sale price
$78,999.99
Unit price
per
Initiate Order
RMT A-GIANT 9.44In Hydraulic Angle Roll Bending Machine
$78,999.99
Quantity: 1
Claim Your Seller Account
RMT A-GIANT 9.44In Hydraulic Angle Roll Bending Machine
$78,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

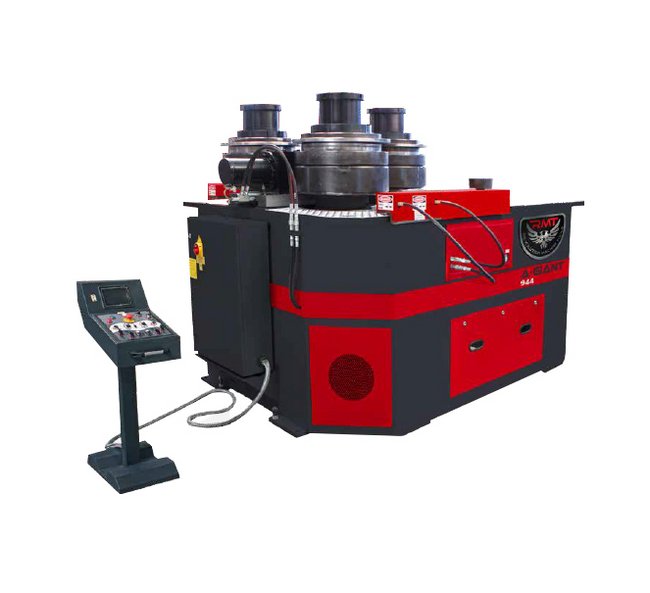

The RMT A-GIANT 9.44 Inch Shaft Diameter Hydraulic Angle Roll Bending Machine is a powerhouse designed for precision bending. With a 60 hp motor power and the ability to handle up to 16" SCH 40 pipe bending, this machine offers exceptional versatility for various metalworking projects. Crafted with steel construction, hardened shafts, and hydraulic lateral angle guide rolls, it ensures durability and accuracy. Additionally, it can be equipped with optional tools for ornamental applications and features a 10-year warranty on main frames, making it a reliable choice for industrial needs.
Product Specifications
Angle Leg In Angle Leg In Dimension
8 x 8 x 3/4 in
Angle Leg In Angle Leg In Minimum Internal Diameter
160 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
8 x 8 x 3/4 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
120 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Hard Way C Section Hard Way Dimension
C10-25#
C Section Hard Way C Section Hard Way Minimum Internal Diameter
473 in
C Section Leg In C Section Leg In Minimum Internal Diameter
138 in
C Section Leg Out C Section Leg Out Minimum Internal Diameter
120 in
Dimensions Height
126 in
Dimensions Length
122 in
Dimensions Width
95 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
150 in
H Section Easy Way H Section Easy Way Minimum Internal Diameter
158 in
H Section Hard Way H Section Hard Way Minimum Internal Diameter
276 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
138 in
I Section Hard Way I Section Hard Way Minimum Internal Diameter
473 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
200 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
100 in
Solid Round Solid Round Diameter
6 in
Solid Round Solid Round Minimum Internal Diameter
120 in
Solid Square Solid Square Minimum Internal Diameter
96 in
Specifications Motor Power
60 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
27.55 in
Specifications Shaft Diameter
9.44 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
315 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
12 x 0.250 in
Tubing Round Tubing Round Minimum Internal Diameter
354 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
240 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
120 in
T Section Leg In T Section Leg In Minimum Internal Diameter
138 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
120 in
