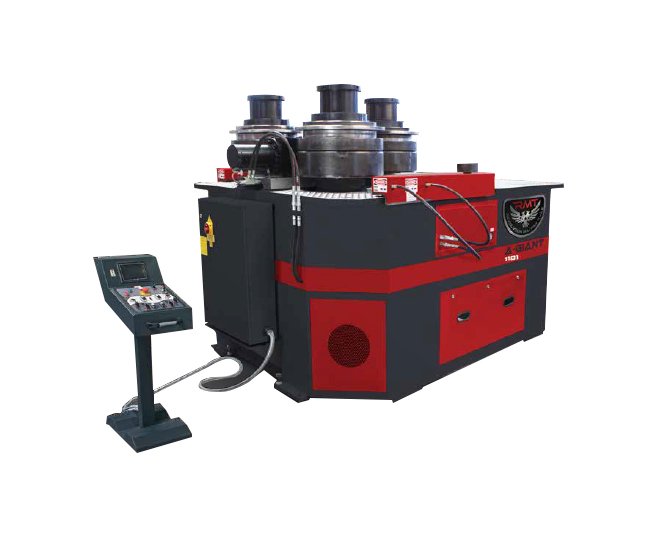

RMT A-Giant Series Hydraulic Angle Roll Bending Machine - 11.81in Shaft Diameter
RMT A-Giant Series Hydraulic Angle Roll Bending Machine - 11.81in Shaft Diameter
SKU:REV-982b75
RMT A-Giant Hydraulic Angle Roll Bending Machine - Precision meets power for superior bending operations.
Regular price
$99,899.00
Regular price
Sale price
$99,899.00
Unit price
per
Initiate Order
RMT A-Giant Series Hydraulic Angle Roll Bending Machine - 11.81in Shaft Diameter
$99,899.00
Quantity: 1
Claim Your Seller Account
RMT A-Giant Series Hydraulic Angle Roll Bending Machine - 11.81in Shaft Diameter
$99,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT A-Giant Series Hydraulic Angle Roll Bending Machine is a powerhouse of precision and strength. With a robust 11.81-inch shaft diameter, this machine handles a wide range of bending tasks effortlessly. From solid squares to various tubing shapes, this bending machine excels in accuracy, driven by 100 hp motor power. Offering advanced features like two-speed working system, hardened standard rolls, and CNC compatibility, it ensures exceptional performance for both ornamental and heavy-duty applications. RMT's dedication to quality and service shines through in every detail, backed by a 10-year warranty on the main frame.
Product Specifications
Angle Leg In Angle Leg In Dimension
10 x 10 x 1 in
Angle Leg In Angle Leg In Minimum Internal Diameter
180 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
10 x 10 x 1 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
160 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
Benefits
For Ornamental Applications RMT angle rolls can be equipped with optional scroll bending tools, picket twisting tools and helical stair rail attachments. If you are considering buying a Manual Bender or Hydraulic Bender or CNC Pipe Bender or Tube Roll or any type of Roll Bender, RMT can satisfy your production requirements. Our angle rolls are available in all sizes from small economical portable benders to large heavy duty pipe benders that will fit your rolling budget.RMT's service department employs factory trained experienced professionals to service your spare parts, repair and technical needs. We stock tooling and spare parts. Our CNC machine shop can build any custom tooling you need with a rapid turn-around. We manufacture tooling for other brands of Ring Rollers and Roll Bending Machines. For high volume roll bending or multi-radius parts, our optional CNC Angle Rolls with direct radius input let you roll up to the next level with the highest precision, repeatability and speed. Our high quality OEM components are non-proprietary and available worldwide. Main frames carry a 10 year warranty! We are confident in RMT superior quality. Regardless of your need and budget for a roll bender, you will benefit from choosing RMT. Our true quality and integrity is in the "details" of every RMT roll bender. Compare and see for yourself why RMT Bending Machines have become on of the most respected brand names in the roll bending industry. Come visit us to see our machines first hand and experience the RMT difference!
C Section Hard Way C Section Hard Way Dimension
C12-30#
C Section Hard Way C Section Hard Way Minimum Internal Diameter
580 in
C Section Leg In C Section Leg In Minimum Internal Diameter
112 in
C Section Leg Out C Section Leg Out Minimum Internal Diameter
98 in
Dimensions Height
148 in
Dimensions Length
197 in
Dimensions Width
168 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
122 in
H Section Easy Way H Section Easy Way Minimum Internal Diameter
200 in
H Section Hard Way H Section Hard Way Minimum Internal Diameter
375 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
120 in
I Section Hard Way I Section Hard Way Minimum Internal Diameter
413 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
315 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
100 in
Solid Round Solid Round Diameter
8 in
Solid Round Solid Round Minimum Internal Diameter
216 in
Solid Square Solid Square Minimum Internal Diameter
100 in
Specifications Motor Power
100 hp
Specifications Power Source
Hydraulic
Specifications Roll Diameter
31.49 in
Specifications Shaft Diameter
11.81 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
433 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
14 x 0.250 in
Tubing Round Tubing Round Minimum Internal Diameter
423 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
305 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
120 in
T Section Leg In T Section Leg In Minimum Internal Diameter
158 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
120 in
