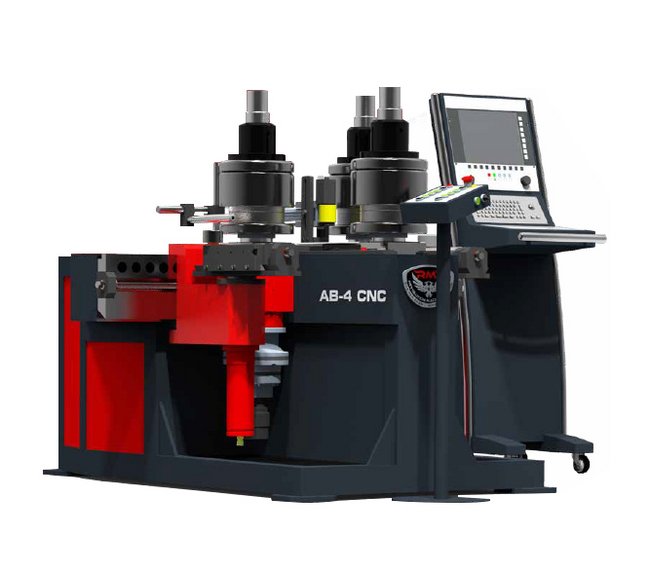

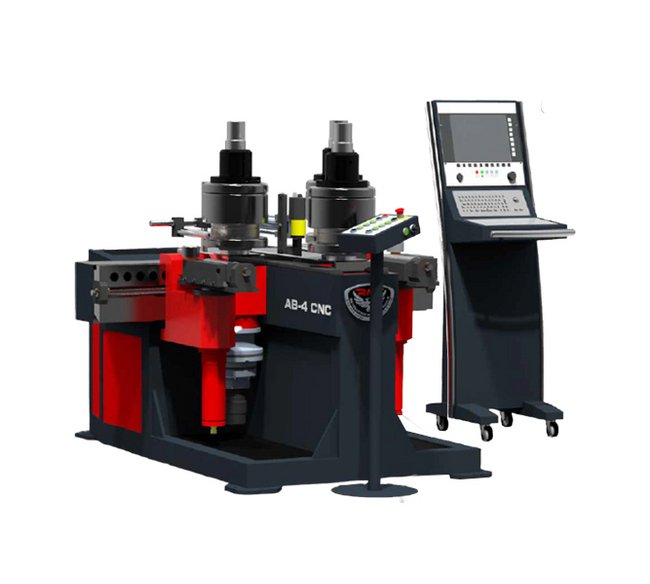

RMT AB Series CNC Angle Roll Bending Machine
RMT AB Series CNC Angle Roll Bending Machine
SKU:REV-0b2dc6
Achieve precision metal bending with ease using the RMT AB Series CNC Angle Roll Bending Machine. Ideal for steel and aluminum tubes and profiles.
Regular price
$39,999.99
Regular price
Sale price
$39,999.99
Unit price
per
Initiate Order
RMT AB Series CNC Angle Roll Bending Machine
$39,999.99
Quantity: 1
Claim Your Seller Account
RMT AB Series CNC Angle Roll Bending Machine
$39,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

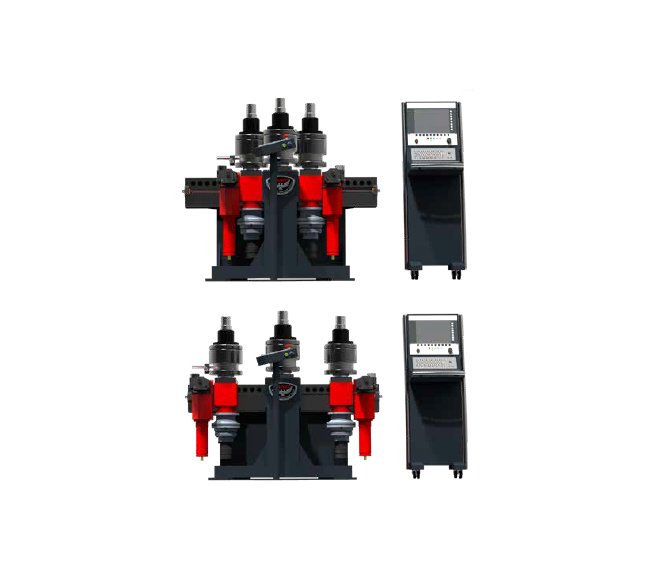

Enhance your metal fabrication capabilities with the RMT AB Series CNC Angle Roll Bending Machine. Designed by Revolution Machine Tools, this machine offers precision bending for steel and aluminum tubes and profiles. The CNC control technology simplifies program creation, resulting in accurate bends with ease. With adjustable side rolls, the AB series ensures precise bending of heavy profiles. Its modular design dies and advanced hydraulic and electrical hardware make it a top choice for industrial applications.
Product Specifications
Additional Information
The roller discs can be expanded and combined arbitrarily. Roller disc combinations can be made from steel and plastic.All rolls are individually and directly driven. No chain drives or sliding clutches are used. The speed is automatically adapted to the diameter of the rollers as well as the profile width and the bending radius. Damage to the profile is avoided and the greatest possible feed force is achieved. The drives offer the highest torque, are maintenance-free and overload proof.
Angle Leg In Angle Leg In Dimension
4 x 4 x 3/8 in
Angle Leg In Angle Leg In Minimum Internal Diameter
100 in
Angle Leg In Angle Leg In Note
Standard RollsSpecial Rolls
Angle Leg Out Angle Leg Out Dimension
4 x 4 x 3/8 in
Angle Leg Out Angle Leg Out Minimum Internal Diameter
80 in
Angle Leg Out Angle Leg Out Note
Standard RollsSpecial Rolls
C Section Leg In C Section Leg In Dimension
C10-20#
C Section Leg In C Section Leg In Minimum Internal Diameter
65 in
C Section Leg Out C Section Leg Out Minimum Internal Diameter
60 in
Dimensions Height
59 in
Dimensions Length
77 in
Dimensions Width
65 in
Flat Along Edge Flat Along Edge Minimum Internal Diameter
48 in
I Section Easy Way I Section Easy Way Minimum Internal Diameter
60 in
Schedule 40 Pipe Note For Schedule 40 Pipe Minimum Internal Diam
Can be changed according to deformation
Schedule 40 Pipe Schedule 40 Pipe Minimum Internal Diameter
15 in | 120 in
Solid Rectangle Solid Rectangle Minimum Internal Diameter
40 in
Solid Round Solid Round Diameter
3-1/2 in
Solid Round Solid Round Minimum Internal Diameter
60 in
Solid Square Solid Square Minimum Internal Diameter
20 in | 48 in
Specifications Full Load Current At 380 Volt V Voltage And 3 Pha
43 A
Specifications Maximum Rectangle Tube Bending Capacity
HSS-6 x 3 x 0.250 in. (A36)
Specifications Maximum Round Tube Bending Capacity
6 in. Schedule 40 (A36)
Specifications Maximum Square Tube Bending Capacity
HSS-5 x 5 x 0.250 in. (A36)
Specifications Operating Voltage
480 V
Specifications Power Consumption
30 hp
Specifications Roll Diameter
8.26 to 11.02 in
Specifications Shaft Diameter
3.54 in
Tubing Rectangle Note For Tubing Rectangle Minimum Internal Diam
Can be changed according to deformation
Tubing Rectangle Tubing Rectangle Minimum Internal Diameter
80 in
Tubing Round Note For Tubing Round Minimum Internal Diameter
Can be changed according to deformation
Tubing Round Tubing Round Diameter
1 x 0.080 in | 4 x 0.100 in
Tubing Round Tubing Round Minimum Internal Diameter
15 in | 40 in
Tubing Square Note For Tubing Square Minimum Internal Diameter
Can be changed according to deformation
Tubing Square Tubing Square Minimum Internal Diameter
60 in
T Section Leg Down T Section Leg Down Minimum Internal Diameter
80 in
T Section Leg In T Section Leg In Minimum Internal Diameter
100 in
T Section Leg Out T Section Leg Out Minimum Internal Diameter
80 in
