RMT B-GENIUS Press Brake 10-350 7-Axis CNC Syncro Bending Machine
RMT B-GENIUS Press Brake 10-350 7-Axis CNC Syncro Bending Machine
SKU:PRE-9f924b
RMT B-GENIUS 10-350 Press Brake: Precision bending with 350-ton force, 7-axis CNC control, and exceptional efficiency.
Regular price
$95,000.00
Regular price
Sale price
$95,000.00
Unit price
per
Initiate Order
RMT B-GENIUS Press Brake 10-350 7-Axis CNC Syncro Bending Machine
$95,000.00
Quantity: 1
Claim Your Seller Account
RMT B-GENIUS Press Brake 10-350 7-Axis CNC Syncro Bending Machine
$95,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

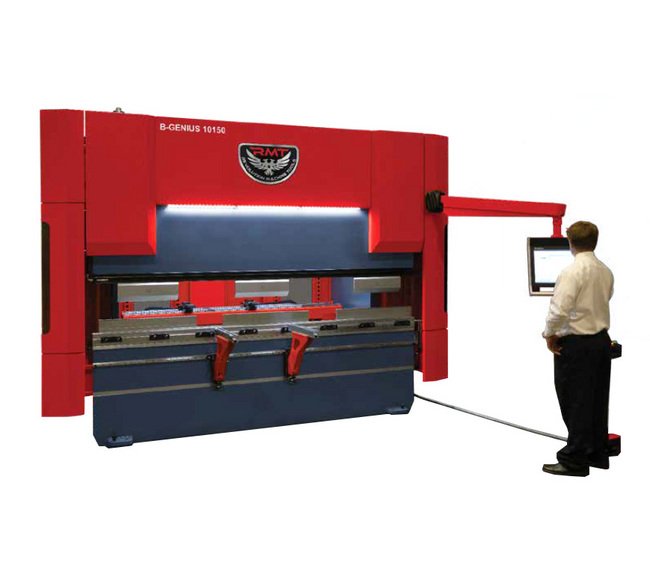

The RMT B-GENIUS Press Brake 10-350 is a cutting-edge solution designed for precision bending in industrial settings. With a robust 350-ton bending force and advanced 7-axis CNC control, this machine offers unparalleled accuracy and efficiency. Its innovative features include Y1, Y2 precision ram positioning, X, R precision servo-driven back gauge, and CNC motorized wave crowning for optimal results. The machine's sturdy construction, high-speed ram functions, and customizable back gauge system ensure reliable performance, making mass production of precision parts cost-effective. RMT press brakes are engineered to elevate productivity, reduce costs per part, and deliver superior bending capabilities for diverse manufacturing needs.
Product Specifications
Additional Information
Standard 7-Axis CNC Available 16+ Axis6' - 20' Bending Lengths/70-660 TonsFlush Floor Press Brakes to 20' x 660 TonThe B-GENIUS Series press brake features an automatic CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and a 3D capable graphical control unit to simulate bending sequences and collision points.
Back Gauge System 3rd Gaugeable Finger Position Programmable
41.7 in
Back Gauge System Maximum R Axis Speed Standard
5 to 378 in/min
Back Gauge System Maximum Z1 Z2 Axis Speed Optional
5 to 3425 in/min
Back Gauge System Number Of Back Gauge Finger Block
2 Pieces
Back Gauge System R Axis Travel Standard
10.2 in
Back Gauge System X Axis Speed Programmable
5 to 1890 in/min
Back Gauge System X Axis Travel Programmable
32.3 in
Benefits
What better benefit can a machine provide than adding to your bottom line. RMT press brakes do this by helping you produce higher quality parts faster than ever and all with lower operating and maintenance costs. RMT has a press brake to match your needs and budget whether your application requires bending complex parts or simple shapes. RMT press brakes have been designed to be precise, reliable, and high performing with easy operation. We have a solution for every manufacturing environment and offer several models of press brakes with multiple features and options. Each of our press brake models have a variety of lengths and tonnages and can be customized to your requirements.All RMT press brakes have been designed for high performance and enhanced with five main innovations to increase your productivity while decreasing your cost per part including: A rigid mono-block frame constructed from mill certified high-yield steel for dependable performance;Quality precision ram positioning accurate to within 0.0004 inch provided by dual cylinders and rams for stable ram motion;A deeper throat allows you to use the full length of the machine to form more parts;The increased daylight opening accommodates a larger range of parts;More stroke length which provides additional flexibility and versatility.
Machine Dimensions Machine Height
126 in
Machine Dimensions Machine Length
179 in
Machine Dimensions Machine Width
97 in
Note
Optional extra daylight, stroke, throat depths available.Specifications subject to verification. Due to ongoing product development, machine specifications can change at any time.
Optional Features
Safety laser: Motorized F. AKAS III MLight curtain: SICK C 4000 for tandem/trio/quad machinesAdaptive bending sensorsUp to 14+ Axes available:X1, X2 AxesR1, R2 AxesX Prime (Delta X) Axis, +/5" stroke (10" total)X-Axis = 40" external travel- back protection with light barrierX1, X2 Axes for light pole productionSheet follower with sliding guide - motorized height adjustmentFront feeding system with supportsFront feeding system with supports - pneumatic pushersOther CNC control units available:DELEM DA-69T touch screen 2D/3D CNC controlCybelec ModEva 10S/12S/15S 3D with PC 1200 3D SWClamping:Quick release clampingRMT hydraulic or mechanical clampingWila or Wilson hydraulic or mechanical clampingVarious tool options (RMT, Euro-American, Wila or Wilson)Extended back gauge stroke & back protection with light barrierOff-line software (V-Bend, Radbend, Profile-W)Tooling packagesMultiple brake configurations available:Tandem configurationTrio configurationQuad configurationHigh tonnage flush floor modelsCustom Colors
Ram Speeds Programmable Decompression Speed
0 to 24 in/min
Ram Speeds Programmable Y Axis Approach Speed
66 to 331 in/min
Ram Speeds Programmable Y Axis Forming Speed
0 to 24 in/min
Ram Speeds Programmable Y Axis Return Speed
76 to 378 in/min
Specifications Application
Tandem/Trio/Quad Applications
Specifications Approximate Weight
38,500 lb
Specifications Type
Press Brake
Standard Features
7-Axis CNC:Y1, Y2 precision ram positioningX, R precision servo-driven back gaugeZ1, Z2 AxesCNC motorized wave crowningLarge trio of value:Large open heightLarge strokeLarge throat depthSafety laser with manual F. AKAS II M -FPSC-B-C + safety covers with switchDELEM DA-66T touch screen CNC control unit with 3D graphical visualizationClamping:American/European section-style box punch clamps(standard on 420 Ton and lower)American-only style punch clamp available at no charge on 420 Ton and lowerStandard X-Axis travel is 32.3" with third gauge step capable of gauging parts up to 41.7" with standard back gauge (most machines)Stable and fast AC servo motor-driven precision back gauge with linear guide and ball bearing system (X - R)Quick-set sliding front sheet support arms with full-length linear guide, tilting stop and T-slot (front gauge squaring, etc.)Protection covers (side and rear safety doors)Rear work lightWorld-class hydraulic and electronic components that are easily replaceable (parts stocked by us or available off-the-shelf from your local supplier):Hydraulic blocks and valves (Hoerbiger)Electronics system (Siemens, Schneider, Mitsubishi)Adjustable height suspension control unit armHigh-yield plate constructionAbility to accurately fade ramStage bendingAutomatic bend sequence determinationAutomatic stretch length calculator for blank size determinationHydraulic Oil (up to 250 Ton machines)
Standard Machine Characteristics Bed Height F
35.4 in
Standard Machine Characteristics Bending Force
350 Tons
Standard Machine Characteristics Bending Length A
10 ft 2 in.
Standard Machine Characteristics Daylight D
24.8 in
Standard Machine Characteristics Distance Between Frames B
8 ft 6 in.
Standard Machine Characteristics Length Of Ram Stroke C
15 in
Standard Machine Characteristics Motor Power
40 hp
Standard Machine Characteristics Number Of Sliding Front Support
2 Pieces
Standard Machine Characteristics Oil Tank Capacity
106 gal
Standard Machine Characteristics Optional Bed Cap Width G2
12 in
Standard Machine Characteristics Standard Bed Cap Width G1
6 in
Standard Machine Characteristics Throat Depth E
16.1 in
