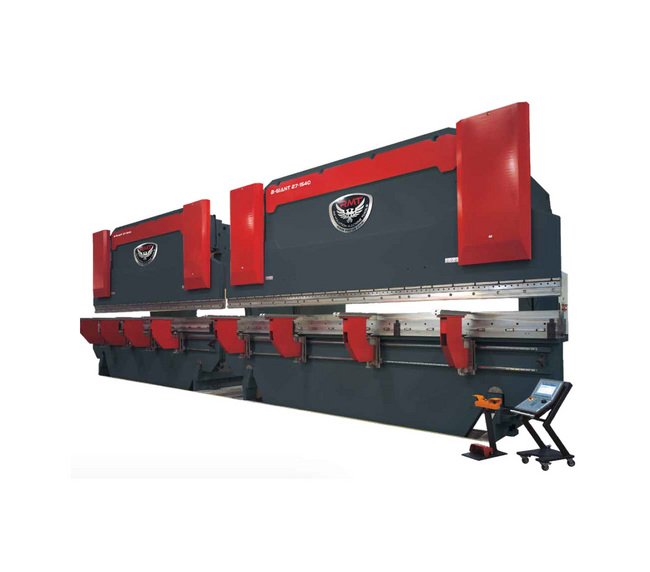

RMT B-GIANT 26-900 CNC Syncro Press Brake
RMT B-GIANT 26-900 CNC Syncro Press Brake
SKU:PRE-062285
High-performance RMT B-GIANT 26-900 CNC Syncro Press Brake: 900 Tons, 7-axis CNC control, precision bending for institutional applications.
Regular price
$127,999.99
Regular price
Sale price
$127,999.99
Unit price
per
Initiate Order
RMT B-GIANT 26-900 CNC Syncro Press Brake
$127,999.99
Quantity: 1
Claim Your Seller Account
RMT B-GIANT 26-900 CNC Syncro Press Brake
$127,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT B-GIANT 26-900 CNC Syncro Press Brake is a high-performance bending machine designed for institutional and industrial applications. With a bending force of 900 Tons and 7-axis CNC control, it offers precision, flexibility, and speed for complex bending needs. Featuring a rigid mono-block frame, dual cylinders for precise ram positioning, deep throat depth, and increased daylight opening, this press brake ensures accuracy, efficiency, and versatility. The machine's advanced technologies enable automatic loading/unloading of materials, improving productivity and safety while reducing costs. Ideal for bending large sheets with high precision, this press brake is a top choice for demanding manufacturing environments.
Product Specifications
Additional Information
Standard 7 Axis CNC Available 14+ Axis14' - 20' Bending Lengths/660 - 4000 TonsSingle/Tandem/Trio/Quad ApplicationsRMT provides the latest technology in "large format" bending and automation for your big application press brake requirements. The B-GIANT Series combines high tonnage press brakes with automated material handling, providing a turnkey solution.
Back Gauge System 3rd Gaugeable Finger Position Programmable
49 in
Back Gauge System Maximum R Axis Speed Computer Numerical Contro
1 to 189 in/min
Back Gauge System Number Of Back Gauge Finger Block
4 Pieces
Back Gauge System R Axis Travel Computer Numerical Control Cnc S
10 in
Back Gauge System X Axis Speed Programmable
1 to 709 in/min
Back Gauge System X Axis Travel Programmable
39 in
Benefits
Flexibility of bending for diversified usesAccuracy for large and high spring-back sheetsFaster set-up times with automatic loading and unloading of materialsImproved safety for employeesUsing advanced technologies for bending large sheet metal can, in some applications, reduce the need for long, expensive welding operations. This not only saves money, it reduces negative impact on material stability that can occur during welding.What better benefit can a machine provide than adding to your bottom line. RMT press brakes do this by helping you produce higher quality parts faster than ever and all with lower operating and maintenance costs. RMT has a press brake to match your needs and budget whether your application requires bending complex parts or simple shapes. RMT press brakes have been designed to be precise, reliable, and high performing with easy operation. We have a solution for every manufacturing environment and offer several models of press brakes with multiple features and options. Each of our press brake models have a variety of lengths and tonnages and can be customized to your requirements.All RMT press brakes have been designed for high performance and enhanced with five main innovations to increase your productivity while decreasing your cost per part including: A rigid mono-block frame constructed from mill certified high-yield steel for dependable performance;Quality precision ram positioning accurate to within 0.0004 inch provided by dual cylinders and rams for stable ram motion;A deeper throat allows you to use the full length of the machine to form more parts;The increased daylight opening accommodates a larger range of parts;More stroke length which provides additional flexibility and versatility.
Machine Dimensions Machine Height
197 in
Machine Dimensions Machine Length
362 in
Machine Dimensions Machine Width
110 in
Note
2200+ tons bending force and 26+ ft bending length please consult your dealer or RMT representative.Specifications subject to verification. Due to ongoing product development, machine specifications can change at any time.
Ram Speeds Programmable Decompression Speed
0 to 24 in/min
Ram Speeds Programmable Y Axis Approach Speed
0 to 165 in/min
Ram Speeds Programmable Y Axis Forming Speed
0 to 14 in/min
Ram Speeds Programmable Y Axis Return Speed
18 to 142 in/min
Specifications Application
Single/Tandem/Trio/Quad Applications
Specifications Type
Press Brake
Standard Machine Characteristics Bed Height F
41.3 in
Standard Machine Characteristics Bending Force
900 Tons
Standard Machine Characteristics Bending Length A
26 ft 6 in.
Standard Machine Characteristics Daylight D
29.5 in
Standard Machine Characteristics Depth Of Pit P1
27.6 in
Standard Machine Characteristics Depth Of Pit P2
66.9 in
Standard Machine Characteristics Distance Between Frames B
19 ft 10 in.
Standard Machine Characteristics Length Of Ram Stroke C
19.7 in
Standard Machine Characteristics Motor Power
60 hp
Standard Machine Characteristics Number Of Sliding Front Support
4 Pieces
Standard Machine Characteristics Oil Tank Capacity
185 gal
Standard Machine Characteristics Optional Bed Cap Width G2
19.7 in
Standard Machine Characteristics Standard Bed Cap Width G1
12 in
Standard Machine Characteristics Throat Depth E
29.5 in
