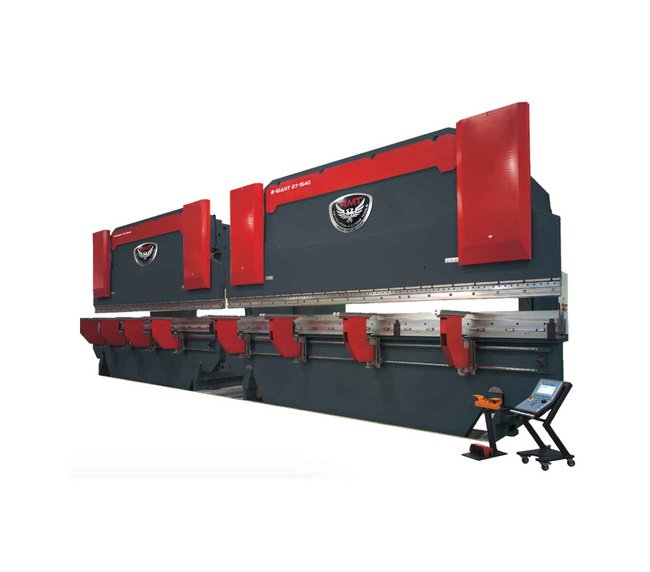

RMT B-Giant 660T 7-Axis CNC Syncro Press Brake Bending Machine, 20 ft
RMT B-Giant 660T 7-Axis CNC Syncro Press Brake Bending Machine, 20 ft
SKU:PRE-c11971
Enhance productivity with RMT B-Giant 660T CNC Syncro Press Brake Bending Machine. Precision bending for single to quad applications.
Regular price
$129,999.00
Regular price
Sale price
$129,999.00
Unit price
per
Initiate Order
RMT B-Giant 660T 7-Axis CNC Syncro Press Brake Bending Machine, 20 ft
$129,999.00
Quantity: 1
Claim Your Seller Account
RMT B-Giant 660T 7-Axis CNC Syncro Press Brake Bending Machine, 20 ft
$129,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT B-Giant 660T 7-Axis CNC Syncro Press Brake Bending Machine is a powerful solution for high-tonnage bending needs. With a bending force of 660 tons and a 20 ft bending length, this machine offers precision and efficiency for single, tandem, trio, or quad applications. Its advanced features include programmable ram speeds, a versatile back gauge system, and customizable options for tailored performance. Enhance productivity, reduce costs, and ensure high-quality parts with RMT's innovative press brake technology.
Product Specifications
Additional Information
Standard 7 Axis CNC Available 14+ Axis14' - 20' Bending Lengths/660 - 4000 TonsSingle/Tandem/Trio/Quad ApplicationsRMT provides the latest technology in "large format" bending and automation for your big application press brake requirements. The B-GIANT Series combines high tonnage press brakes with automated material handling, providing a turnkey solution.
Back Gauge System 3rd Gaugeable Finger Position Programmable
49 in
Back Gauge System Maximum R Axis Speed Computer Numerical Contro
1 to 189 in/min
Back Gauge System Number Of Back Gauge Finger Block
4 Pieces
Back Gauge System R Axis Travel Computer Numerical Control Cnc S
10 in
Back Gauge System X Axis Speed Programmable
1 to 709 in/min
Back Gauge System X Axis Travel Programmable
39 in
Benefits
Flexibility of bending for diversified usesAccuracy for large and high spring-back sheetsFaster set-up times with automatic loading and unloading of materialsImproved safety for employeesUsing advanced technologies for bending large sheet metal can, in some applications, reduce the need for long, expensive welding operations. This not only saves money, it reduces negative impact on material stability that can occur during welding.What better benefit can a machine provide than adding to your bottom line. RMT press brakes do this by helping you produce higher quality parts faster than ever and all with lower operating and maintenance costs. RMT has a press brake to match your needs and budget whether your application requires bending complex parts or simple shapes. RMT press brakes have been designed to be precise, reliable, and high performing with easy operation. We have a solution for every manufacturing environment and offer several models of press brakes with multiple features and options. Each of our press brake models have a variety of lengths and tonnages and can be customized to your requirements.All RMT press brakes have been designed for high performance and enhanced with five main innovations to increase your productivity while decreasing your cost per part including: A rigid mono-block frame constructed from mill certified high-yield steel for dependable performance;Quality precision ram positioning accurate to within 0.0004 inch provided by dual cylinders and rams for stable ram motion;A deeper throat allows you to use the full length of the machine to form more parts;The increased daylight opening accommodates a larger range of parts;More stroke length which provides additional flexibility and versatility.
Machine Dimensions Machine Height
163 in
Machine Dimensions Machine Length
283 in
Machine Dimensions Machine Width
94 in
Note
2200+ tons bending force and 26+ ft bending length please consult your dealer or RMT representative.Specifications subject to verification. Due to ongoing product development, machine specifications can change at any time.
Ram Speeds Programmable Decompression Speed
0 to 24 in/min
Ram Speeds Programmable Y Axis Approach Speed
0 to 213 in/min
Ram Speeds Programmable Y Axis Forming Speed
0 to 19 in/min
Ram Speeds Programmable Y Axis Return Speed
20 to 166 in/min
Specifications Application
Single/Tandem/Trio/Quad Applications
Specifications Type
Press Brake
Standard Machine Characteristics Bed Height F
41.3 in
Standard Machine Characteristics Bending Force
660 Tons
Standard Machine Characteristics Bending Length A
20 ft
Standard Machine Characteristics Daylight D
24.4 in
Standard Machine Characteristics Depth Of Pit P1
14.6 in
Standard Machine Characteristics Depth Of Pit P2
45.3 in
Standard Machine Characteristics Distance Between Frames B
16 ft 8 in.
Standard Machine Characteristics Length Of Ram Stroke C
15.2 in
Standard Machine Characteristics Motor Power
60 hp
Standard Machine Characteristics Number Of Sliding Front Support
4 Pieces
Standard Machine Characteristics Oil Tank Capacity
132 gal
Standard Machine Characteristics Optional Bed Cap Width G2
19.7 in
Standard Machine Characteristics Standard Bed Cap Width G1
12 in
Standard Machine Characteristics Throat Depth E
20.1 in
