RMT B-SMART 10-2S0 CNC Syncro Press Brake Bending Machine - 250 Tons
RMT B-SMART 10-2S0 CNC Syncro Press Brake Bending Machine - 250 Tons
SKU:PRE-4a5a50
RMT B-SMART 10-2S0 CNC Syncro Press Brake - High-performance bending machine for precise results and cost-effective production.
Regular price
$69,999.99
Regular price
Sale price
$69,999.99
Unit price
per
Initiate Order
RMT B-SMART 10-2S0 CNC Syncro Press Brake Bending Machine - 250 Tons
$69,999.99
Quantity: 1
Claim Your Seller Account
RMT B-SMART 10-2S0 CNC Syncro Press Brake Bending Machine - 250 Tons
$69,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

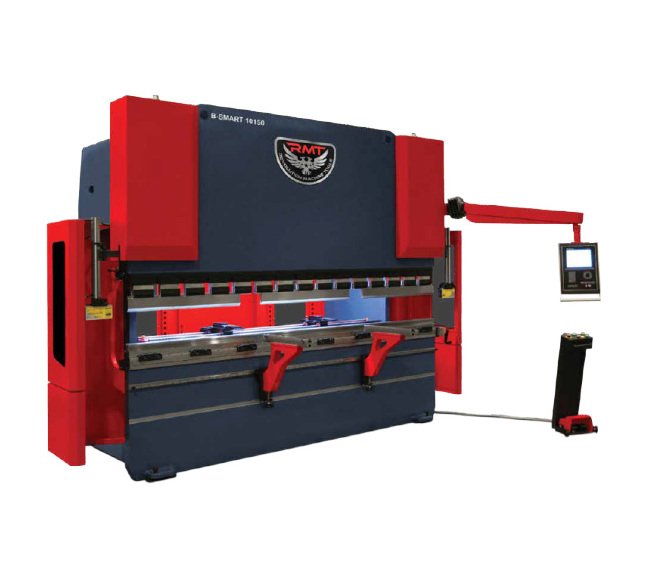

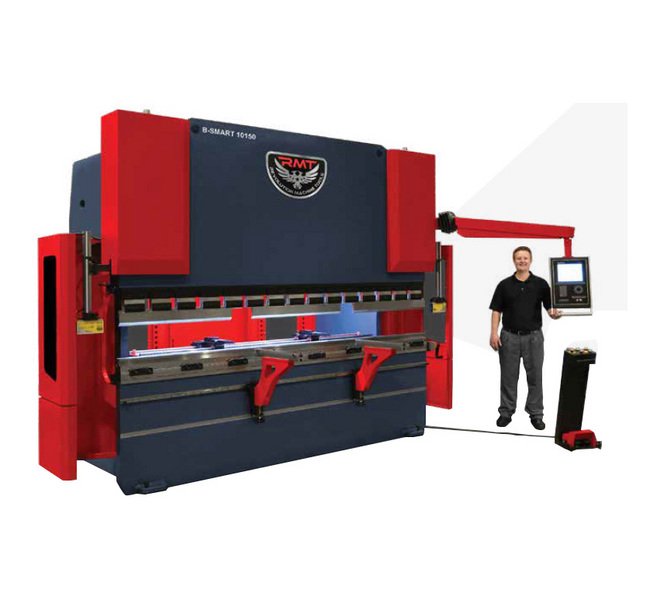

The RMT B-SMART 10-2S0 CNC Syncro Press Brake is a top performer in the B-SMART Series, offering a bending force of 250 tons. Constructed with precision and durability in mind, this machine features Y1 & Y2 technology for high-speed operation. With user-friendly CNC controls, motor power of 25 hp, and a range of optional features available, this press brake ensures precise bending results and exceptional value. It is designed to enhance productivity, lower operating costs, and provide a reliable solution for bending complex parts or simple shapes.
Product Specifications
Additional Information
Tough construction with the same solid framework we use for all of our RMT Press BrakesLarge daylight opening allows the entire length of the machine to be put to optimal useDesigned and built with the objective to help you achieve low cost manufacturingStandard 3-Axis X, Y1, Y2 and manually adjustable R1, R2, Z1, Z2Standard 3-Axis CNC (Y1,Y2,X) up to 5-Axis 6' - 20' Bending Lengths/70-660 Tons Tandem-Trio-Quad Applications (for example, 2 x 20' = 40' bending capability) Flush Floor Press Brakes to 20' x 660 TonThe B-SMART Series press brakes have larger daylight, throat depth and stroke for more cost effective production and versatility.
Back Gauge System 3rd Gaugeable Finger Position Programmable
41.7 in
Back Gauge System Maximum R Axis Speed Standard
5 to 378 in/min
Back Gauge System Number Of Back Gauge Finger Block
2 Pieces
Back Gauge System R Axis Travel Standard
10.2 in
Back Gauge System X Axis Speed Programmable
5 to 1890 in/min
Back Gauge System X Axis Travel Programmable
32.3 in
Benefits
What better benefit can a machine provide than adding to your bottom line. RMT press brakes do this by helping you produce higher quality parts faster than ever and all with lower operating and maintenance costs. RMT has a press brake to match your needs and budget whether your application requires bending complex parts or simple shapes. RMT press brakes have been designed to be precise, reliable, and high performing with easy operation. We have a solution for every manufacturing environment and offer several models of press brakes with multiple features and options. Each of our press brake models have a variety of lengths and tonnages and can be customized to your requirements.All RMT press brakes have been designed for high performance and enhanced with five main innovations to increase your productivity while decreasing your cost per part including: A rigid mono-block frame constructed from mill certified high-yield steel for dependable performance;Quality precision ram positioning accurate to within 0.0004 inch provided by dual cylinders and rams for stable ram motion;A deeper throat allows you to use the full length of the machine to form more parts;The increased daylight opening accommodates a larger range of parts;More stroke length which provides additional flexibility and versatility.
Machine Dimensions Machine Height
112 in
Machine Dimensions Machine Length
179 in
Machine Dimensions Machine Width
89 in
Note
Optional: Extra daylight, stroke, throat depths available.Specifications subject to verification. Due to ongoing product development, machine specifications can change at any time.
Optional Features
CNC R-AxisDelem DA-56S CNC control unit with 2D graphicsSafety laser with SICK C 4000 (only for tandem)Steel protective coversAdaptive bending sensorsTop tool American or EuropeanBottom tool American or EuropeanHydraulic tooling clamping systemsQuick release clampingUniversal die blocksCNC controlled motorized crowningExtended back gauge stroke & back protection with light barrierOil coolantVery reasonable tooling packages available (multi-V tooling)Additional finger blocksAdditional sliding front armsProfile-W off-line softwareTandem configuration
Ram Speeds Programmable Decompression Speed
0 to 20 in/min
Ram Speeds Programmable Y Axis Approach Speed
57 to 283 in/min
Ram Speeds Programmable Y Axis Forming Speed
0 to 20 in/min
Ram Speeds Programmable Y Axis Return Speed
85 to 425 in/min
Specifications Approximate Weight
25,300 lb
Specifications Type
Press Brake
Standard Features
3-Axis CNC:Y1, Y2 precision ram positioningX-Axis Back GaugeLarge trio of value:Large open heightLarge strokeLarge throat depthBack Gauge - motorized & linear guide & ball bearing systemBack Gauge Fingers - height adjustableSafety laser with manual F. AKAS II M-FPSC-B-CSafety covers with switchDelem DA-52S CNC control unitManual crowningClamping:American/European section-style box punch clampsAmerican-only style punch clamp available at no chargeQuick-set sliding front sheet support arms with full-length linear guide, tilting stop and T-slot (front gauge squaring, etc.)Adjustable height suspension control unit armProtective covers (side and rear safety doors)Rear work lightWorld-class hydraulic and electronic components that are easily replaceable (parts stocked by us or available off-the-shelf from your local supplier):Hydraulic blocks and valves (Hoerbiger)Electronics system (Siemens, Schneider, Mitsubishi)High-yield plate constructionHydraulic Oil (up to 250 Ton machines)

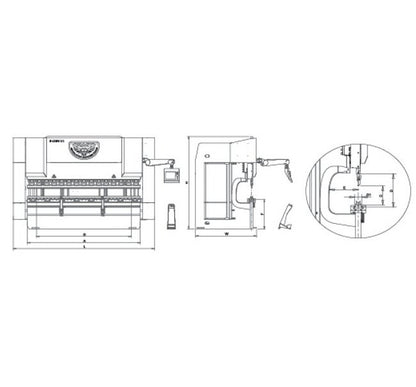

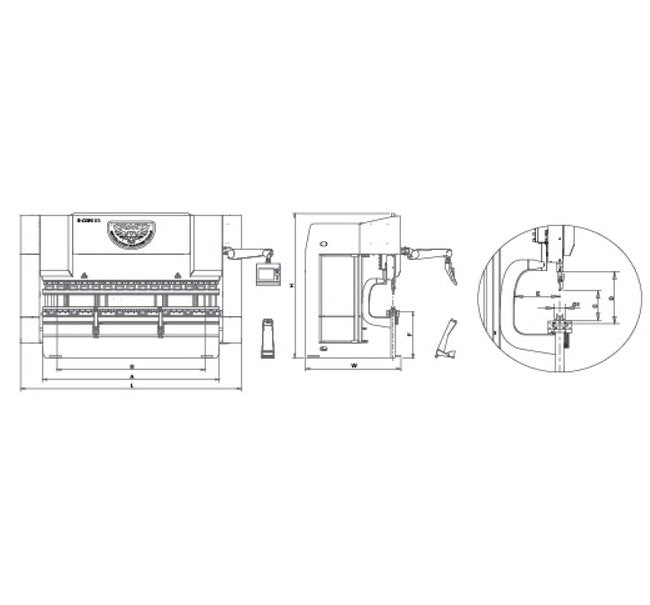

Standard Machine Characteristics Bed Height F
35.4 in
Standard Machine Characteristics Bending Force
250 Tons
Standard Machine Characteristics Bending Length A
10 ft 2 in.
Standard Machine Characteristics Daylight D
20.9 in
Standard Machine Characteristics Distance Between Frames B
8 ft 6 in.
Standard Machine Characteristics Length Of Ram Stroke C
11 in
Standard Machine Characteristics Motor Power
25 hp
Standard Machine Characteristics Number Of Sliding Front Support
2 Pieces
Standard Machine Characteristics Oil Tank Capacity
79 gal
Standard Machine Characteristics Optional Bed Cap Width G2
10 in
Standard Machine Characteristics Standard Bed Cap Width G1
4 in
Standard Machine Characteristics Throat Depth E
16.1 in
