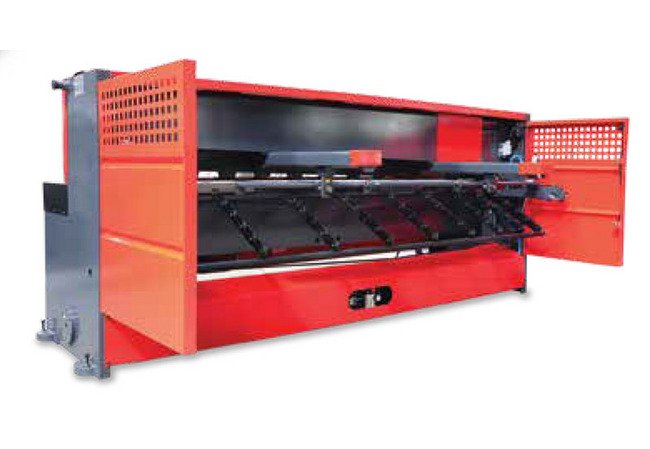

The RMT C-FAB 5M188 NC is a high-performance mechanical shearing machine designed for precision cutting of various materials including steel, stainless steel, galvanized, aluminum, brass, and copper. This machine features a robust welded steel construction, RMT Easy NC Touch Screen Controller, programmable backgauge steps, durable D2 cutting blades, integrated table with ball transfers, and a lighted work area for enhanced visibility. With optional features like NC ball screw backgauge and pneumatic sheet support system, the C-FAB 5M188 NC offers versatile cutting solutions for industrial applications. Compliant with industry standards and equipped with advanced features, this shearing machine ensures efficiency, accuracy, and ease of use for both consumer and institutional buyers.
Product Specifications
Optional Features
NC ball screw backgauge with 39.4" travelPneumatic sheet support system with both front and rear sheared drop function on all machines up to 10' width. Pneumatic sheet support system with rear material drop function on 12' shears0-180 degree protractor(Deduct) Front operated manual ball screw backgauge with mechanical distance counter (this is a deduction from standard sheer configuration)Brush table supportsLonger squaring arm - per 40"Longer front sheet support arms - per 40"Spare blade setLaser cut line
Specifications Back Gauge Distance
29.5 in
Specifications Construction Material
Welded Steel
Specifications Cutting Capacity Mild Steel
0.188 in
Specifications Cutting Capacity Stainless Steel
10 gauge
Specifications Height
4 ft 7 in.
Specifications Length
7 ft 6 in.
Specifications Maximum Cutting Length
5 ft 1 in.
Specifications Motor Power
10 hp
Specifications Phase
3
Specifications Series
C-FAB
Specifications Speed
35 strokes/min
Specifications Table Height
35 in
Specifications Table Width
21 in
Specifications Voltage
208 V | 460 V
Specifications Weight
5511 lb
Specifications Width
7 ft 5 in.
Standard Features

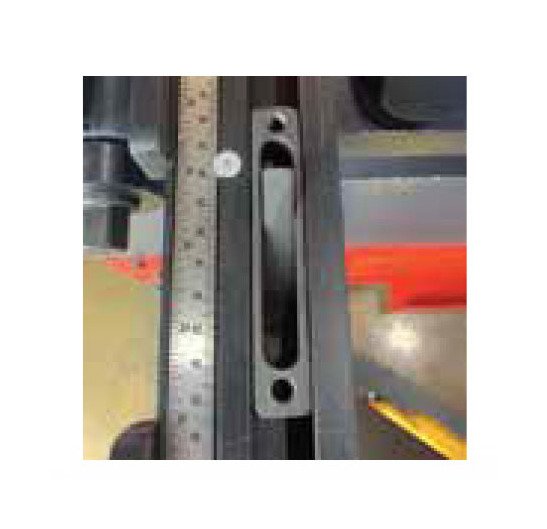

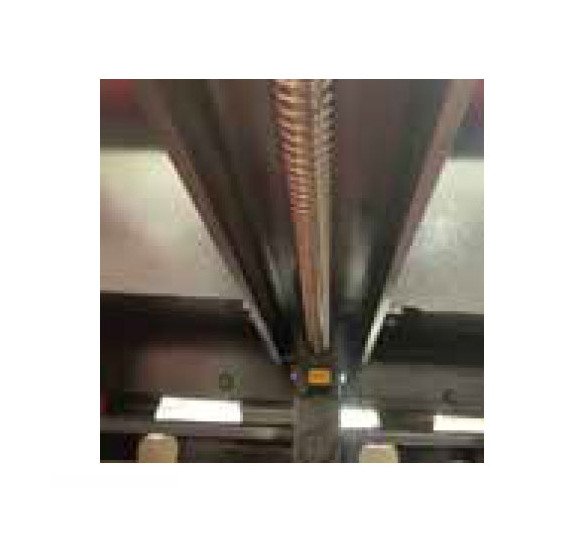

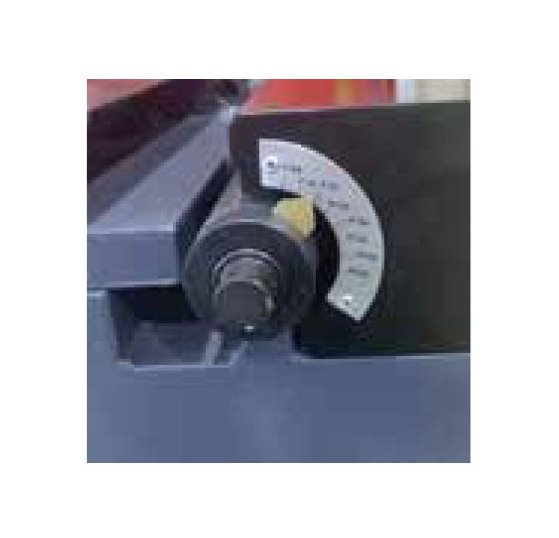

Welded steel constructionRMT Easy NC Touch Screen ControllerCut counterEasy go to backgauge depth with digital position readoutProgrammable multiple backgauge stepsSingle or continuous cycle toggleEasy inch/metric toggleHigh carbon/high chrome D2 cutting blades. Suitable for cutting steel, stainless, galvanized, aluminum, brass and copper (upper blade has 2 cutting edges, bottom blade has 4 cutting edges)Integrated table with built in ball transfersCutting beam working in perfectly sliding, durable Polytetrafluoroethylene (PTFE) slidewaysMovable foot pedalEasy maintenance clutch systemEasy blade gap adjustment in front40" T-slot squaring arm with flip stop and built in inch/metric scale40" front support armsMechanical sheet clamping system with hard rubber non-marring hol-down padLighted work area with integrated shadow/cut line29.5" travel precision hardened and ground ball screw backgauge
