RMT COMPACT SERVER 510 Full Automatic Sheet Loading and Unloading System
RMT COMPACT SERVER 510 Full Automatic Sheet Loading and Unloading System
Revolutionize your metal sheet handling with the RMT COMPACT SERVER 510: reliable, flexible, and efficient.
Regular price
$23,999.00
Regular price
Sale price
$23,999.00
Unit price
per
Initiate Order
RMT COMPACT SERVER 510 Full Automatic Sheet Loading and Unloading System
$23,999.00
Quantity: 1
Claim Your Seller Account
RMT COMPACT SERVER 510 Full Automatic Sheet Loading and Unloading System
$23,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

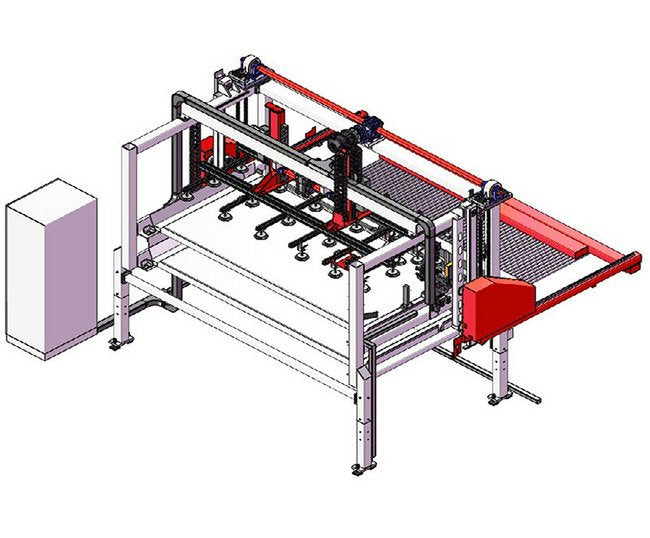

The RMT COMPACT SERVER 510 is a top-of-the-line sheet loading and unloading system designed for the seamless management of metal sheets in 2D laser machines. With unparalleled reliability, flexibility, and ease of use, this system revolutionizes unmanned loading and unloading processes. Featuring advanced technology from RMT, it boasts a robust construction and precise specifications to meet the demands of industrial settings. The system's intelligent design ensures optimized workflow efficiency and maximum productivity, making it an ideal choice for both consumer and institutional buyers seeking cutting-edge sheet handling solutions.
Product Specifications
Specifications Electric Power Installed
21 hp
Specifications Electric Power Installed Tolerance
10 %
Specifications Electric Voltage
460 V
Specifications Electric Voltage Tolerance
10 %
Specifications Frequency
60 Hz
Specifications Frequency Tolerance
10 %
Specifications Maximum Current Absorption
32 A

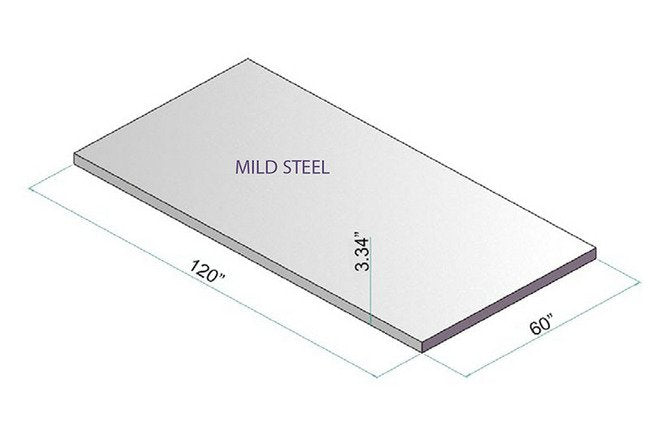

Specifications Maximum Dimension
120 x 60 x 0.75 in
Specifications Maximum Height Stack Of Sheet
4 in
Specifications Maximum Weight Stack
6613 lb
Specifications Minimum Dimension
40 x 40 x 0.020 in
Specifications Number Of Pallets
2
Specifications Overall Dimensions With Safety Fences
211 × 166 in
Specifications Overall Height H
154 in
Specifications Phase
3
Specifications Short Circuit Current
10 kA
Specifications Total System Weight
10,372 lb
