RMT DELEM DA-58T 15-inch TFT Control System
RMT DELEM DA-58T 15-inch TFT Control System
SKU:PRE-0ffaa4
Optimize press brake operations with RMT DELEM DA-58T 15-inch TFT Control System's advanced features for precise bending sequences.
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Initiate Order
RMT DELEM DA-58T 15-inch TFT Control System
$3,500.00
Quantity: 1
Claim Your Seller Account
RMT DELEM DA-58T 15-inch TFT Control System
$3,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

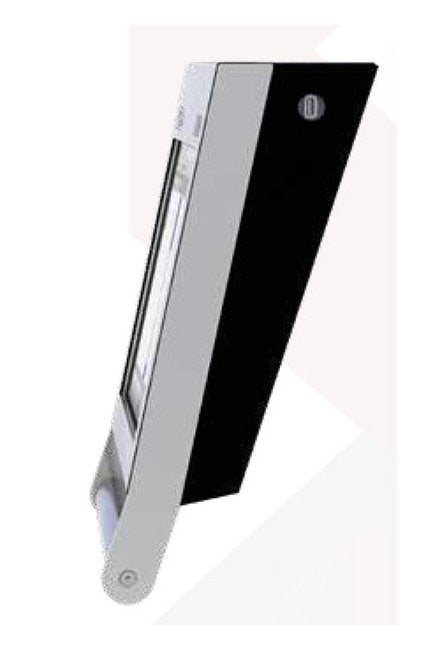

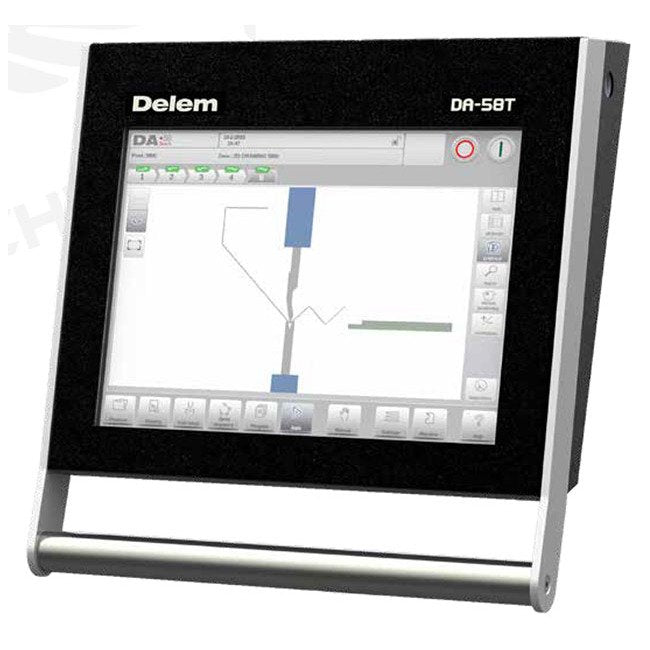

The RMT DELEM DA-58T 15-inch Thin Film Transistor Display Control System from the DELEM Series empowers precise CNC programming with advanced features like 2D graphical programming, bend sequence determination, and developed length calculation. Combining intuitive user interface with industrial-grade touch screen, this system reduces machine adjustment time, enhances productivity, and ensures accurate bend sequences. With 1GB memory capacity, 500MHz processor frequency, and innovative control algorithms, it offers seamless operation for press brake applications.
Product Specifications
Additional Information
The basic machine control functions are Y1-Y2 and X Axis. A second back gauge axis can be used as R/Z or X2 Axis. Also the crowning function is standard.
Computed
Tooling safety zonesPress forceBend allowanceCrowning adjustmentBottoming forceAngle correction databaseDeveloped lengthAuto bumping calculation
Features Of Control Unit
2D graphical programmingBend sequence determinationDeveloped length calculationCrowning controlUSB peripheral interfacingServo, frequency inverter and AC controlAdvanced Y-Axis control algorithms for closed-loop as well as open-loop valves.
Programming
7 digit program number20 character drawing numberStock counter (up to 9999)Step repetition (up to 99)Millimeter / InchProgrammable axis speed per stepProgrammable material properties2D product programming and visualizationGraphical bend sequence determinationFast collision checkFree programmable toolsGraphical tool programmingRadius programming (bumping)
Specifications Back Light
Light Emitting Diode (LED)
Specifications Color Display Type
Liquid Crystal Display (LCD)
Specifications Memory Capacity
1 GB
Specifications Number Of Dies
60
Specifications Number Of Punches
30
Specifications Processor Frequency
500 MHz
Specifications Screen Resolution
1024 x 768 px
Specifications Thin Film Transistor Tft Color Display Size
15 in
Standard Features
Synchronized / conventional press brake controlIndustrial grade touch screenTool libraryData backup / restore via USBPower-down memorizationIntegrated valve amplifier
