RMT F-FAB 12ft Bending Machine
RMT F-FAB 12ft Bending Machine
SKU:AIR-0c34da
Experience precision and power with the RMT F-FAB 12ft Bending Machine. Ideal for aerospace panel bending.
Regular price
$23,999.99
Regular price
Sale price
$23,999.99
Unit price
per
Initiate Order
RMT F-FAB 12ft Bending Machine
$23,999.99
Quantity: 1
Claim Your Seller Account
RMT F-FAB 12ft Bending Machine
$23,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

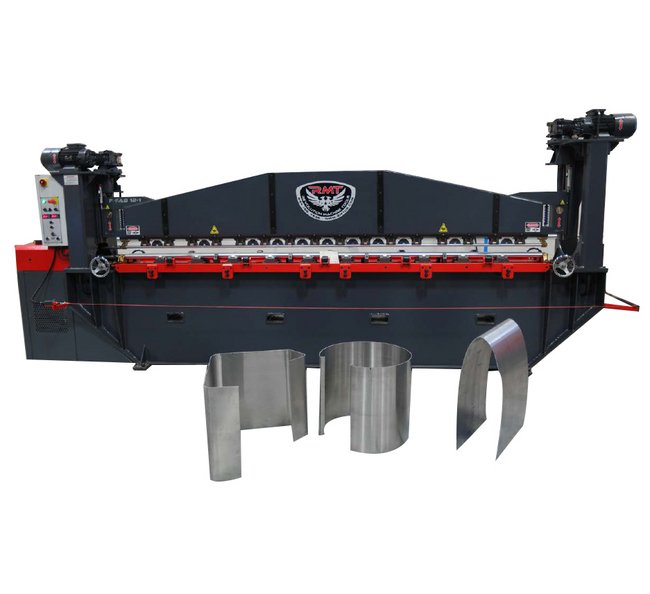

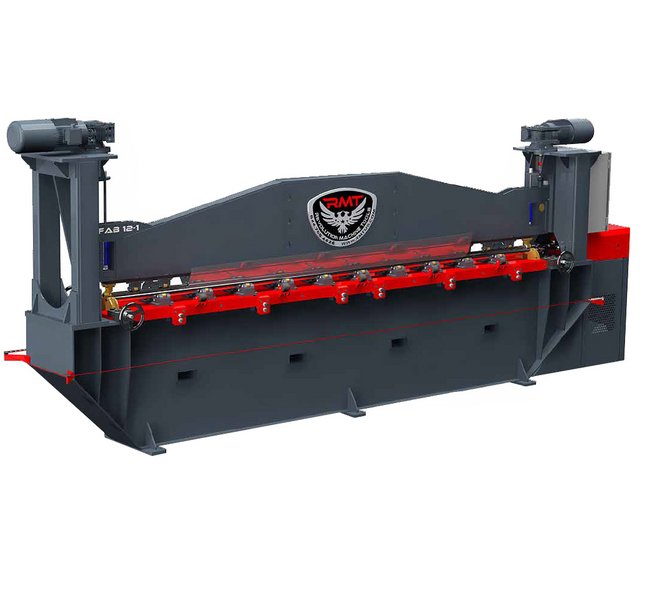

The RMT F-FAB 12ft Bending Machine from the F-FAB Series is a powerhouse in aircraft panel and edge bending. Equipped with a 6.0 hp motor, this machine offers exceptional bending capacities for various materials including aluminum and titanium alloys. Designed with precision and durability in mind, this machine features dual speed motors, induction-hardened rolls, and innovative technology to ensure superior performance. Ideal for aerospace industry needs, the RMT F-FAB bending machine delivers speed, accuracy, and reliability for intricate bending projects.
Product Specifications
Advantages

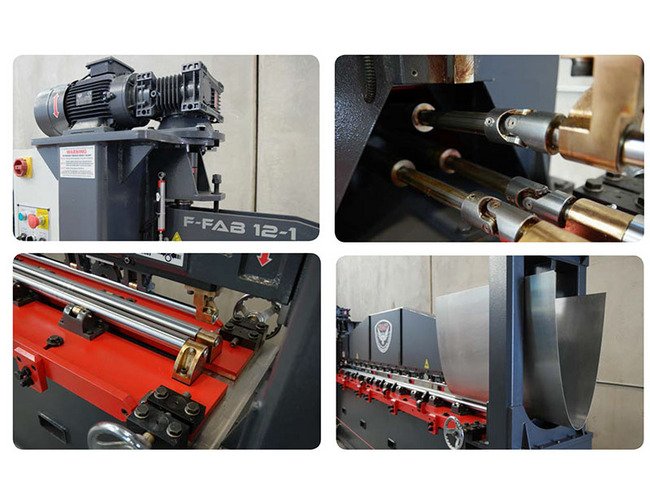

The movement of the upper beam is powered by separate dual speed AC motors, gearboxes, screw jacks and zero backlash couplings. Upper beam positions are monitored by very sensitive linear encoders and digital readouts.Top and bottom rolls are driven by a high torque dual speed AC motor and gear set. Gearbox rotation transferred to the rolls by sensitive cardan joints. The strong magnetic disk brakes prevent the sheet from sliding back during pre-bending operation.If you have ever tried to form relatively thin titanium, then you know exactly how flexible and elastic it is. Overcoming the ultra high yield point to allow the material to take on the new shape you need requires not only special knowledge, but special machinery that takes into consideration the challenges that such materials bring to the table. RMT Rolls are all designed to perform with a wide range of materials to suit each customer's need.
Bending Capacities Aluminum 5754 H22 Capacities T
14 gauge
Bending Capacities Aluminum 6061 T6 Capacities T
16 gauge
Bending Capacities Mild Steel Capacities T
16 gauge
Bending Capacities Titanium 6242 Capacities T
20 gauge

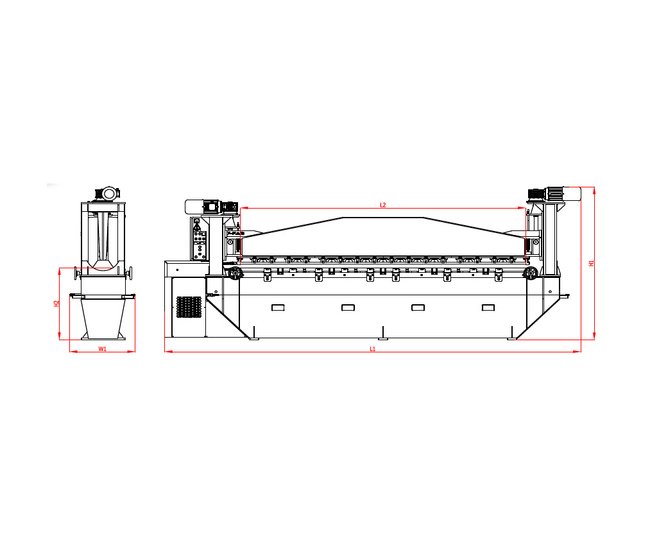

Dimensions Height H1
84 in
Dimensions Length L1
211 in
Dimensions Width W1
34 in
Need Multi Radius Bending

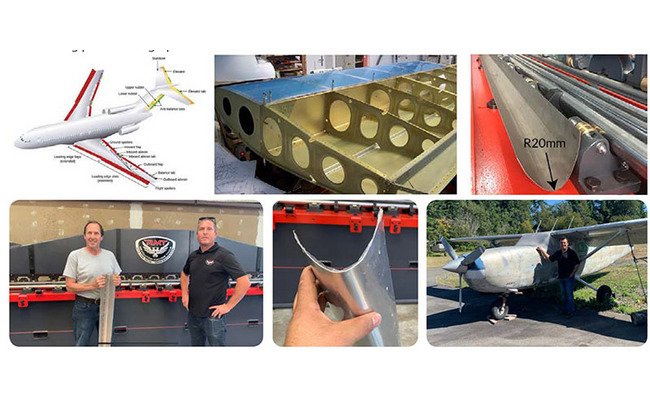

As with all RMT designs, these special rolls are designed and engineered here in the USA. Built with quality components and extremely intelligent design, these rolls are built to last decades.No other machines match the speed, simplicity and precision for the aviation industry as the RMT F-Fab Series machines. These machines bend aluminum or titanium alloyed sheets even with one or more radius, including hyperbolic shapes, to get precise cylindrical or tapered forms. The RMT R&D teams experience and expertise can even help create custom machines to solve any problem specific to your project.There was a time when several companies fought over the aircraft and aerospace industry in forming leading edge's, helicopter propellers, and other special projects. Almost all of those companies are gone now and their used machines are very difficult to find.RMT F-Fab series rolls have filled the need and brought back with even more unique features the machine that makes these difficult parts, simple again.
Note
Larger machines available, please contact with us.All specifications are subject to change without notice.Weight and motor powers optionally goes higher levels with additional features.Due to ongoing product development, specifications may change at any time.Larger or Custom Machines Available
Optional Features
NC Control UnitMotorized bottom rollsMotorized and NC controlled bottom rollsAll axis positioning with adjustable speed on NC machinesHydraulic side support system (both sides)Material feeding table (Idle or motorized)Automatic central lubricationAutomation systems
Specifications Bending Length L2
12 ft
Specifications Lower Roll Diameter
1-3/4 in
Specifications Maximum Pass Through A
2 in
Specifications Motor Power
6.0 hp
Specifications Upper Roll Diameter D
1 in
Specifications Weight
6,600 lb
Specifications Working Height H2
39 in
Standard Features
Digital readoutDual speedInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls ground and chrome coatedUpper beam is powered by separate dual speed AC motors, gearboxes, screw jacks and zero backlash couplingsMachine body constructed of stress-relieved high yield steelRolls seated in bronze roller bushingsAll rolls driven by AC motor and helical gear box with cardan shaftsEmergency stop wire around the machineElectrical and mechanical protection against overloadsManual lubricationWorld standard electrical components
