RMT H-FAB C-Frame 110 Ton Single Action Press
RMT H-FAB C-Frame 110 Ton Single Action Press
Boost efficiency with the RMT H-FAB 110 Ton Single Action Press. Premium quality with safety features, precise stroke control, and optional upgrades for custom applications.
Regular price
$29,500.00
Regular price
Sale price
$29,500.00
Unit price
per
Initiate Order
RMT H-FAB C-Frame 110 Ton Single Action Press
$29,500.00
Quantity: 1
Claim Your Seller Account
RMT H-FAB C-Frame 110 Ton Single Action Press
$29,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

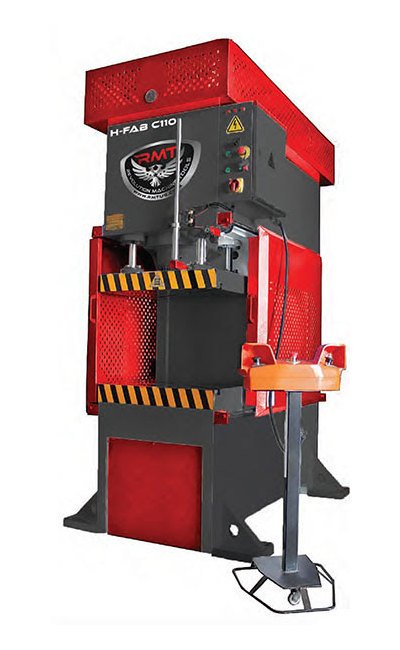

Upgrade your industrial processes with the RMT H-FAB C-Frame 110 Ton Single Action Press. This high-performance press boasts a sturdy C-frame design, a powerful 10 hp motor, and precise stroke control, ensuring efficient and precise operations. With standard features like a chrome-plated cylinder, steel welded frame, and safety cover, this press prioritizes operator safety and durability. Optional HMI touchscreen panel and die sets enhance customization for specific applications. Proudly avoiding Chinese components, this press integrates top-quality German or USA origin parts like Rexroth and Siemens, guaranteeing reliability and compliance with industry standards.
Product Specifications
Dimensions Height
106 in
Dimensions Length
67 in
Dimensions Width
59 in
Note
We do not source any component of our presses from China.
Optional Features
HMI touchscreen panelDie sets
Specifications Capacity
110 US t
Specifications Daylight
24 in
Specifications Down Speed
28 in/min
Specifications Frame Design
C-Frame
Specifications Motor Power
10 hp
Specifications Open Height
8 in
Specifications Pump
9 gal
Specifications Return Speed
43 in/min
Specifications Slide Action
Single Action
Specifications Stroke
16 in
Specifications Weight
11,023 lb
Specifications Working Speed
24 in/min
Standard Features
Chrome plated cylinderSteel welded frameSafety cover and light barrierTwo hand button controlAdjustable pressure by regulatorAdjustable stroke by sensorOil pressure gaugeAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
32 in
Table Size Table Width
20 in
