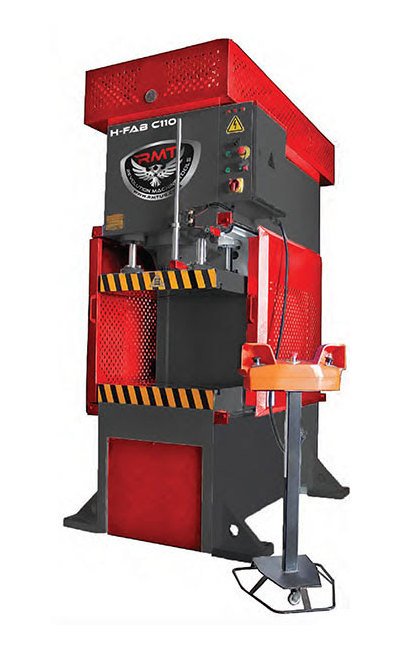

RMT H-FAB C-Frame 66 Ton Single Action Press
RMT H-FAB C-Frame 66 Ton Single Action Press
RMT H-FAB C-Frame 66T Single Action Press - Precision, power, and quality in one machine. Ideal for industrial applications.
Regular price
$15,699.99
Regular price
Sale price
$15,699.99
Unit price
per
Initiate Order
RMT H-FAB C-Frame 66 Ton Single Action Press
$15,699.99
Quantity: 1
Claim Your Seller Account
RMT H-FAB C-Frame 66 Ton Single Action Press
$15,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-FAB C-Frame 66 Ton Single Action Press is a robust and versatile machine designed for precision metalworking applications. Featuring a 66 US ton capacity, 24 inches of daylight, and a 16-inch stroke, this press offers exceptional performance. It comes equipped with standard features such as a chrome-plated cylinder, steel welded frame, safety cover and light barrier, two-hand button control, and adjustable pressure and stroke settings for enhanced customization. With optional HMI touchscreen panel and die sets available, this press caters to diverse manufacturing needs. Proudly sourced from brands like Rexroth, Parker, Schneiders, and Siemens, this press ensures quality and reliability. Perfect for demanding industrial environments.
Product Specifications
Dimensions Height
91 in
Dimensions Length
59 in
Dimensions Width
55 in
Note
We do not source any component of our presses from China.
Optional Features
HMI touchscreen panelDie sets
Specifications Capacity
66 US t
Specifications Daylight
24 in
Specifications Down Speed
28 in/min
Specifications Frame Design
C-Frame
Specifications Motor Power
7.5 hp
Specifications Open Height
8 in
Specifications Pump
3 gal
Specifications Return Speed
50 in/min
Specifications Slide Action
Single Action
Specifications Stroke
16 in
Specifications Weight
5,291 lb
Specifications Working Speed
24 in/min
Standard Features
Chrome plated cylinderSteel welded frameSafety cover and light barrierTwo hand button controlAdjustable pressure by regulatorAdjustable stroke by sensorOil pressure gaugeAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
20 in
Table Size Table Width
20 in
