RMT H-FAB C-Frame Series 33 US t Single Action Press
RMT H-FAB C-Frame Series 33 US t Single Action Press
Enhance productivity with the RMT C-Frame 33 US t Single Action Press - precision, power, and reliability in one machine!
Regular price
$18,500.00
Regular price
Sale price
$18,500.00
Unit price
per
Initiate Order
RMT H-FAB C-Frame Series 33 US t Single Action Press
$18,500.00
Quantity: 1
Claim Your Seller Account
RMT H-FAB C-Frame Series 33 US t Single Action Press
$18,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

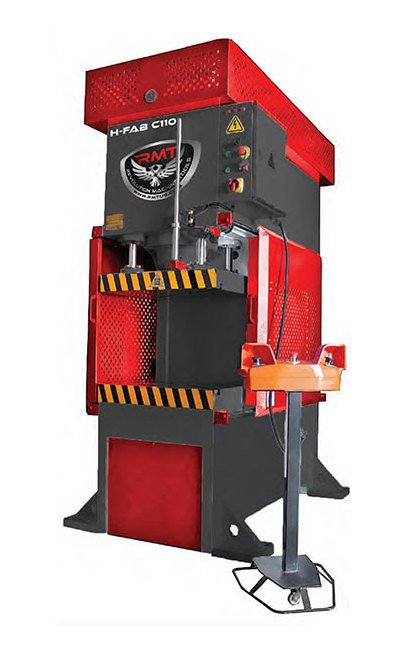

The RMT H-FAB C-Frame Series 33 US ton Single Action Press is a high-precision machine engineered for optimal performance in industrial settings. With a reliable 5 hp motor power and adjustable stroke and pressure controls, this press offers unmatched efficiency and accuracy. It features a robust C-frame design, chrome plated cylinder, safety cover with light barrier, and T-slotted table for versatile operations. Built with quality components from reputable brands like Rexroth and Siemens, this press ensures durability and consistent results. Ideal for metalworking, fabrication, and assembly applications.
Product Specifications
Dimensions Height
91 in
Dimensions Length
59 in
Dimensions Width
55 in
Note
We do not source any component of our presses from China.
Optional Features
HMI touchscreen panelDie sets
Specifications Capacity
33 US t
Specifications Daylight
24 in
Specifications Down Speed
24 in/min
Specifications Frame Design
C-Frame
Specifications Motor Power
5 hp
Specifications Open Height
8 in
Specifications Pump
2 gal
Specifications Return Speed
40 in/min
Specifications Slide Action
Single Action
Specifications Stroke
16 in
Specifications Weight
4,409 lb
Specifications Working Speed
24 in/min
Standard Features
Chrome plated cylinderSteel welded frameSafety cover and light barrierTwo hand button controlAdjustable pressure by regulatorAdjustable stroke by sensorOil pressure gaugeAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
20 in
Table Size Table Width
20 in
