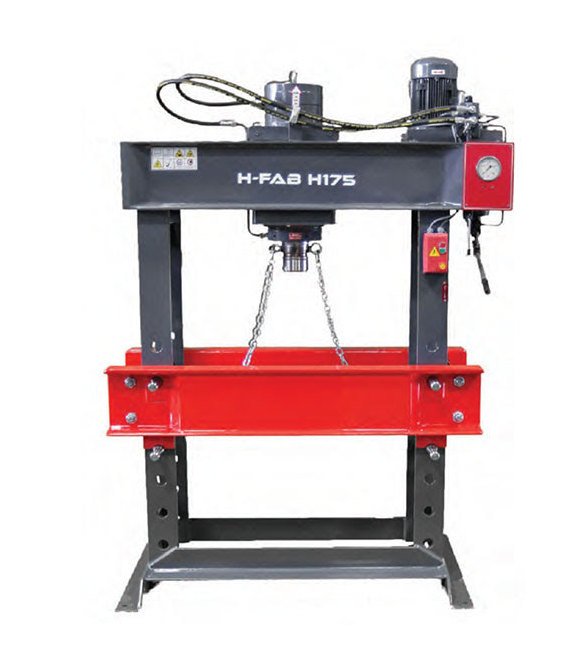

RMT H-FAB H Series 110-Ton Workshop Hydraulic Press
RMT H-FAB H Series 110-Ton Workshop Hydraulic Press
SKU:HFA-613dad
Experience precision and power with the RMT H-FAB H Series 110-Ton Workshop Hydraulic Press. Customizable features for versatile industrial applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT H-FAB H Series 110-Ton Workshop Hydraulic Press
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT H-FAB H Series 110-Ton Workshop Hydraulic Press
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-FAB H Series 110-Ton Workshop Hydraulic Press offers unmatched precision and power for demanding industrial applications. With a robust steel welded frame and a chrome-plated cylinder, this hydraulic press ensures durability and efficiency. Its 5 HP motor power, 16-inch stroke, and two-speed hydraulics provide versatility for various tasks. Equipped with high-quality components from renowned brands like Rexroth and Siemens, this press delivers reliable performance. Customizable options include pressure adjustment, automatic functions, and die sets, meeting diverse operational needs with ease.
Product Specifications

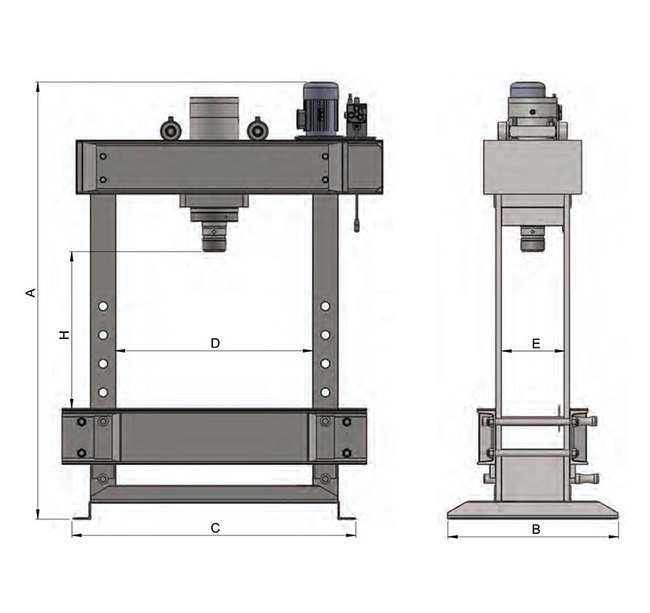

Dimensions Height A
97 in
Dimensions Width
63 in
Note
We do not source any component of our presses from China.
Optional Features
Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
110 US t
Specifications Clear Front D
40 in
Specifications Clear Side E
12 in
Specifications Daylight H
35.4 in
Specifications Down Speed
17 in/min
Specifications Foot Length B
35 in
Specifications Foot Width C
52 in

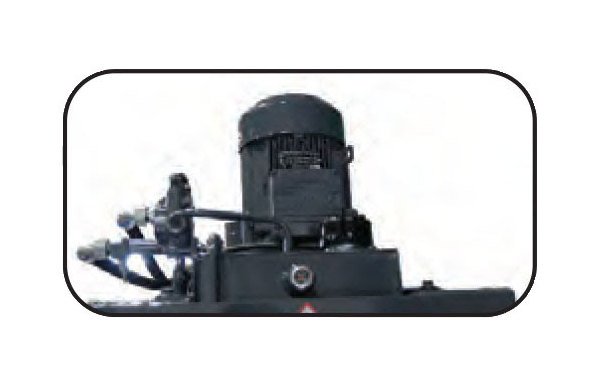

Specifications Motor Power
5 hp
Specifications Phase
3
Specifications Return Speed
32 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
2,205 lb
Standard Features

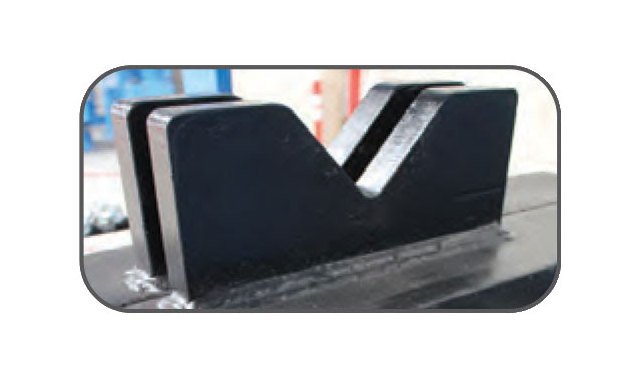

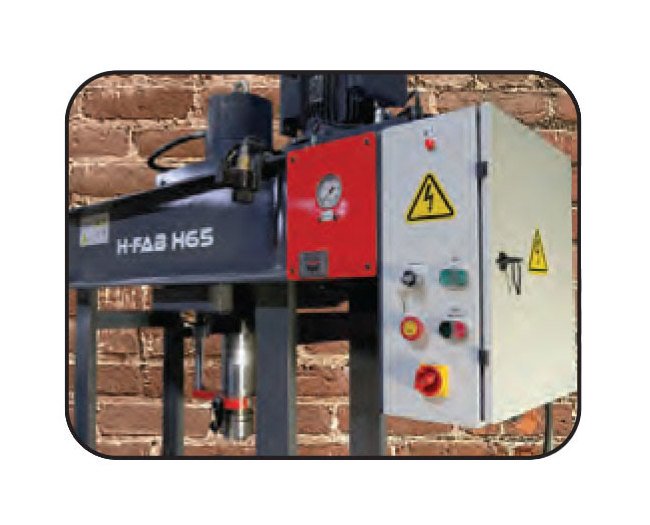

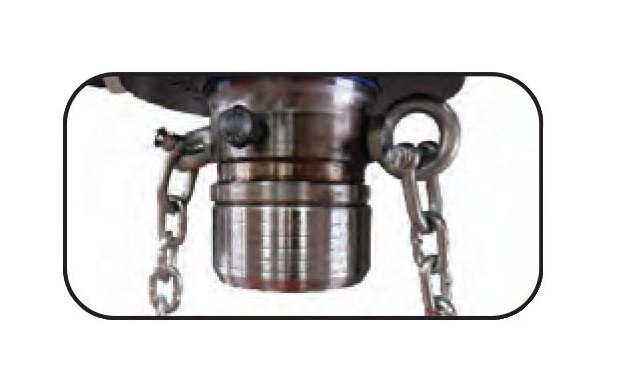

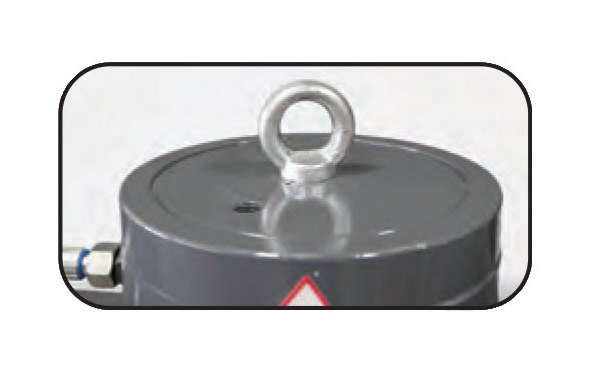

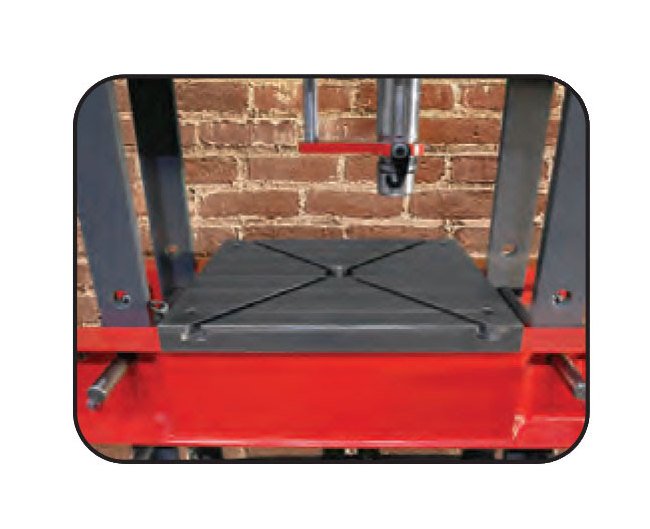

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
