RMT H-FAB H Series 130 Tons Hydraulic Press
RMT H-FAB H Series 130 Tons Hydraulic Press
SKU:HFA-803e0e
Powerful 130-ton hydraulic press with steel frame, chrome plated cylinder, and customizable features for precision pressing tasks.
Regular price
$13,999.99
Regular price
Sale price
$13,999.99
Unit price
per
Initiate Order
RMT H-FAB H Series 130 Tons Hydraulic Press
$13,999.99
Quantity: 1
Claim Your Seller Account
RMT H-FAB H Series 130 Tons Hydraulic Press
$13,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

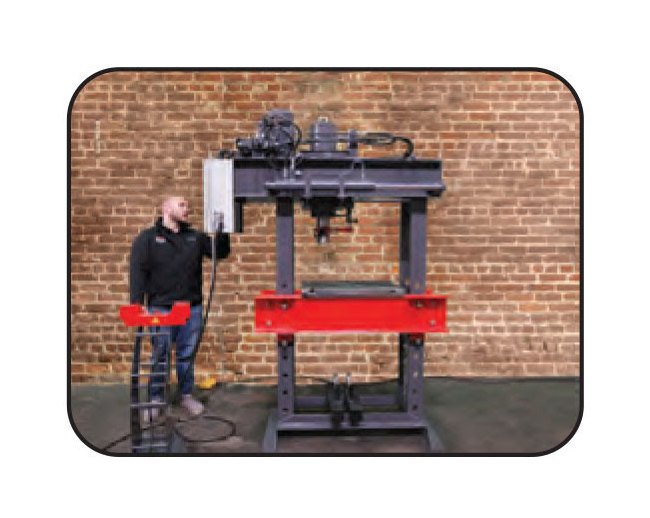

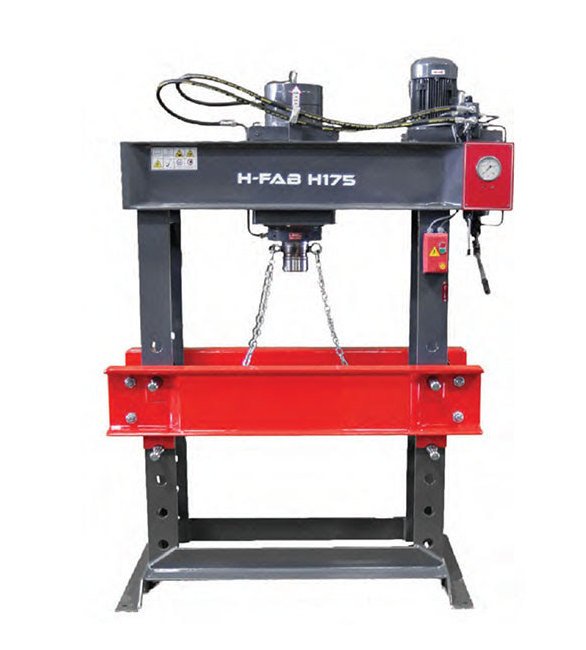

Experience precision and power with the RMT H-FAB H Series 130 Tons Hydraulic Press. This versatile workshop type press offers a capacity of 130 US tons with a clear front of 47 inches and a stroke of 16 inches. Featuring a steel welded frame, chrome plated cylinder, and two-speed hydraulics, this hydraulic press delivers efficiency and durability for a wide range of applications. With optional features like pressure adjustment, die sets, and rolling bolsters, this press can be customized to meet your specific needs.
Product Specifications

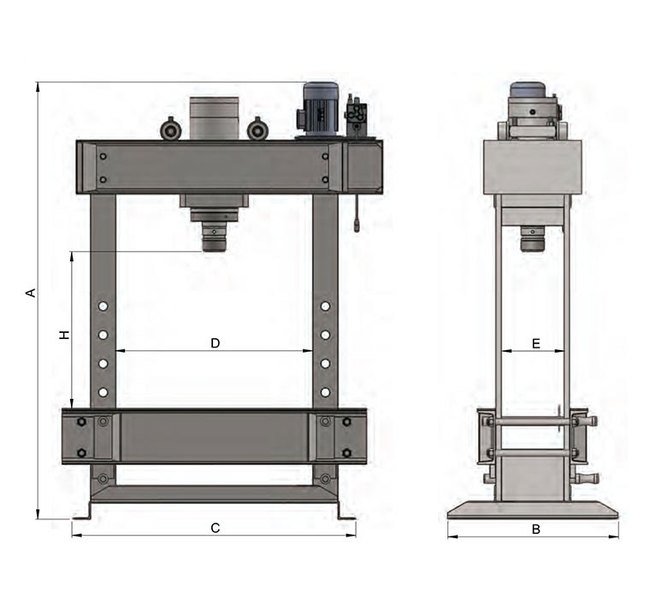

Dimensions Height A
97 in
Dimensions Width
75 in
Note
We do not source any component of our presses from China.
Optional Features
Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
130 US t
Specifications Clear Front D
47 in
Specifications Clear Side E
16 in
Specifications Daylight H
35.4 in
Specifications Down Speed
14 in/min
Specifications Foot Length B
39 in
Specifications Foot Width C
64 in

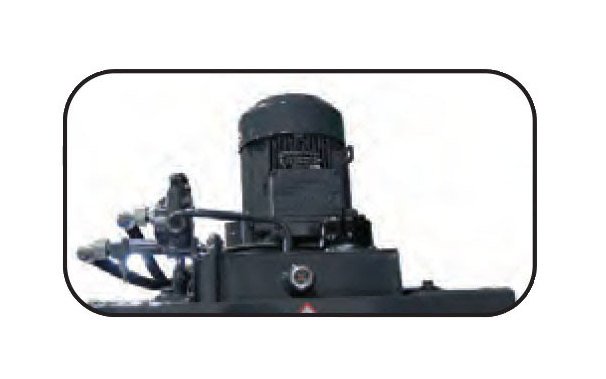

Specifications Motor Power
5 hp
Specifications Phase
3
Specifications Return Speed
23 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
2,756 lb
Standard Features

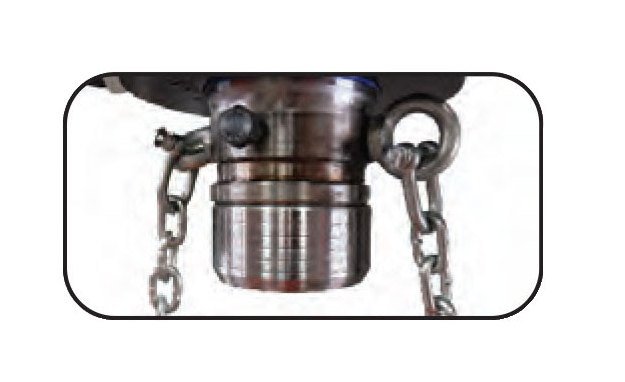

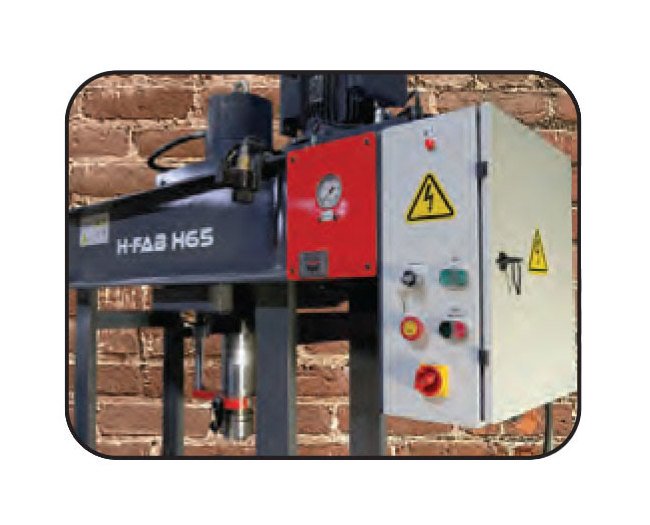

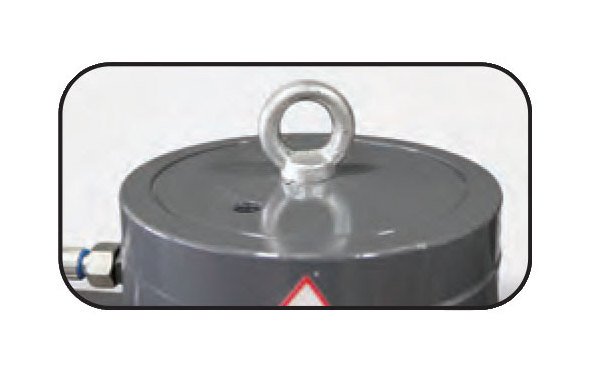

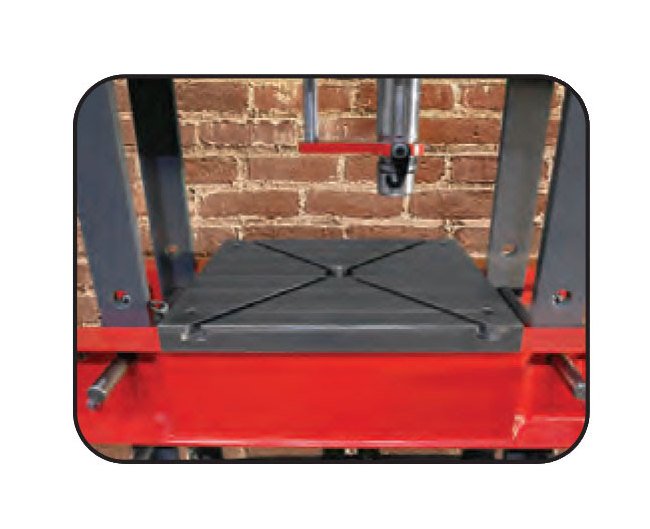

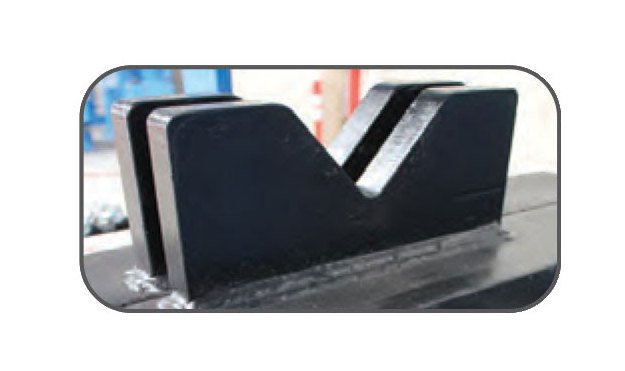

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
