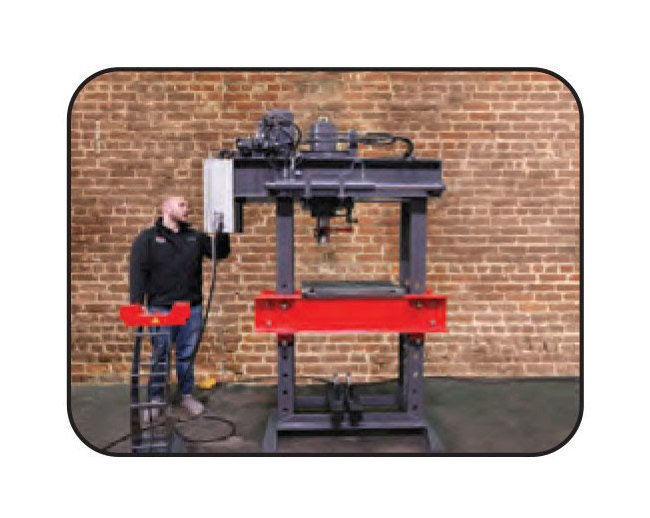

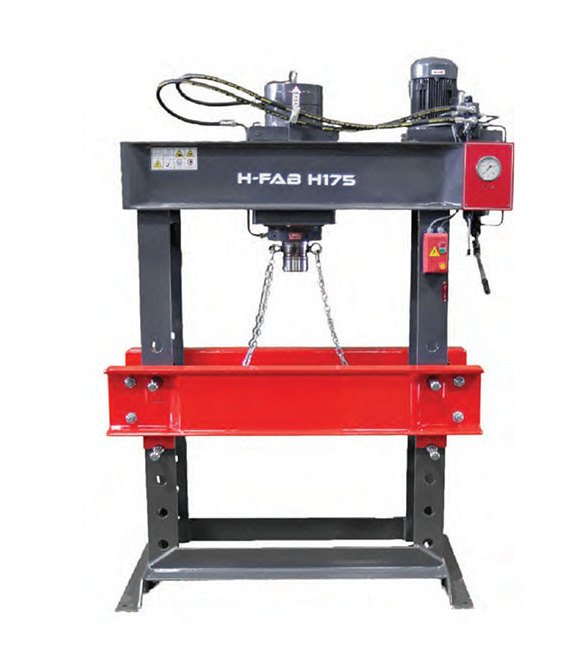

RMT H-FAB H Series 180 Ton Workshop Hydraulic Press
RMT H-FAB H Series 180 Ton Workshop Hydraulic Press
SKU:HFA-206f4a
Enhanced RMT H-FAB H Series 180T Hydraulic Press - Reliable, precise, and built to last. Ideal for industrial workshops.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
RMT H-FAB H Series 180 Ton Workshop Hydraulic Press
$16,999.00
Quantity: 1
Claim Your Seller Account
RMT H-FAB H Series 180 Ton Workshop Hydraulic Press
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-FAB H Series 180 Ton Workshop Hydraulic Press offers exceptional versatility and precision for industrial applications. With a capacity of 180 US tons, this hydraulic press boasts a robust steel welded frame, chrome plated cylinder, and high-performance components sourced from reputable brands like Rexroth and Parker. The machine features a 16-inch stroke, 35.4-inch daylight, and precise pressure adjustment capabilities. Ideal for workshops requiring reliable and efficient pressing solutions, this model ensures superior performance and durability for a wide range of tasks.
Product Specifications

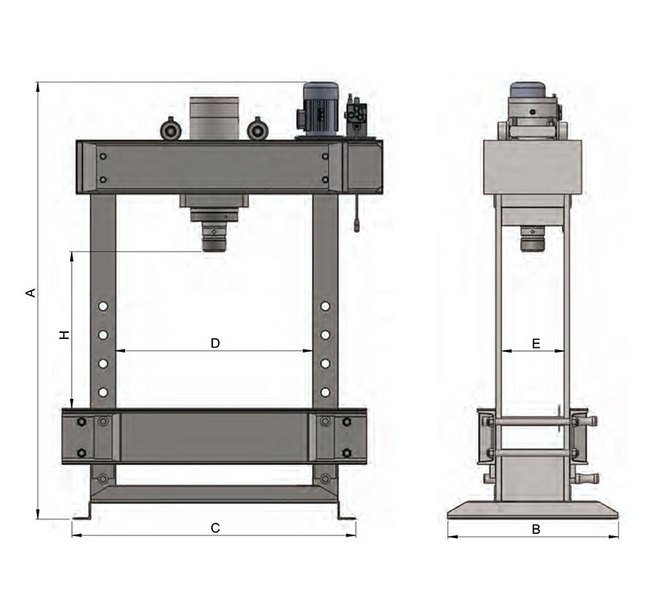

Dimensions Height A
100 in
Dimensions Width
65 in
Note
We do not source any component of our presses from China.
Optional Features

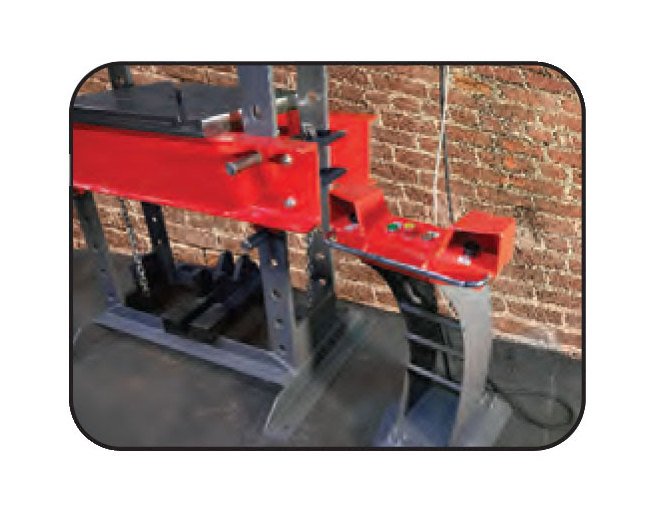

Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
180 US t
Specifications Clear Front D
43 in
Specifications Clear Side E
14 in
Specifications Daylight H
35.4 in
Specifications Down Speed
15 in/min
Specifications Foot Length B
39 in
Specifications Foot Width C
54 in
Specifications Motor Power
7 hp
Specifications Phase
3
Specifications Return Speed
24 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
2,866 lb
Standard Features

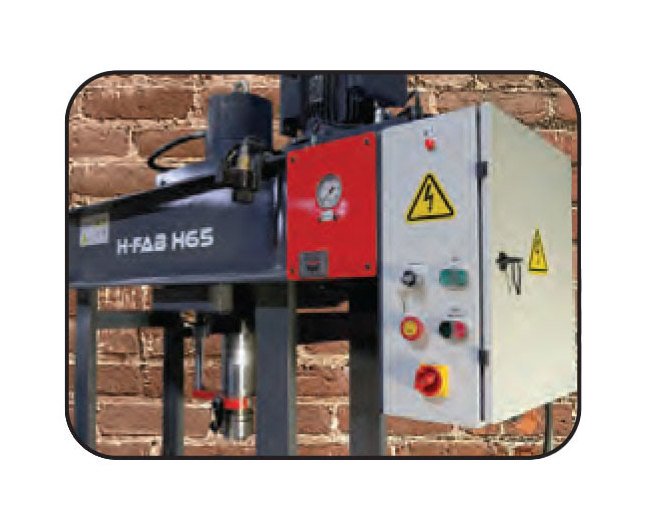

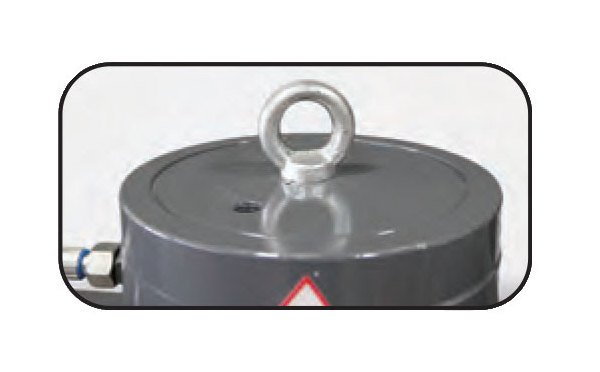

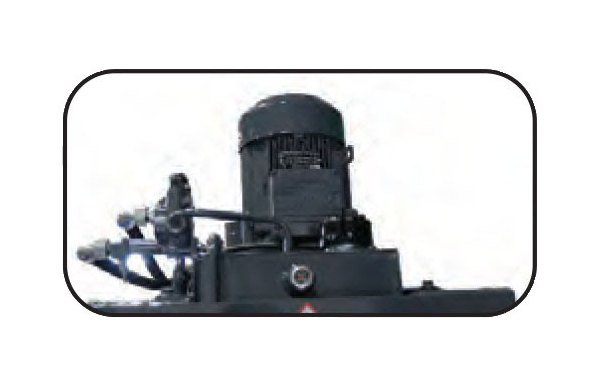

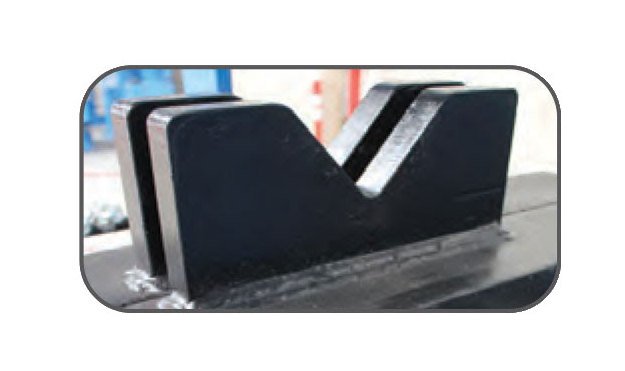

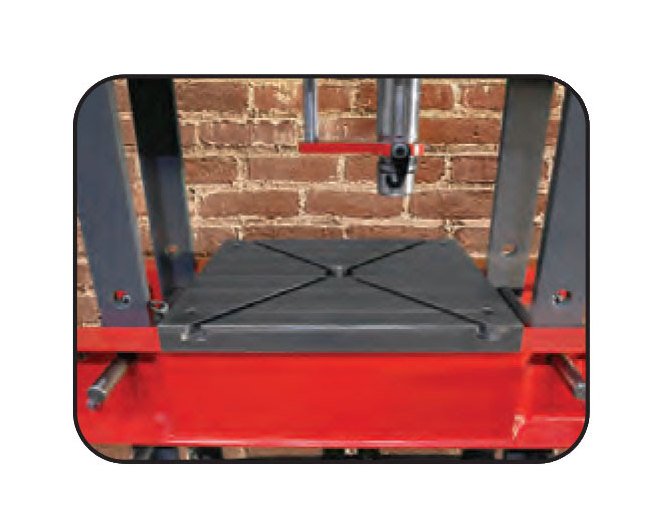

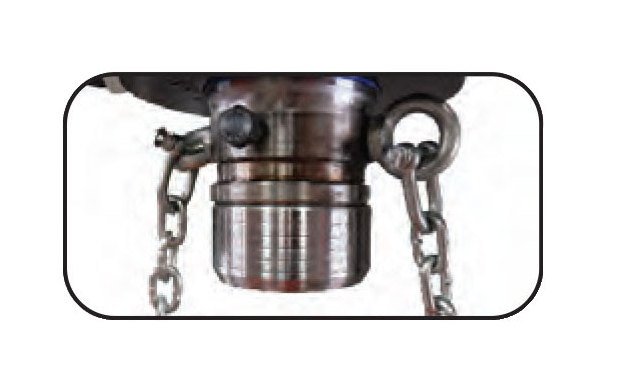

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
