RMT H-FAB H Series 550 US t Capacity Hydraulic Press
RMT H-FAB H Series 550 US t Capacity Hydraulic Press
SKU:HFA-a1111b
Discover power and precision with the RMT H-FAB H Series 550 US t Hydraulic Press. Quality design, versatile features, and top-notch performance.
Regular price
$35,999.99
Regular price
Sale price
$35,999.99
Unit price
per
Initiate Order
RMT H-FAB H Series 550 US t Capacity Hydraulic Press
$35,999.99
Quantity: 1
Claim Your Seller Account
RMT H-FAB H Series 550 US t Capacity Hydraulic Press
$35,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

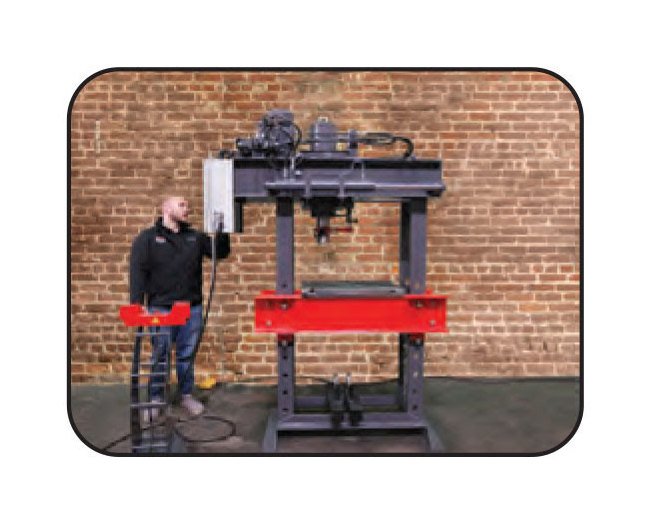

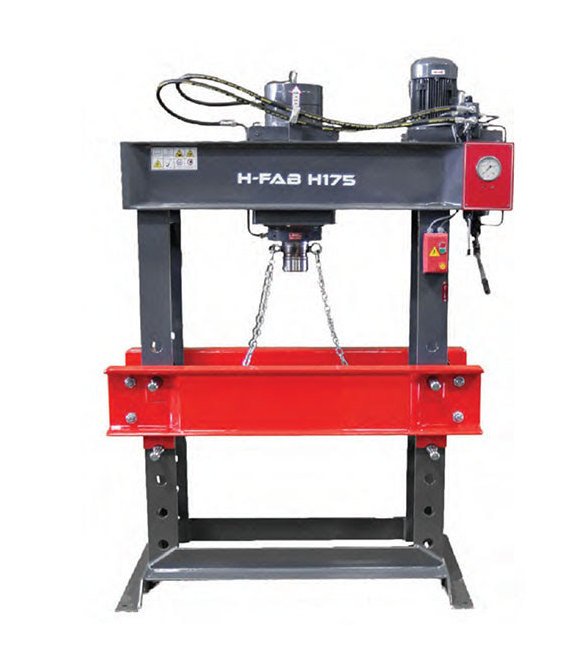

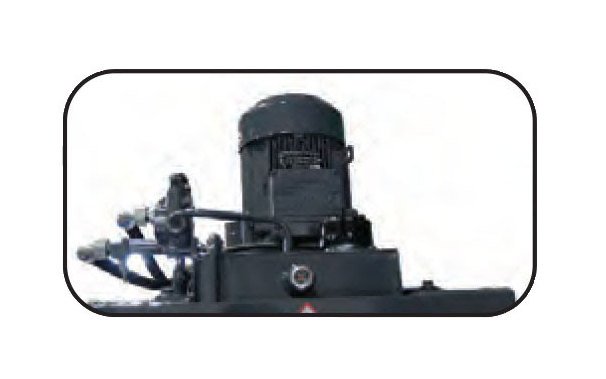

The RMT H-FAB H Series 550 US ton Workshop Type Hydraulic Press is a powerhouse designed for industrial tasks. With a robust 40 hp motor power and chrome plated cylinder, this hydraulic press boasts a 16-inch stroke and 35.4-inch daylight opening. Featuring two-speed hydraulics and pressure adjustment, it offers versatility for various applications. Built with precision using top-quality components from reputable brands like Rexroth and Parker, this press ensures reliability and performance. Add optional features like palm buttons, die sets, or rolling bolsters for enhanced functionality tailored to your needs.
Product Specifications

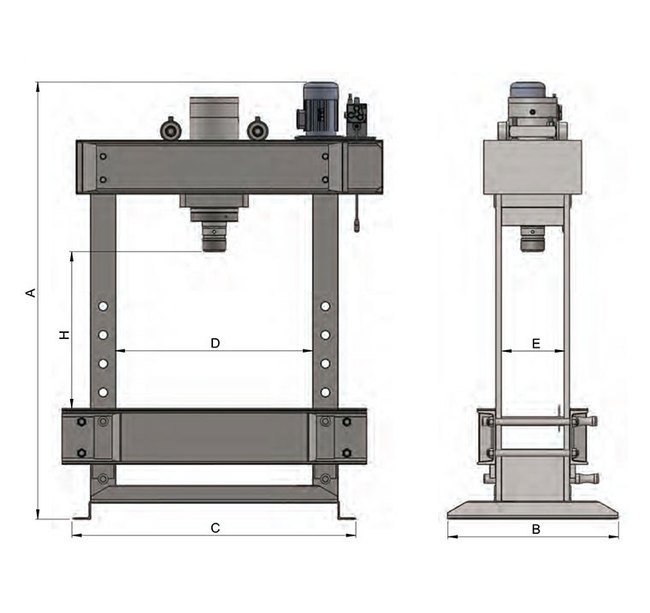

Dimensions Height A
130 in
Dimensions Width
98 in
Note
We do not source any component of our presses from China.
Optional Features
Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
550 US t
Specifications Clear Front D
55 in
Specifications Clear Side E
22 in
Specifications Daylight H
35.4 in
Specifications Down Speed
21 in/min
Specifications Foot Length B
51 in
Specifications Foot Width C
87 in
Specifications Motor Power
40 hp
Specifications Phase
3
Specifications Return Speed
46 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
18,739 lb
Standard Features

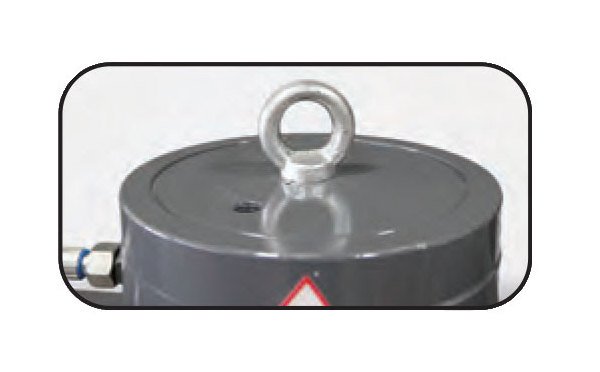

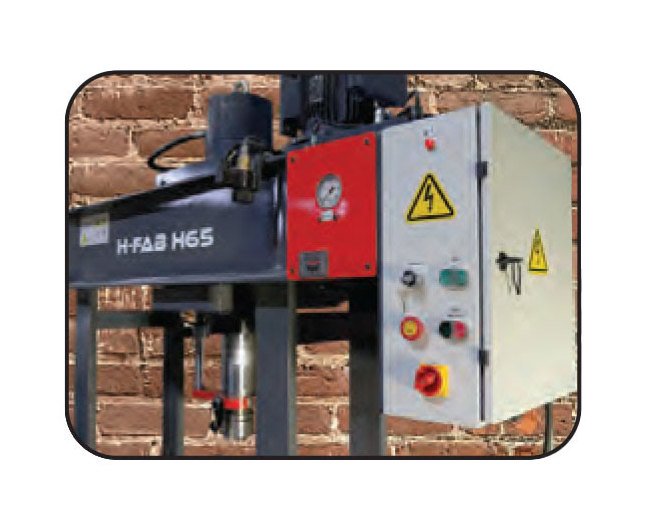

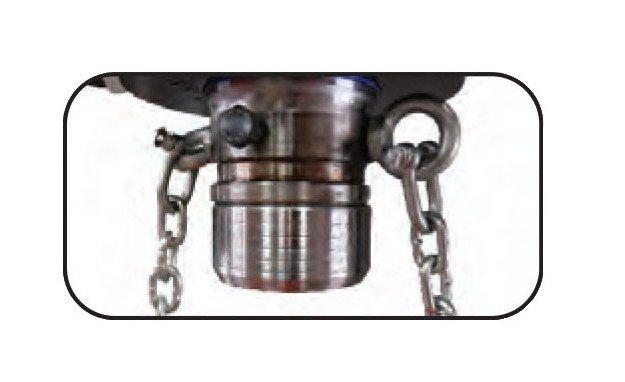

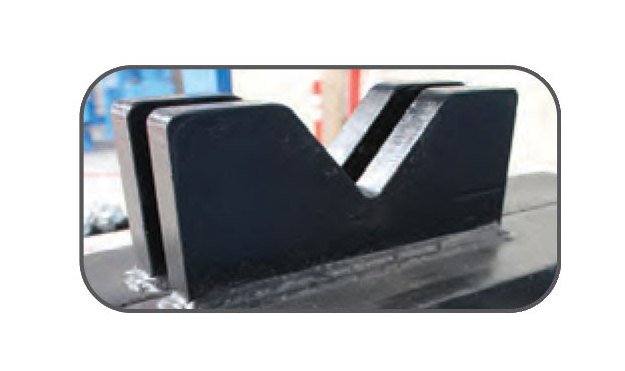

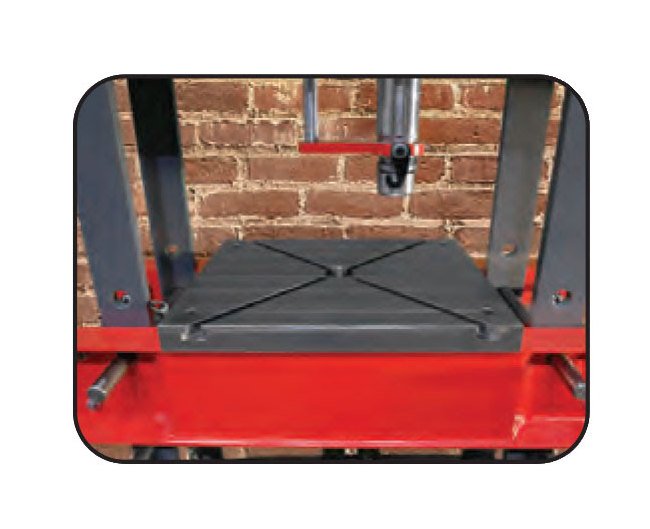

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
