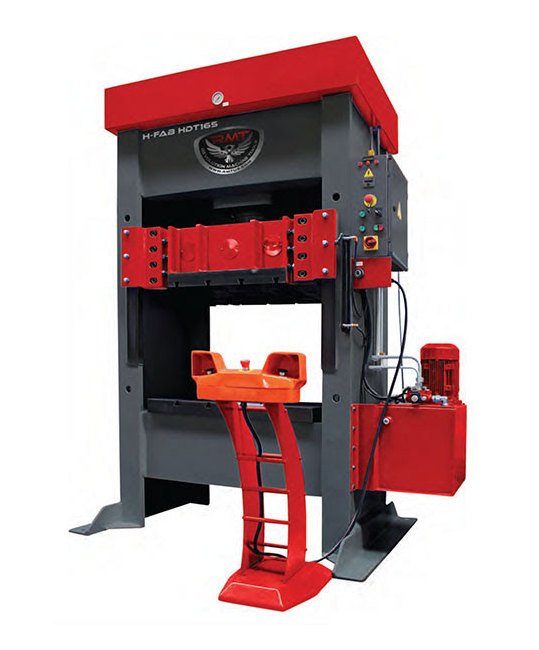

RMT H-FAB HDT H-Frame 275 US Ton Hydraulic Press
RMT H-FAB HDT H-Frame 275 US Ton Hydraulic Press
SKU:HFA-045423
Experience power and precision with the RMT H-FAB HDT Hydraulic Press - 275 US Ton capacity, H-frame design, top-quality components, and advanced features.
Regular price
$34,999.99
Regular price
Sale price
$34,999.99
Unit price
per
Initiate Order
RMT H-FAB HDT H-Frame 275 US Ton Hydraulic Press
$34,999.99
Quantity: 1
Claim Your Seller Account
RMT H-FAB HDT H-Frame 275 US Ton Hydraulic Press
$34,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-FAB HDT H-Frame 275 US Ton Hydraulic Press is designed for precision and reliability in heavy-duty applications. Featuring a robust H-frame design and a 275 US ton capacity, this hydraulic press ensures exceptional performance. With a 24-inch daylight and 16-inch stroke, it offers versatility for various pressing needs. The press includes standard features such as a chrome plated cylinder, T-slotted table, and quality components from reputable brands like Rexroth and Siemens. Optional features like an ejector cylinder and HMI touchscreen control panel enhance operational efficiency. This press is ideal for industries requiring superior pressing capabilities and durability.
Product Specifications
Dimensions Height
102 in
Dimensions Length
47 in
Dimensions Width
106 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderHMI touchscreen control panel with RMT height suspension armDie setsHeated platensText alignment
Specifications Capacity
275 US t
Specifications Daylight
24 in
Specifications Down Speed
26 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
20 hp
Specifications Open Height
8 in
Specifications Pump
12 gal
Specifications Return Speed
45 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
14,330 lb
Specifications Working Speed
26 in/min
Standard Features
Chrome plated cylinderSteel welded framePressure adjustmentOil pressure gaugeT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
60 in
Table Size Table Width
24 in
