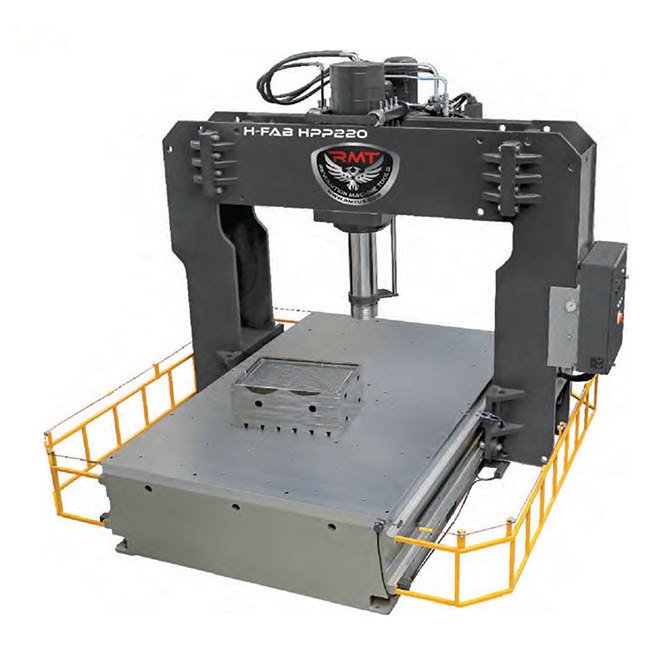

RMT H-FAB HPP 220T Hydraulic Portal Straightening Press
RMT H-FAB HPP 220T Hydraulic Portal Straightening Press
SKU:HFA-bae518
Achieve precision straightening with the RMT H-FAB HPP 220T Hydraulic Portal Press. 220T capacity, 16" stroke, and advanced features for industrial excellence.
Regular price
$29,999.00
Regular price
Sale price
$29,999.00
Unit price
per
Initiate Order
RMT H-FAB HPP 220T Hydraulic Portal Straightening Press
$29,999.00
Quantity: 1
Claim Your Seller Account
RMT H-FAB HPP 220T Hydraulic Portal Straightening Press
$29,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-FAB HPP 220T Hydraulic Portal Straightening Press offers a robust solution for precision straightening tasks in industrial settings. With a capacity of 220 US tons and a stroke of up to 16 inches, this press provides efficient straightening force. Its motor power of 10 hp ensures smooth operation while maintaining accuracy. Equipped with advanced features like X, Y, Z axis movement, pressure adjustment, and stroke control, this press guarantees precise results. Notably, all components are sourced from renowned brands like Rexroth, Parker, Schneiders, and Siemens, ensuring high quality and reliability.
Product Specifications
Note
We do not source any component of our presses from China.
Optional Features
NCLarger open height and strokePower rolling ram across rail (3 Axis powered movement)Digital position readout for any axis)Different table configurationsWireless remote pendant
Specifications Capacity
220 US t
Specifications Daylight
24 in
Specifications Down Speed
17 in/min
Specifications Motor Power
10 hp
Specifications Return Speed
24 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Standard Features

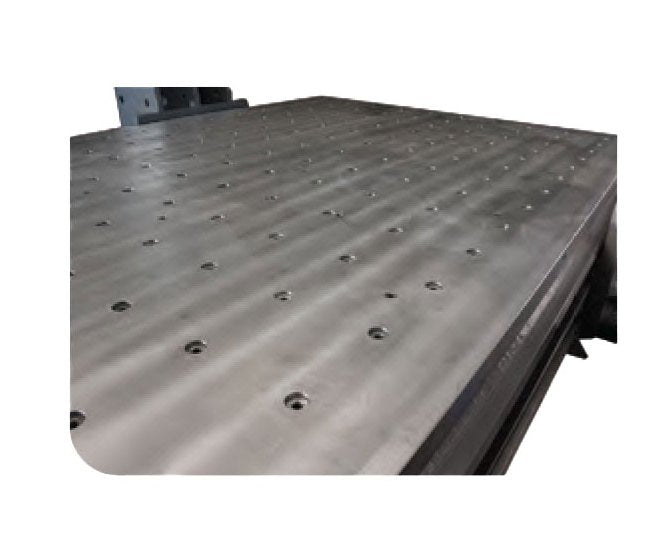

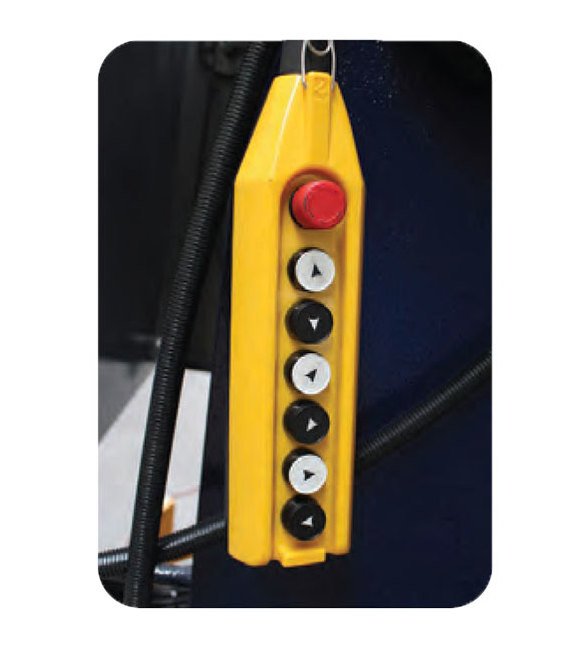

Chrome plated cylinderSteel welded frameControlled by pendantX, Y, Z Axis movement motorizedStroke control in any positionPressure adjustmentOil pressure gaugeT-slotted tableWorking plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
40 in
Table Size Table Width
99 in
