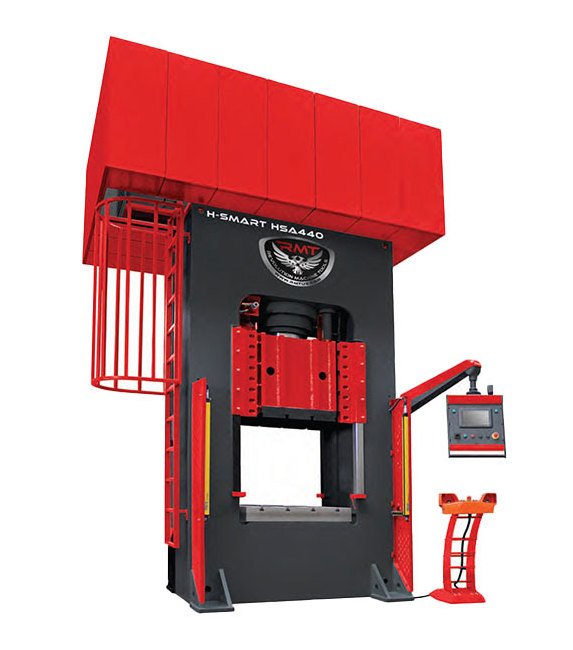

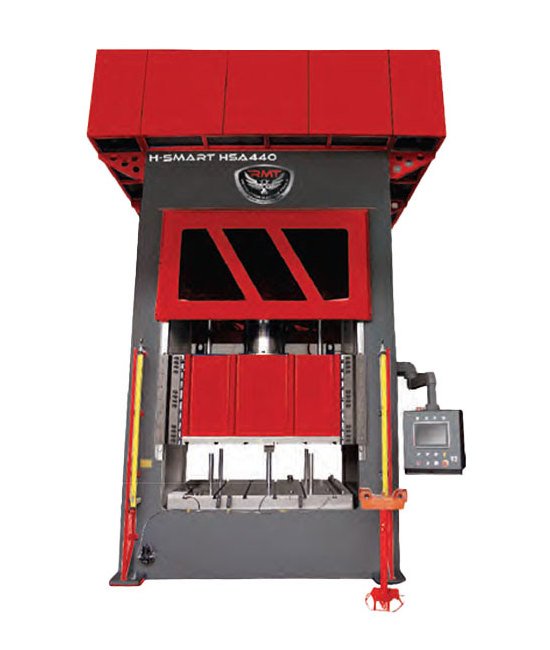

RMT H-SMART 440 US t H-Frame Single Action Press
RMT H-SMART 440 US t H-Frame Single Action Press
SKU:HSM-b48c66
Powerful RMT H-SMART 440 US t Single Action Press with customizable features for industrial precision and efficiency.
Regular price
$46,999.99
Regular price
Sale price
$46,999.99
Unit price
per
Initiate Order
RMT H-SMART 440 US t H-Frame Single Action Press
$46,999.99
Quantity: 1
Claim Your Seller Account
RMT H-SMART 440 US t H-Frame Single Action Press
$46,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-SMART 440 US t H-Frame Single Action Press offers unparalleled precision and power for industrial applications. With a robust 40 hp motor, 48-inch daylight, and a 40-inch stroke, this press delivers superior performance. Featuring a steel welded frame, servo proportional hydraulic system, and customizable options like ejector cylinders and heated platens, this press ensures efficiency and versatility. Compliant with Federal procurement standards, this press is proudly sourced without any components from China.
Product Specifications
Dimensions Height
185 in
Dimensions Length
102 in
Dimensions Width
98 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
440 US t
Specifications Daylight
48 in
Specifications Down Speed
234 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
40 hp
Specifications Open Height
8 in
Specifications Optional Cushion Capacity
165 US t
Specifications Optional Cushion Stroke
12 in
Specifications Optional T Slots
To Customer Requirement
Specifications Pump
31 gal
Specifications Return Speed
330 in/min
Specifications Slide Action
Single Action
Specifications Stroke
40 in
Specifications Weight
44,093 lb
Specifications Weight With Cushion Option
50,706 lb
Specifications Working Speed
24 in/min
Standard Features

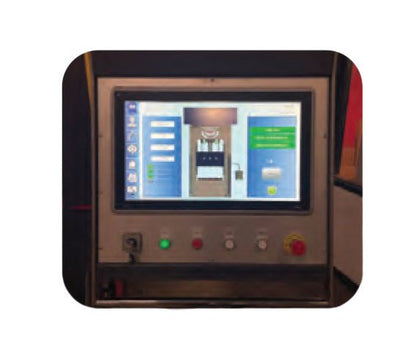

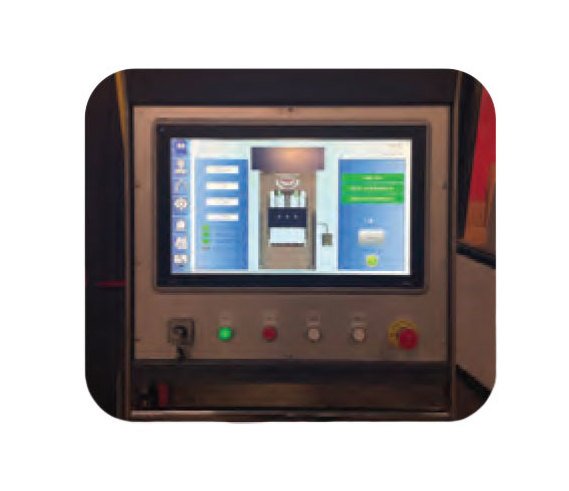

Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
47 in
Table Size Table Width
55 in
