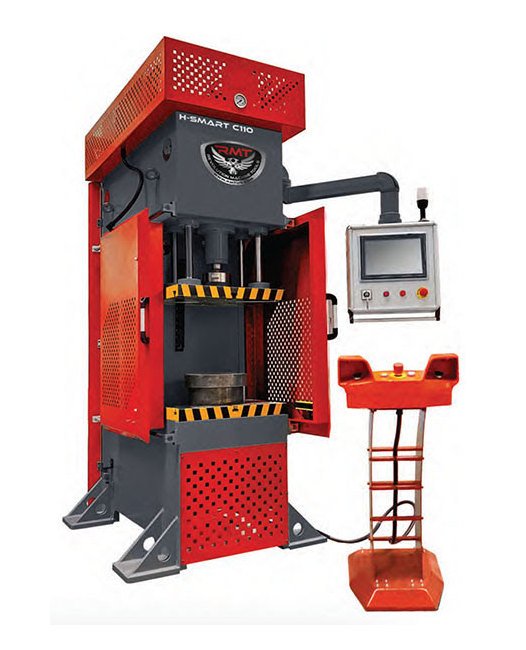

RMT H-SMART C-Frame 275 US ton Single Action Press
RMT H-SMART C-Frame 275 US ton Single Action Press
Enhanced RMT C-Frame 275T Single Action Press for high precision applications, featuring advanced servo hydraulic system and HMI touchscreen control.
Regular price
$45,999.00
Regular price
Sale price
$45,999.00
Unit price
per
Initiate Order
RMT H-SMART C-Frame 275 US ton Single Action Press
$45,999.00
Quantity: 1
Claim Your Seller Account
RMT H-SMART C-Frame 275 US ton Single Action Press
$45,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-SMART C-Frame 275 US ton Single Action Press is a robust and precision-engineered industrial machine designed to deliver high performance in pressing applications. With a 20-inch daylight, 16-inch stroke, and 4-inch open height, this press offers versatile customization options to suit various production needs. Equipped with advanced features like a servo hydraulic system, HMI touchscreen control panel, and safety cover with a light barrier, it ensures efficient and safe operation. The press is built with premium components from reputable brands like Rexroth, Parker, Schneiders, and Siemens, guaranteeing reliable performance and durability. Ideal for industrial, government, and institutional use.
Product Specifications
Dimensions Height
142 in
Dimensions Length
83 in
Dimensions Width
75 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsDie setsCushionHeated platens
Specifications Capacity
275 US t
Specifications Daylight
20 in
Specifications Down Speed
295 in/min
Specifications Frame Design
C-Frame
Specifications Motor Power
20 hp
Specifications Open Height
4 in
Specifications Optional Cushion Stroke
6 in
Specifications Pump
17 gal
Specifications Return Speed
426 in/min
Specifications Slide Action
Single Action
Specifications Stroke
16 in
Specifications Weight
30,865 lb
Specifications Working Speed
20 in/min
Standard Features
Chrome plated cylinderSteel welded frameServo hydraulic systemHMI touchscreen control panelSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelAdjustable variable speed on HMI touchscreen control panelOil pressure gaugeAir coolingT-slotted table and ramCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
40 in
Table Size Table Width
24 in
