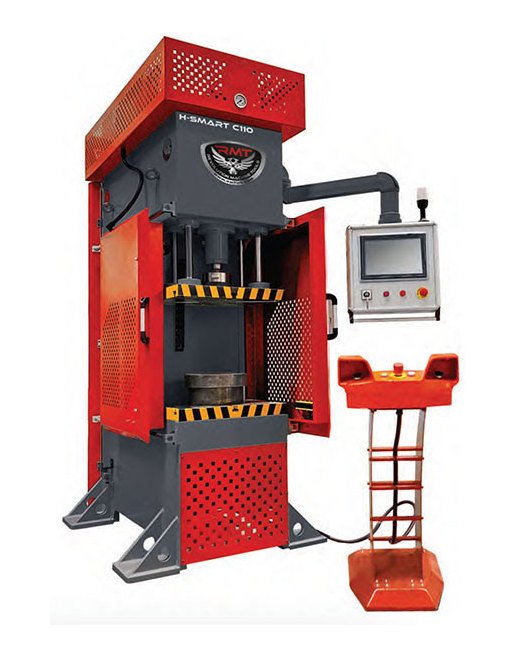

RMT H-SMART C-Frame 33T Single Action Press
RMT H-SMART C-Frame 33T Single Action Press
Powerful and precise C-Frame press with servo hydraulic system, HMI control panel, and safety features. Versatile for various industrial applications.
Regular price
$17,999.99
Regular price
Sale price
$17,999.99
Unit price
per
Initiate Order
RMT H-SMART C-Frame 33T Single Action Press
$17,999.99
Quantity: 1
Claim Your Seller Account
RMT H-SMART C-Frame 33T Single Action Press
$17,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-SMART C-Frame 33T Single Action Press offers precision and power for a wide range of industrial applications. With a 33 US ton capacity, 16-inch stroke, and 20-inch daylight, this press delivers efficient and reliable performance. Featuring a servo hydraulic system, HMI touchscreen control panel, and adjustable stroke and speed settings, this press ensures ease of operation and versatility. With standard safety features and optional add-ons like ejector cylinders and cushioning, this press is a top choice for meeting diverse manufacturing needs.
Product Specifications
Dimensions Height
102 in
Dimensions Length
59 in
Dimensions Width
55 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsDie setsCushionHeated platens
Specifications Capacity
33 US t
Specifications Daylight
20 in
Specifications Down Speed
236 in/min
Specifications Frame Design
C-Frame
Specifications Motor Power
10 hp
Specifications Open Height
4 in
Specifications Optional Cushion Stroke
6 in
Specifications Pump
6 gal
Specifications Return Speed
354 in/min
Specifications Slide Action
Single Action
Specifications Stroke
16 in
Specifications Weight
5,512 lb
Specifications Working Speed
24 in/min
Standard Features
Chrome plated cylinderSteel welded frameServo hydraulic systemHMI touchscreen control panelSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelAdjustable variable speed on HMI touchscreen control panelOil pressure gaugeAir coolingT-slotted table and ramCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
20 in
Table Size Table Width
20 in
