RMT H-SMART HSA 2200 US t H-Frame Single Action Press
RMT H-SMART HSA 2200 US t H-Frame Single Action Press
SKU:HSM-629d10
RMT H-SMART HSA 2200 US t H-Frame Press: Chrome plated cylinder, servo hydraulic system, customizable table sizes, safety features, top-quality components.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
RMT H-SMART HSA 2200 US t H-Frame Single Action Press
$28,999.99
Quantity: 1
Claim Your Seller Account
RMT H-SMART HSA 2200 US t H-Frame Single Action Press
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

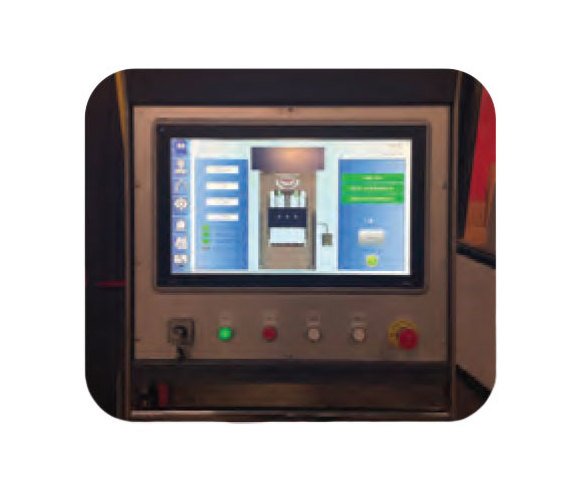

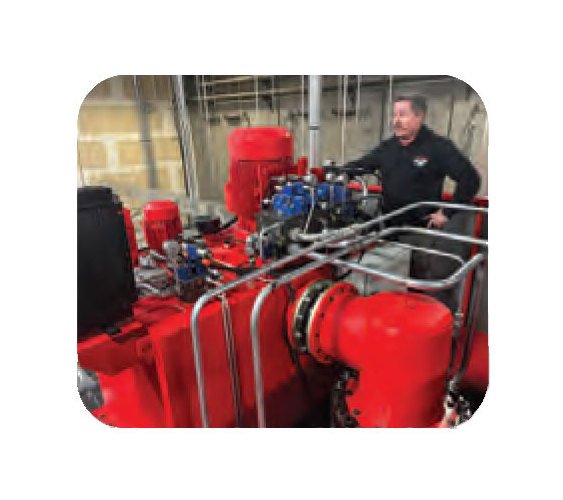

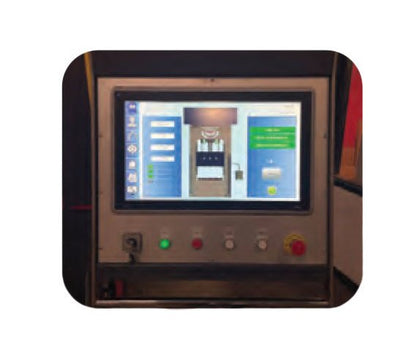

The RMT H-SMART HSA H-Frame Series 2200 US t Capacity Single Action Press is a robust and efficient machine designed for precision pressing applications. Featuring a chrome plated cylinder, steel welded frame, and a servo proportional hydraulic system, this press ensures reliability and consistent performance. The HMI touchscreen control panel with an RMT height suspension arm offers user-friendly operation, while safety features like a safety cover and light barrier enhance workplace safety. With customizable table sizes and optional features such as ejector cylinder and heated platens, this press caters to diverse application needs. Additionally, all components are sourced from reputable manufacturers like Rexroth and Siemens, ensuring top-notch quality.
Product Specifications
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
2200 US t
Specifications Frame Design
H-Frame
Specifications Optional T Slots
To Customer Requirement
Specifications Slide Action
Single Action
Standard Features
Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
Request a Quote - Table Size Can be Customized
Table Size Table Width
Request a Quote - Table Size Can be Customized
