RMT H-SMART HSA H-Frame 550 Ton Single Action Press
RMT H-SMART HSA H-Frame 550 Ton Single Action Press
SKU:HSM-259d27
Powerful 550 Ton RMT H-SMART HSA H-Frame single action press with advanced features for precise metalworking applications.
Regular price
$89,999.99
Regular price
Sale price
$89,999.99
Unit price
per
Initiate Order
RMT H-SMART HSA H-Frame 550 Ton Single Action Press
$89,999.99
Quantity: 1
Claim Your Seller Account
RMT H-SMART HSA H-Frame 550 Ton Single Action Press
$89,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

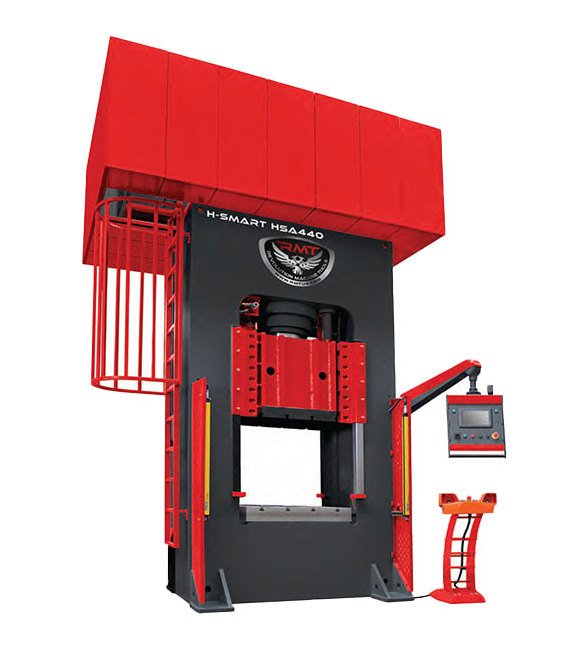

The RMT H-SMART HSA H-Frame 550 Ton Single Action Press is a robust and reliable industrial machine designed for high-performance metalworking applications. With a slide action of single action and a sturdy H-Frame design, this press offers exceptional precision and strength. It boasts a 550 US ton capacity, a generous 48-inch daylight, and a 40-inch stroke, making it ideal for heavy-duty forming tasks. Equipped with advanced features like a servo proportional hydraulic system, HMI touchscreen control panel, and safety measures, this press ensures efficient operation and operator safety. Optional features like ejector cylinder and variable speeds enhance versatility for diverse manufacturing needs.
Product Specifications
Dimensions Height
193 in
Dimensions Length
102 in
Dimensions Width
98 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
550 US t
Specifications Daylight
48 in
Specifications Down Speed
234 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
40 hp
Specifications Open Height
8 in
Specifications Optional Cushion Capacity
220 US t
Specifications Optional Cushion Stroke
12 in
Specifications Optional T Slots
To Customer Requirement
Specifications Pump
31 gal
Specifications Return Speed
330 in/min
Specifications Slide Action
Single Action
Specifications Stroke
40 in
Specifications Weight
50,706 lb
Specifications Weight With Cushion Option
57,320 lb
Specifications Working Speed
24 in/min
Standard Features
Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
47 in
Table Size Table Width
59 in
