RMT H-SMART HSA H-Frame 660T Single Action Press
RMT H-SMART HSA H-Frame 660T Single Action Press
SKU:HSM-31765e
Powerful RMT H-SMART HSA H-Frame 660T Single Action Press for precise industrial operations.
Regular price
$79,999.00
Regular price
Sale price
$79,999.00
Unit price
per
Initiate Order
RMT H-SMART HSA H-Frame 660T Single Action Press
$79,999.00
Quantity: 1
Claim Your Seller Account
RMT H-SMART HSA H-Frame 660T Single Action Press
$79,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT H-SMART HSA H-Frame 660T Single Action Press offers superior precision and power for industrial applications. With a robust frame design, 660 US ton capacity, and advanced servo proportional hydraulic system, this press ensures efficient operation. Equipped with optional features like ejector cylinder and heated platens, it enhances productivity. Built using high-quality components from reputable brands like Rexroth and Siemens, this press guarantees reliability and performance. Ideal for diverse manufacturing needs, it provides customizable options to suit specific requirements.
Product Specifications
Dimensions Height
217 in
Dimensions Length
118 in
Dimensions Width
110 in
Note
We do not source any component of our presses from China.
Optional Features
Ejector cylinderVariable speedsTool loading deviceDie setsCushionHeated platens
Specifications Capacity
660 US t
Specifications Daylight
48 in
Specifications Down Speed
234 in/min
Specifications Frame Design
H-Frame
Specifications Motor Power
50 hp
Specifications Open Height
8 in
Specifications Optional Cushion Capacity
275 US t
Specifications Optional Cushion Stroke
12 in
Specifications Optional T Slots
To Customer Requirement
Specifications Pump
56 gal
Specifications Return Speed
330 in/min
Specifications Slide Action
Single Action
Specifications Stroke
40 in
Specifications Weight
66,139 lb
Specifications Weight With Cushion Option
72,753 lb
Specifications Working Speed
36 in/min
Standard Features

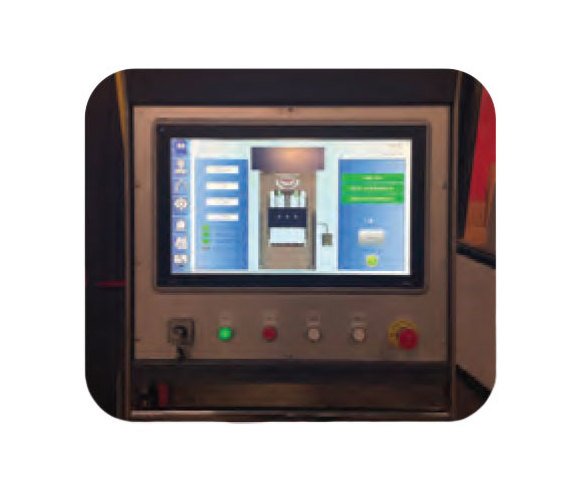

Chrome plated cylinderSteel welded frameServo proportional hydraulic systemHMI touchscreen control panel with RMT height suspension armSafety cover and light barrierTwo hand button controlAdjustable variable pressure on HMI touchscreen control panelAdjustable stroke on HMI touchscreen control panelOil pressure gaugeLubricationAir coolingT-slotted tableCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
Table Size Table Length
59 in
Table Size Table Width
67 in
