RMT LS Series Up-Down In Feed Roller Conveyor - 315x41.25 in
RMT LS Series Up-Down In Feed Roller Conveyor - 315x41.25 in
Enhance pipe handling efficiency with RMT LS Series Up-Down In Feed Roller Conveyor - 315x41.25 in.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT LS Series Up-Down In Feed Roller Conveyor - 315x41.25 in
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT LS Series Up-Down In Feed Roller Conveyor - 315x41.25 in
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

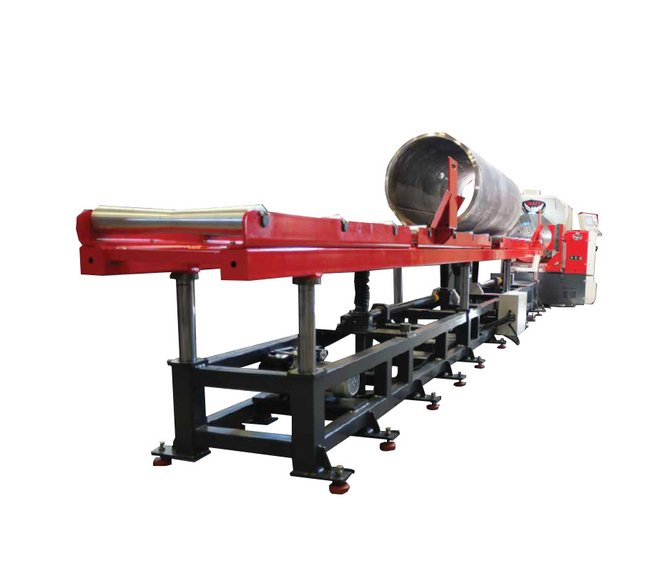

The RMT LS Series Up-Down In Feed Roller Conveyor is designed to streamline the handling of long pipes and tubes, facilitating easy material transfer to your PIPE SPOOL MASTER machine. With a generous 26 ft conveyor length, 33,000 lb weight capacity, and integrated Lazy Susan pipe rotator, it enables efficient processing without the need for heavy machinery. The 7 hp motor power, adjustable table height, and 13.75 in up and down table stroke make it a versatile solution for industrial applications. Experience seamless pipe rotation and precise material positioning with this innovative conveyor system.
Product Specifications
Dimensions Height
31.5 in
Dimensions Length
315 in
Dimensions Width
41.25 in
Note
Revolution Machine Tools' PIPE SPOOL MASTER Series of machines doesn't just stop at the PIPE SPOOL MASTER Ask us about larger capacity machines and different application.
Specifications Conveyor Length
26 ft
Specifications Lazy Susan Turn Table Stroke
6 in
Specifications Lazy Susan Turn Table Weight Capacity
5500 lb
Specifications Motor Power
7 hp
Specifications Up And Down Table Stroke
13.75 in
Specifications Weight Capacity
33,000 lb
