RMT Multi Server 510 Full Automatic Sheet Loading System (3 Pallets)
RMT Multi Server 510 Full Automatic Sheet Loading System (3 Pallets)
Enhance productivity with the RMT Multi Server 510 - a reliable, automated sheet loading solution.
Regular price
$62,999.99
Regular price
Sale price
$62,999.99
Unit price
per
Initiate Order
RMT Multi Server 510 Full Automatic Sheet Loading System (3 Pallets)
$62,999.99
Quantity: 1
Claim Your Seller Account
RMT Multi Server 510 Full Automatic Sheet Loading System (3 Pallets)
$62,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

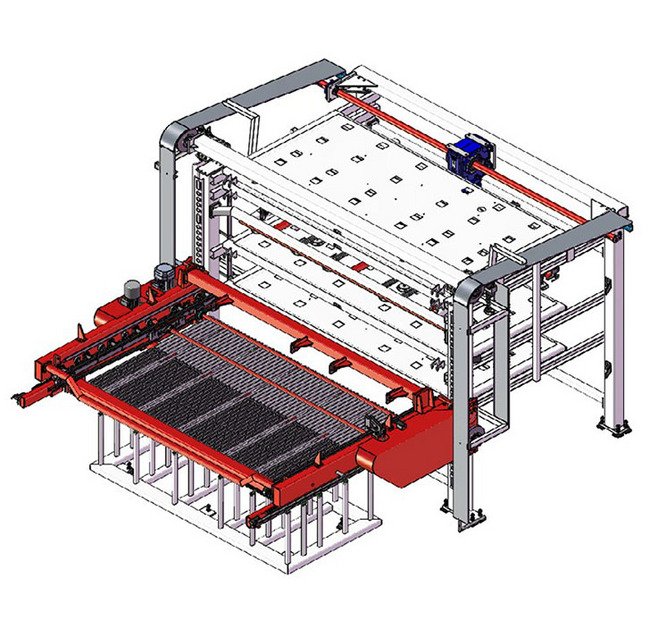

The RMT Multi Server 510 Full Automatic Sheet Loading System is a high-performance solution for seamless sheet metal handling. Featuring advanced technologies such as automatic sheet separation, thickness measuring control, and Z-axis fall safety, this system ensures precise and reliable operation. Equipped with a Siemens controller, touch screen interface, and customizable pallet configuration, it offers unmatched efficiency and flexibility. With a robust construction meeting stringent industrial standards, this system is ideal for both consumer and institutional buyers seeking top-tier automation capabilities.
Product Specifications
Additional Information
Fixed fencing system and photocell protectionMagnetic Stripper: Supports the suction cups handler when separating metal sheetsAir Jet Blower: Separates the metal sheet to prevent them from adhering togetherSheets Pneumatic Stripper: Moves independently up and down to separate the metal sheetsSiemens brand controller supports up to 28 material codes in the systemOpen system for the robot configuration5-7 inch touch screen with keypad (system can be run with touch screen or keypad)Minimum of three pallets for the stock area and can be customized up to 15 pallets with each load holding 6610 pounds.
Specifications Electric Power Installed
24 hp
Specifications Electric Power Installed Tolerance
10 %
Specifications Electric Voltage
460 V
Specifications Electric Voltage Tolerance
10 %
Specifications Frequency
60 Hz
Specifications Frequency Tolerance
10 %
Specifications Maximum Current Absorption
30 A

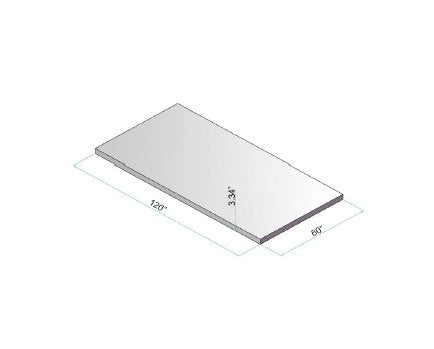

Specifications Maximum Dimension
120 x 60 x 0.75 in
Specifications Maximum Height Stack Of Sheet
3.34 in
Specifications Maximum Weight Stack
6613 lb
Specifications Minimum Dimension
40 x 40 x 0.020 in
Specifications Number Of Pallets
3
Specifications Overall Dimensions Without Safety Fences
259 × 232 in
Specifications Overall Height H
131 in
Specifications Phase
3
Specifications Short Circuit Current
10 kA
Specifications Total System Weight
16,534 lb
