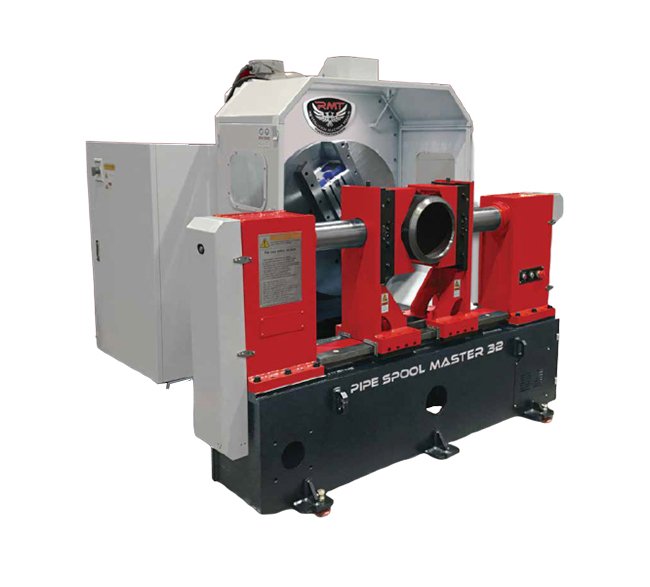

RMT PIPE SPOOL MASTER 32 Pipe Beveling Machine
RMT PIPE SPOOL MASTER 32 Pipe Beveling Machine
SKU:PIP-45d488
Enhance pipe fabrication efficiency with the RMT PIPE SPOOL MASTER 32 Pipe Beveling Machine. Ideal for pipes 6-32". Streamline beveling processes & increase productivity!
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
RMT PIPE SPOOL MASTER 32 Pipe Beveling Machine
$28,999.99
Quantity: 1
Claim Your Seller Account
RMT PIPE SPOOL MASTER 32 Pipe Beveling Machine
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

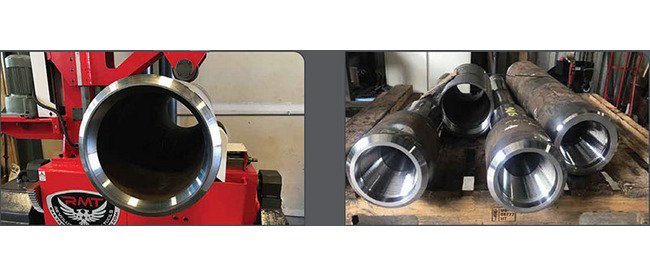

The RMT PIPE SPOOL MASTER 32 is a game-changer for pipe fabrication shops, offering rapid beveling for pipes sized 6" to 32". With advanced features like X, Z-axis strokes, and a maximum spindle speed of 150 rpm, this machine ensures precise and efficient beveling. Equipped with V, U, J, and C bevel capabilities and optional threading functions, it streamlines complex beveling processes, enhancing productivity and welder satisfaction. The machine's robust frame, adjustable cutting tools, and CNC control unit with a user-friendly interface make it an essential tool for revolutionizing pipe fabrication workflows.
Product Specifications
Benefits
The pipe fabrication industry has been a backbone of American growth and infrastructure for well over two-hundred years. Pipelines, oil, energy, medical, food and paper have all grown due to the work done by pipe fabricators. It's full of the grittiest and most talented welders in the world.However, the technology that exists in today's pipe shop hasn't changed much in decades. The capacity to put complex bevels on basic carbon pipe and even harder P91 Chrome Alloy pipe has been a mix of old boring mills, hand machining and plasma/oxy processes. They're slow, burdensome and are usually the bottleneck of any shop pushing out any decent amount of pre-prepped pipe, as well as accuracy and quality issues when trying to complete a J or U bevel with any complexity.Introducing you to the RMT PIPE SPOOL MASTER Series of pipe facing lathes. Many shops, depending on equipment, will put out 1-4 larger diameter pipes a day with the machined bevel quality required; taking anywhere from 1-4 hours per pipe to set up and "machine" the end of the pipe. The new RMT PIPE SPOOL MASTER Series machines can reduce that time down to 15-30 minutes including setup. The machine does not spin the pipe, but rather clamps and centers the material, while a facing head spins and approaches the material while inside the machine. 12" XH wall (1-1/2") P91 pipe processed with a complex bevel including C-dimension was processed in 20 minutes.The RMT PIPE SPOOL MASTER Series of machines can dramatically increase your shop's capacity and output, giving you a huge advantage over your competitors and increasing your profitability; all while taking up minimal floor space and overhead.Contact your RMT Rep today to find out more!
Machine Dimensions Machine Height
77 in
Machine Dimensions Machine Length
93 in
Machine Dimensions Machine Width
92 in
Main Features

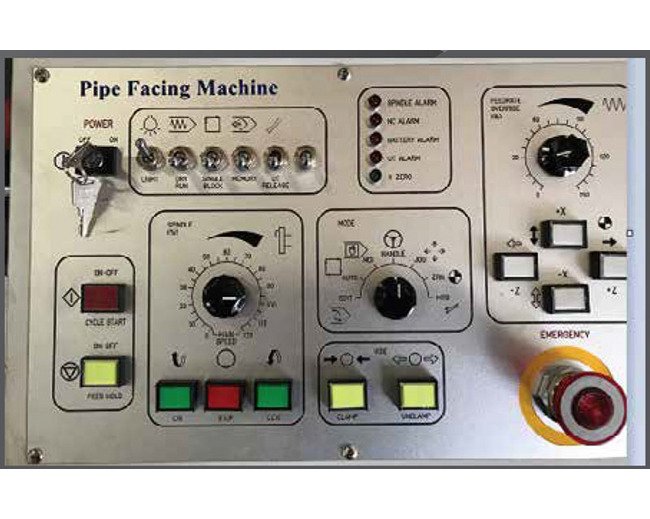

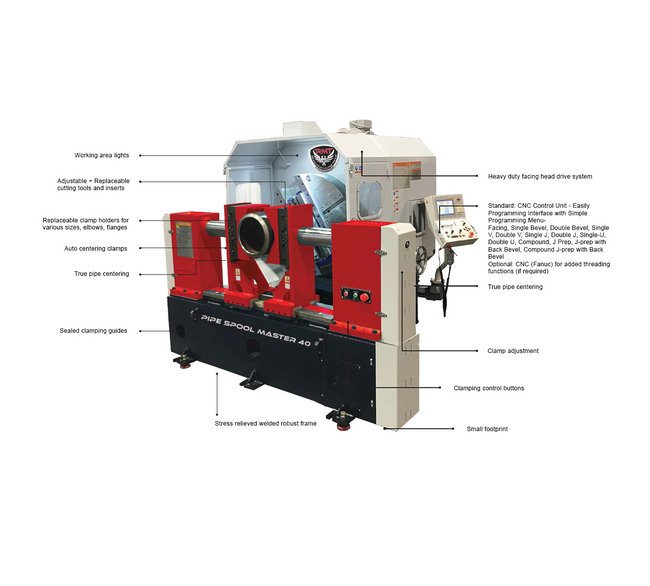

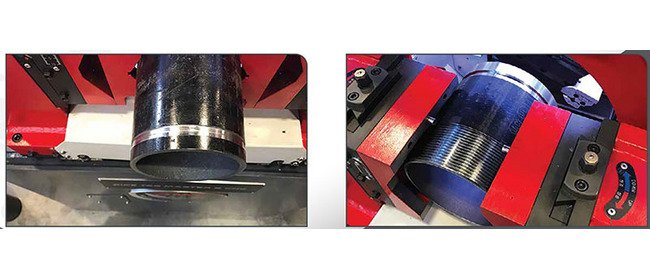

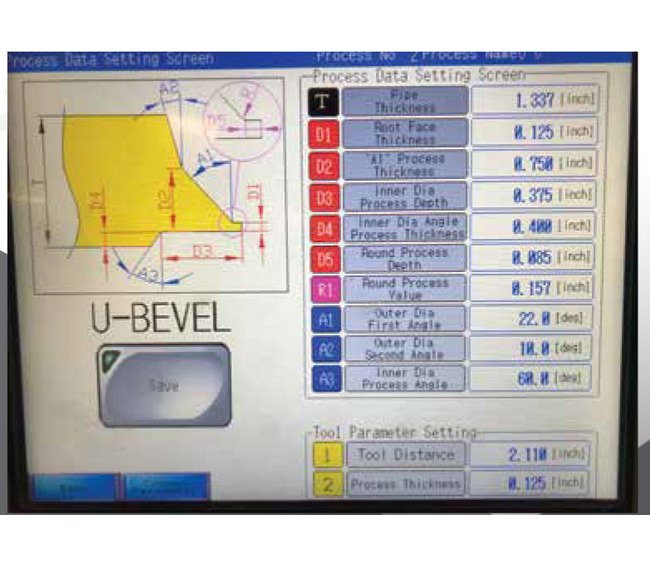

Working area lightsAdjustable + Replaceable cutting tools and insertsReplaceable clamp holders for various sizes, elbows, flange'sAuto cantering clampsTrue pipe canteringSealed clamping guidesStress relieved welded robust frameHeavy duty facing head drive systemStandard: CNC Control Unit - Easily Programming Interface with Simple Programming Menu-Facing, Single Bevel, Double Bevel, Single V, Double V, Single J, Double J, Single-U, Double U, Compound, J Prep, J-prep with Back Bevel, Compound J-prep with Back BevelOptional: CNC (Fanuc) for added threading functions (if required)True pipe canteringClamp adjustmentClamping control buttonsSmall footprint
Specifications Application
Beveling | Threading
Specifications Complex Bevels U J And C Dimensions
Standard
Specifications Machine Capacity Outside Diameter Od
6 to 32 in
Specifications Main Motor Power
10 hp
Specifications Maximum Spindle Speed
150 rpm
Specifications Optional Followertracer Attachment
If pipe is out of spec - round or oval, attachment will trace pipe to meet customer specifications
Specifications Optional Threading
Fanuc CNC
Specifications Optional Z Axis Stroke
0 to 24 in
Specifications Standard Bevelshard Tooling Supplied With The Mac
V Bevel (30º and 37.5º)
Specifications Wall Thickness Capacity One Setup
3.9 in
Specifications Weight
12,800 lb
Specifications X Axis Stroke
5 in
Specifications Z Axis Stroke
7 in
