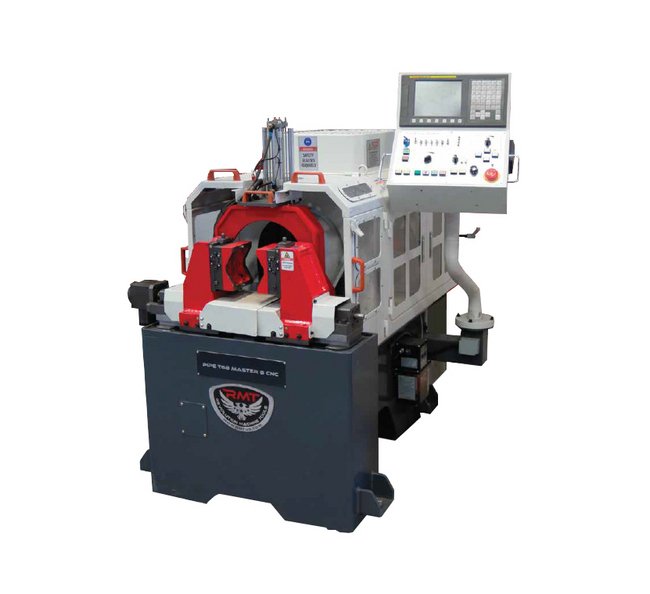

RMT PIPE SPOOL MASTER Pipe Facing & Beveling Machine 1-8 inch OD
RMT PIPE SPOOL MASTER Pipe Facing & Beveling Machine 1-8 inch OD
SKU:PIP-6ab58e
Enhance pipe fabrication efficiency with RMT PIPE SPOOL MASTER Pipe Facing & Beveling Machine 1-8" OD. Precision, speed, and quality in one!
Regular price
$39,999.00
Regular price
Sale price
$39,999.00
Unit price
per
Initiate Order
RMT PIPE SPOOL MASTER Pipe Facing & Beveling Machine 1-8 inch OD
$39,999.00
Quantity: 1
Claim Your Seller Account
RMT PIPE SPOOL MASTER Pipe Facing & Beveling Machine 1-8 inch OD
$39,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

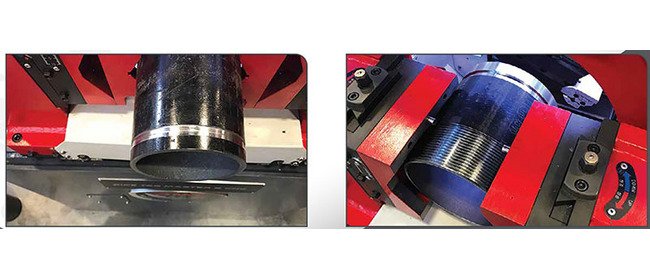

The RMT PIPE SPOOL MASTER Series Pipe Facing & Beveling Machine offers unparalleled versatility and efficiency for pipe processing needs. With a wide 1" to 8" capacity for precise pipe and bolt threading, this machine is equipped with a FANUC CNC system for high-speed cut groove, beveling, turning, and tapering of custom profiles. Its robust design includes features like adjustable cutting tools, sealed clamping guides, and a stress-relieved welded frame. Experience faster setup times, increased productivity, and exceptional quality with the RMT PIPE SPOOL MASTER Series.
Product Specifications
Benefits
The pipe fabrication industry has been a backbone of American growth and infrastructure for well over two-hundred years. Pipelines, oil, energy, medical, food and paper have all grown due to the work done by pipe fabricators. It's full of the grittiest and most talented welders in the world.However, the technology that exists in today's pipe shop hasn't changed much in decades. The capacity to put complex bevels on basic carbon pipe and even harder P91 Chrome Alloy pipe has been a mix of old boring mills, hand machining and plasma/oxy processes. They're slow, burdensome and are usually the bottleneck of any shop pushing out any decent amount of pre-prepped pipe, as well as accuracy and quality issues when trying to complete a J or U bevel with any complexity.Introducing you to the RMT PIPE SPOOL MASTER Series of pipe facing lathes. Many shops, depending on equipment, will put out 1-4 larger diameter pipes a day with the machined bevel quality required; taking anywhere from 1-4 hours per pipe to set up and "machine" the end of the pipe. The new RMT PIPE SPOOL MASTER Series machines can reduce that time down to 15-30 minutes including setup. The machine does not spin the pipe, but rather clamps and centers the material, while a facing head spins and approaches the material while inside the machine. 12" XH wall (1-1/2") P91 pipe processed with a complex bevel including C-dimension was processed in 20 minutes.The RMT PIPE SPOOL MASTER Series of machines can dramatically increase your shop's capacity and output, giving you a huge advantage over your competitors and increasing your profitability; all while taking up minimal floor space and overhead.Contact your RMT Rep today to find out more!
Machine Dimensions Machine Height
55 in
Machine Dimensions Machine Length
61 in
Machine Dimensions Machine Width
40 in

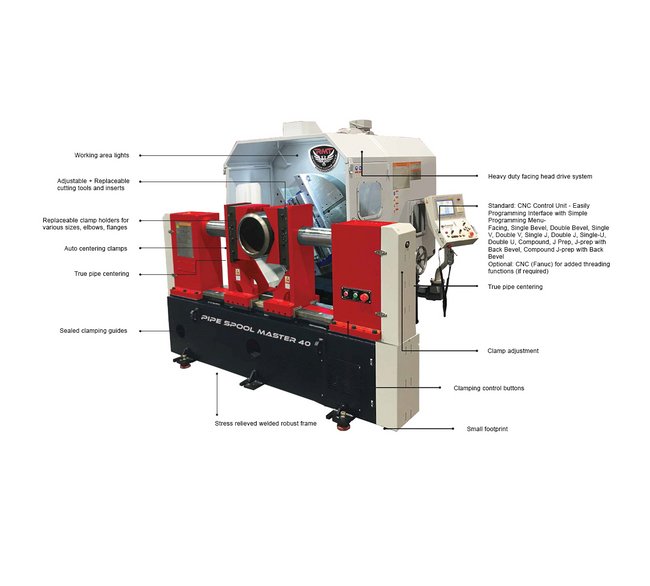

Main Features
Working area lightsAdjustable + Replaceable cutting tools and insertsReplaceable clamp holders for various sizes, elbows, flange'sAuto cantering clampsTrue pipe canteringSealed clamping guidesStress relieved welded robust frameHeavy duty facing head drive systemStandard: CNC Control Unit - Easily Programming Interface with Simple Programming Menu-Facing, Single Bevel, Double Bevel, Single V, Double V, Single J, Double J, Single-U, Double U, Compound, J Prep, J-prep with Back Bevel, Compound J-prep with Back BevelOptional: CNC (Fanuc) for added threading functions (if required)True pipe canteringClamp adjustmentClamping control buttonsSmall footprint
Specifications Application

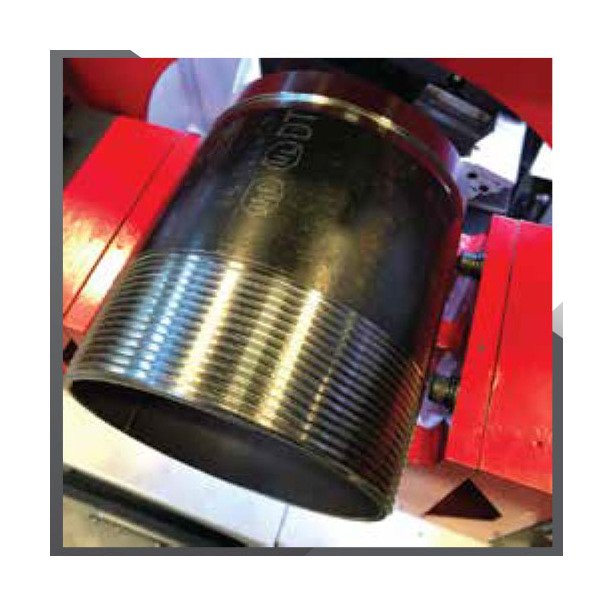

Beveling | Threading
Specifications Center Height
34.64 in
Specifications Complex Bevels U J And C Any
Yes-Fanuc CNC Series Oi-TF
Specifications Complex Bevels U J And C Dimensions
Yes-Fanuc CNC Series Oi-TF
Specifications Facing Head Diameter
10 in
Specifications Machine Capacity Outside Diameter Od
1 to 8 in
Specifications Main Spindle Drive
5.5 hp
Specifications Maximum Spindle Speed
100 to 900 rpm
Specifications Optional Followertracer Attachment
If pipe is out of spec - round or oval, attachment will trace pipe to meet customer specifications
Specifications Weight
3,850 lb
Specifications X Axis Stroke
1.57 in
Specifications Z Axis Stroke
3.75 in
