RMT R-ECO A 4-295 Motorized Initial Pinch Plate Bending Machine
RMT R-ECO A 4-295 Motorized Initial Pinch Plate Bending Machine
SKU:PLA-1dcddf
Experience precision and efficiency with the RMT R-ECO A 4-295 Motorized Plate Bending Machine.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
RMT R-ECO A 4-295 Motorized Initial Pinch Plate Bending Machine
$7,999.00
Quantity: 1
Claim Your Seller Account
RMT R-ECO A 4-295 Motorized Initial Pinch Plate Bending Machine
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT R-ECO A 4-295 is a reliable and cost-efficient solution for small part bending. With robust cast iron frames, electric motors featuring magnetic brakes, and foot pedals for easy operation, this bending machine ensures precision and safety. Equipped with top-quality steel rolls, a solid steel frame, and precision bending capabilities, it offers efficiency and durability for your plate rolling needs. Optional features like Digital Read-Out and hardened rolls enhance its versatility, making it a practical choice for various material types and plate widths.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

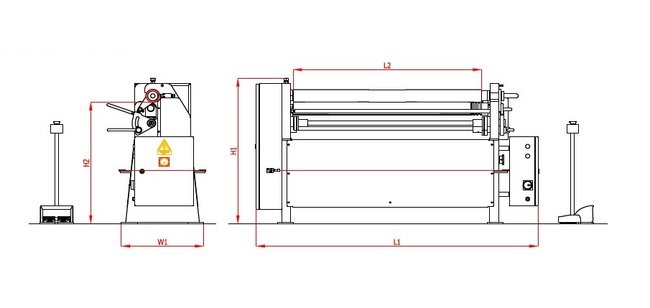

Specifications Bending Capacity T
16 gauge
Specifications Bending Length L2
4 ft 2 in.
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
75 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.95 in
Specifications Weight
1003 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
