RMT R-ECO-A Motorized 3-Roll Bending Machine
RMT R-ECO-A Motorized 3-Roll Bending Machine
SKU:PLA-d793ec
RMT R-ECO-A Motorized 3-Roll Bending Machine: Precision bending for small parts with safety features & efficiency.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
RMT R-ECO-A Motorized 3-Roll Bending Machine
$7,499.99
Quantity: 1
Claim Your Seller Account
RMT R-ECO-A Motorized 3-Roll Bending Machine
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT R-ECO-A Motorized 3-Roll Bending Machine is a versatile solution designed for precision bending of small parts. With a robust frame of cast iron, high-tensile strength steel rolls, and a helical gearbox drive system, it offers efficiency and reliability. Equipped with safety features like a magnetic brake system, foot pedals, emergency stop, and wire grooves for diverse bending needs, this machine ensures operational safety. Ideal for institutions seeking cost-effective solutions meeting high-quality standards.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

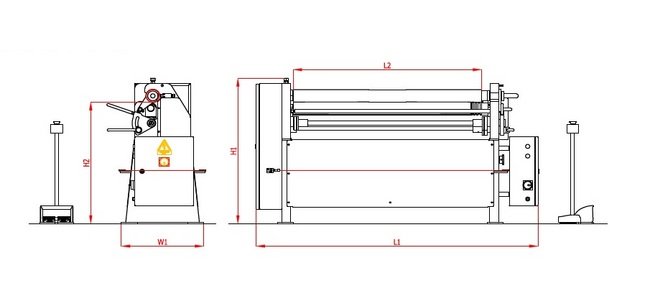

Specifications Bending Capacity T
22 gauge
Specifications Bending Length L2
5 ft
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
86 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.67 in
Specifications Weight
1,102 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
