RMT R-ECO-B 12 Gauge Plate Bending Machine
RMT R-ECO-B 12 Gauge Plate Bending Machine
SKU:PLA-c726a3
Efficient R-ECO-B 12 Gauge Bending Machine for precise small part fabrication. Robust design with foot pedals and safety features.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
RMT R-ECO-B 12 Gauge Plate Bending Machine
$7,999.00
Quantity: 1
Claim Your Seller Account
RMT R-ECO-B 12 Gauge Plate Bending Machine
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT R-ECO-B Series is a precision-engineered motorized initial pinch three rolls bending machine designed for small part bending with low operational costs. Featuring a robust cast iron frame, chain and gearbox drive systems, and electric motors with a magnetic brake, this machine ensures precise bending without drifting. Equipped with foot pedals for control, safety wire, and limit switch, it offers a reliable and efficient solution for small parts fabrication.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

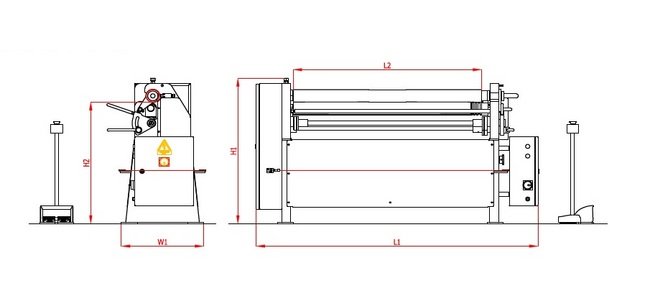

Specifications Bending Capacity T
12 gauge
Specifications Bending Length L2
4 ft 2 in.
Specifications Height H1
27 in
Specifications Length L1
75 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.93 in
Specifications Weight
1268 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
