RMT R-ECO-B 14 Gauge Motorized Three Rolls Bending Machine
RMT R-ECO-B 14 Gauge Motorized Three Rolls Bending Machine
SKU:PLA-935afd
Create precise bends with the RMT R-ECO-B 14 Gauge Motorized Three Rolls Bending Machine. Robust, reliable, and efficient.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT R-ECO-B 14 Gauge Motorized Three Rolls Bending Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT R-ECO-B 14 Gauge Motorized Three Rolls Bending Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT R-ECO-B 14 Gauge Motorized Three Rolls Bending Machine is a reliable solution for small part bending. Featuring a robust cast iron frame, this machine offers precise bending with its helical gearbox and AC motor-powered top and bottom rolls. With safety features like foot pedals, emergency stop, and limit switch, it ensures operator security. Optional features such as digital read-out and motorized back roll adjustment enhance efficiency. Compliant with industry standards and offering high performance, this machine is an economical choice for small parts fabrication needs.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

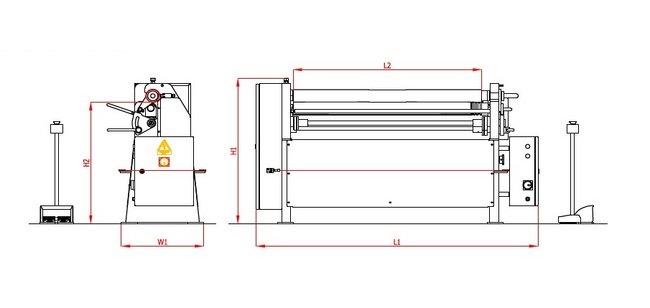

Specifications Bending Capacity T
14 gauge
Specifications Bending Length L2
5 ft
Specifications Height H1
27 in
Specifications Length L1
86 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.93 in
Specifications Weight
1455 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
