RMT R-ECO-B Series 14 Gauge Bending Capacity Motorized Three Rolls Bending Machine
RMT R-ECO-B Series 14 Gauge Bending Capacity Motorized Three Rolls Bending Machine
SKU:PLA-71f3fd
Achieve precision bending with ease using the RMT R-ECO-B Series Bending Machine for small parts with low operation costs.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT R-ECO-B Series 14 Gauge Bending Capacity Motorized Three Rolls Bending Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT R-ECO-B Series 14 Gauge Bending Capacity Motorized Three Rolls Bending Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine is a precision tool designed for efficient small part bending. Featuring robust cast iron frames and chain-driven systems, this machine ensures reliable performance. With electric motors equipped with magnetic brakes for precision control, foot pedals for easy operation, safety wire, and limit switch, it offers both economy and efficiency for small parts manufacturing needs. Optional features such as Digital Read-Out and motorized back roll adjustment enhance accuracy and convenience, making it a versatile choice for a range of applications.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

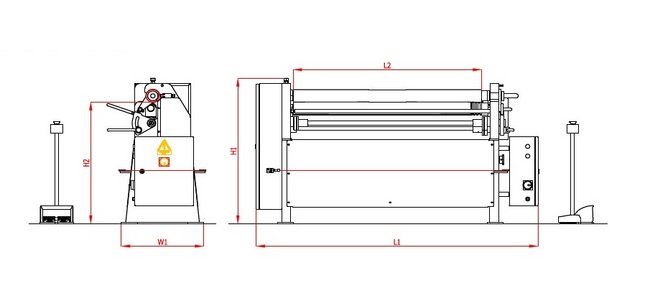

Specifications Bending Capacity T
14 gauge
Specifications Bending Length L2
4 ft 2 in.
Specifications Height H1
27 in
Specifications Length L1
75 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.54 in
Specifications Weight
1168 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
