RMT R-ECO-B Series 22 Gauge Motorized Three Rolls Bending Machine
RMT R-ECO-B Series 22 Gauge Motorized Three Rolls Bending Machine
SKU:PLA-9f6fd7
Enhance small part bending precision with the RMT R-ECO-B Series 22 Gauge Motorized Three Rolls Bending Machine.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT R-ECO-B Series 22 Gauge Motorized Three Rolls Bending Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT R-ECO-B Series 22 Gauge Motorized Three Rolls Bending Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision bending with the RMT R-ECO-B Series 22 Gauge Motorized Three Rolls Bending Machine. Ideal for small parts, this machine boasts a robust frame, chain and gearbox drive systems, and electric motors with magnetic brake. Enjoy safety features like foot pedals, safety wire, and limit switch. With top and bottom rolls powered by helical gearbox and AC motor, this machine offers solid steel construction, manual drop-end, and conical bending device for efficient operations. Optional features include digital read-out and motorized back roll adjustment.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

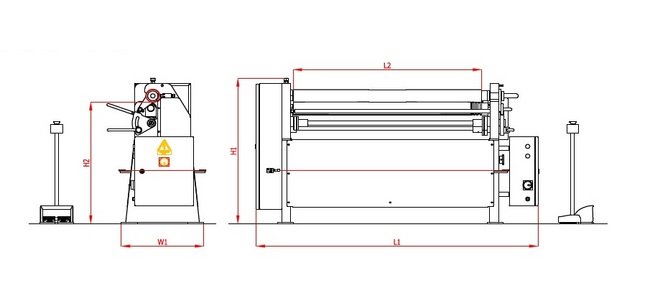

Specifications Bending Capacity T
22 gauge
Specifications Bending Length L2
6 ft 7 in.
Specifications Height H1
27 in
Specifications Length L1
105 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.54 in
Specifications Weight
1499 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
