RMT R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine
RMT R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine
SKU:PLA-b7fa8e
Efficiently bend small parts with precision using the RMT R-ECO-B Series Bending Machine. Reliable, economical, and versatile for industrial needs.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your small part bending needs efficiently with the RMT R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine. Featuring robust construction, magnetic brake system, and foot pedal controls, this machine offers precision bending for 16 gauge materials. With optional features like digital read-out and motorized back roll adjustment, it combines reliability with versatility, making it an economical choice for various industrial applications.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

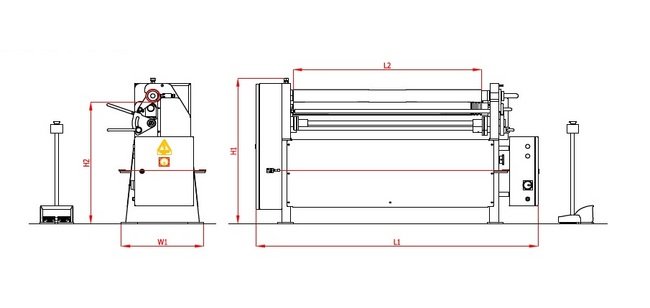

Specifications Bending Capacity T
16 gauge
Specifications Bending Length L2
6 ft 7 in.
Specifications Height H1
27 in
Specifications Length L1
105 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.93 in
Specifications Weight
1653 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
