RMT R-ECO-C Series Motorized Initial Pinch 12 Gauge Bending Machine
RMT R-ECO-C Series Motorized Initial Pinch 12 Gauge Bending Machine
SKU:PLA-9a9757
Efficient and reliable precision bending for small parts with the RMT R-ECO-C Series Motorized Bending Machine.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
RMT R-ECO-C Series Motorized Initial Pinch 12 Gauge Bending Machine
$7,499.99
Quantity: 1
Claim Your Seller Account
RMT R-ECO-C Series Motorized Initial Pinch 12 Gauge Bending Machine
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

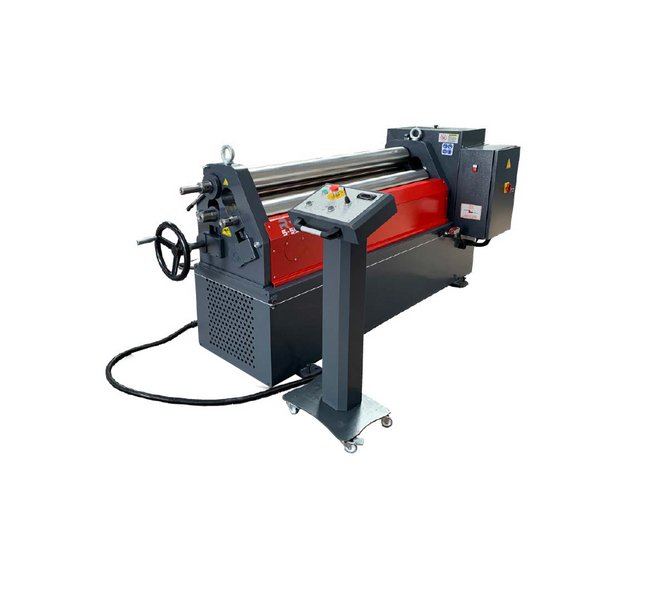

The RMT R-ECO-C Series Motorized Initial Pinch Bending Machine is tailored for efficient small part bending with low operational costs. Built with a robust cast iron frame or steel welded frame, it features chain and gearbox drive systems, and electric motors with a magnetic brake to prevent drifting. Equipped with foot pedals for convenient control, safety measures like a safety wire and limit switch ensure operational safety. This economical and reliable machine offers precision bending capabilities, making it an ideal choice for small parts fabrication.
Product Specifications
Additional Information
RMT R-ECO series initial pinch plate rolls are generally for lighter capacity applications and come in manual, motorized or hydraulic. They work by "pinching" the flat sheet between top and bottom rolls while the side (back) roll moves upward to contact and then bend the sheet. When rotation of the rollers is activated, the sheet exits at a given radius. With the sheet cut to the developed length and the bending roll properly positioned; the part is rolled into a cylindrical form, where it can then be welded at the seam to produce a cylinder. The top roll is in a fixed position; the bottom pinch roll can move up/down to pinch the material. The side roll is also adjustable by manually, motorized or hydraulically. To remove a rolled cylinder, it must be extracted from off of the top roll. Machines are generally equipped with release mechanism on the top roll to allow extraction of the cylinder. Typical methods are either a forward tilting or releasing top roll or a removable end yoke. In most applications, these machines require removal and re-insertion of the sheet in order to pre-bend both ends. They are cost effective but in contrast may be more labor intensive in a production setting.
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back rollExtended roll shafts for profile and pipe bending operations

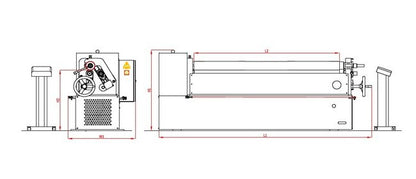

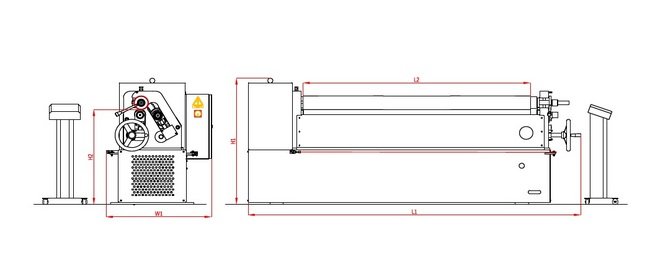

Specifications Bending Capacity T
12 gauge
Specifications Bending Length L2
6 ft 7 in.
Specifications Height H1
47 in
Specifications Length L1
117 in
Specifications Main Motor Power
3 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
1.5 hp
Specifications Top Roll Diameter D
4.72 in
Specifications Weight
3208 lb
Specifications Width W
37 in
Specifications Working Height H2
36 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354"/0.511")
