RMT R-ECO-D 3/8'' Bending Capacity Motorized Three Rolls Bending Machine
RMT R-ECO-D 3/8'' Bending Capacity Motorized Three Rolls Bending Machine
SKU:PLA-32b6df
Enhance small parts bending efficiency with the RMT R-ECO-D 3/8'' Motorized Three Rolls Bending Machine. Robust design for precise bending performance.
Regular price
$14,999.00
Regular price
Sale price
$14,999.00
Unit price
per
Initiate Order
RMT R-ECO-D 3/8'' Bending Capacity Motorized Three Rolls Bending Machine
$14,999.00
Quantity: 1
Claim Your Seller Account
RMT R-ECO-D 3/8'' Bending Capacity Motorized Three Rolls Bending Machine
$14,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT R-ECO-D Series Motorized Initial Pinch Three Rolls Bending Machine is a versatile solution designed for small parts bending with cost-efficiency in mind. Featuring a robust construction with cast iron frames or steel welded frames, this machine ensures durability and reliability. Equipped with chain and gearbox drive systems, as well as electric motors with a magnetic brake to prevent drifting, it offers precision bending capabilities. With standard features like top and bottom rolls powered by helical gearbox and AC motor, this machine provides efficient performance for various bending applications. Optional features such as digital read-out for the rear roll and motorized bottom roll further enhance its functionality, making it a valuable asset for industrial workshops.
Product Specifications
Additional Information
RMT R-ECO series initial pinch plate rolls are generally for lighter capacity applications and come in manual, motorized or hydraulic. They work by "pinching" the flat sheet between top and bottom rolls while the side (back) roll moves upward to contact and then bend the sheet. When rotation of the rollers is activated, the sheet exits at a given radius. With the sheet cut to the developed length and the bending roll properly positioned; the part is rolled into a cylindrical form, where it can then be welded at the seam to produce a cylinder. The top roll is in a fixed position; the bottom pinch roll can move up/down to pinch the material. The side roll is also adjustable by manually, motorized or hydraulically. To remove a rolled cylinder, it must be extracted from off of the top roll. Machines are generally equipped with release mechanism on the top roll to allow extraction of the cylinder. Typical methods are either a forward tilting or releasing top roll or a removable end yoke. In most applications, these machines require removal and re-insertion of the sheet in order to pre-bend both ends. They are cost effective but in contrast may be more labor intensive in a production setting.
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsExtended roll shafts for profile and pipe bending operationsProfile and section bending rolls setMotorized bottom roll (pinching)Segmented plastic rolls for composite bending

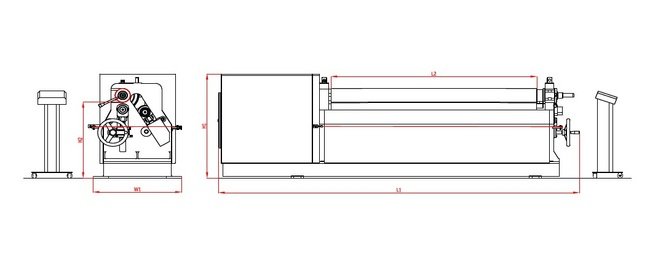

Specifications Bending Capacity T
3/8 in
Specifications Bending Length L2
3 ft 4 in.
Specifications Height H1
45 mm
Specifications Length L1
101 mm
Specifications Main Motor Power
5.5 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
4 kW
Specifications Top Roll Diameter D
7.08 mm
Specifications Weight
5390 kg
Specifications Width W
35 mm
Specifications Working Height H2
33 mm
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Mobile control panelConical bending deviceManual lubrication pointsTop roll support systemPrecision bending with a motor brakeMotorized adjustment of back roll
