The RMT R-ECO-D Series Motorized Initial Pinch Three Rolls Bending Machine is a reliable solution designed for efficient small part bending operations. Featuring robust cast iron frames, chain and gearbox drive systems, and electric motors with magnetic brakes, this machine ensures precise bending with reduced drifting. The foot pedals offer forward, reverse, and emergency stop functions with added safety measures like a safety wire and limit switch. With optional features such as digital read-out, extended roll shafts, and motorized bottom roll, this machine offers versatility for diverse bending needs.
Product Specifications
Additional Information
RMT R-ECO series initial pinch plate rolls are generally for lighter capacity applications and come in manual, motorized or hydraulic. They work by "pinching" the flat sheet between top and bottom rolls while the side (back) roll moves upward to contact and then bend the sheet. When rotation of the rollers is activated, the sheet exits at a given radius. With the sheet cut to the developed length and the bending roll properly positioned; the part is rolled into a cylindrical form, where it can then be welded at the seam to produce a cylinder. The top roll is in a fixed position; the bottom pinch roll can move up/down to pinch the material. The side roll is also adjustable by manually, motorized or hydraulically. To remove a rolled cylinder, it must be extracted from off of the top roll. Machines are generally equipped with release mechanism on the top roll to allow extraction of the cylinder. Typical methods are either a forward tilting or releasing top roll or a removable end yoke. In most applications, these machines require removal and re-insertion of the sheet in order to pre-bend both ends. They are cost effective but in contrast may be more labor intensive in a production setting.
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsExtended roll shafts for profile and pipe bending operationsProfile and section bending rolls setMotorized bottom roll (pinching)Segmented plastic rolls for composite bending

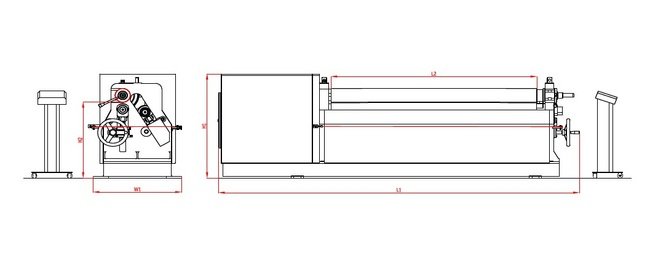

Specifications Bending Capacity T
7/32 in
Specifications Bending Length L2
8 ft 3 in.
Specifications Height H1
45 mm
Specifications Length L1
160 mm
Specifications Main Motor Power
5.5 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
4 kW
Specifications Top Roll Diameter D
7.08 mm
Specifications Weight
6889 kg
Specifications Width W
35 mm
Specifications Working Height H2
33 mm
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Mobile control panelConical bending deviceManual lubrication pointsTop roll support systemPrecision bending with a motor brakeMotorized adjustment of back roll
