RMT R-HYBRID 10-2677 Plate Bending Machine
RMT R-HYBRID 10-2677 Plate Bending Machine
SKU:PLA-17b8f8
Revolutionize plate bending with the RMT R-HYBRID 10-2677 Machine: unmatched precision, safety, and efficiency for institutional needs.
Regular price
$75,000.00
Regular price
Sale price
$75,000.00
Unit price
per
Initiate Order
RMT R-HYBRID 10-2677 Plate Bending Machine
$75,000.00
Quantity: 1
Claim Your Seller Account
RMT R-HYBRID 10-2677 Plate Bending Machine
$75,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

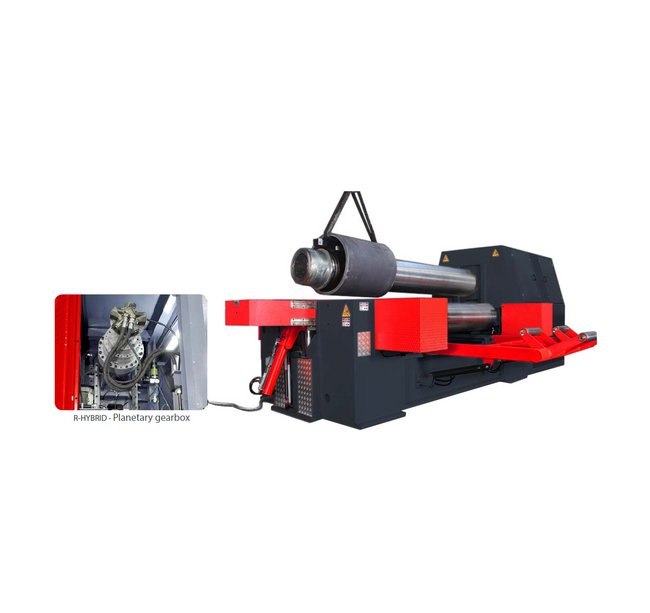

The RMT R-HYBRID 10-2677 Plate Bending Machine from the trusted R-HYBRID Series is a game-changer in medium and thick plate bending for institutional and industrial applications. Featuring a unique variable-geometry design that functions akin to a press brake, this machine enables extreme rolling capabilities. With a top roll diameter of 26.77 inches, lower roll diameter of 23.62 inches, and top roll bending force of 880 tons, it offers superior bending precision and efficiency. Equipped with cutting-edge features like a PLC control unit, dual-speed operation, induction-hardened rolls, and top roll hydraulic opening device, this machine ensures optimal performance and safety. Plus, its stress-relieved high yield steel construction and world-standard electrical and hydraulic components make it a reliable asset for demanding projects.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production

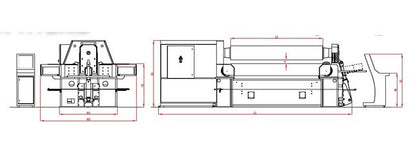

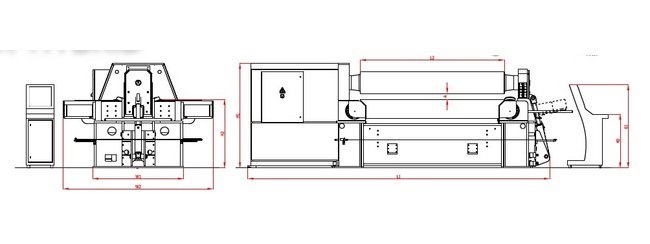

Specifications Bending Length L2
10 ft 2 in.
Specifications Height H1
80 in
Specifications Hydraulic Tank Capacity L
238 gal
Specifications Length L1
362 in
Specifications Lower Roll Diameter
23.62 in
Specifications Maximum Pass Through A
8 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
2 1/2 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
3-1/2 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
3 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
880 Tons
Specifications Top Roll Diameter D
26.77 in
Specifications Total Width W2
178 in
Specifications Weight
165,000 lb
Specifications Width W1
114 in
Specifications Working Height H2
120 in
Standard Features
Variable geometry type rolls movement.PLC control unitDual speedCone bending with dual cone bending roller bearingInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls machined by CNC Lathes with optimal crown (special crown upon request)Polished rollsTop and lower rolls electronically positioned and synchronized with PLC and high-end precision digital scalesHigh stroke top rollBraking system on side rollsProtected slide surfacesMachine body constructed of stress-relieved high yield steelRolls seated in spherical bearingsTop roll hydraulic opening device (drop end) with easy pull out systemTop roll driven with hydraulic motor and planetary gear boxSafety barrierElectrical and hydraulic protection against overloadsWorld standard electrical and hydraulic components (parts stocked by RMT or available off-the shelf from your local supplier)Adjustable hydraulic pressure on bottom roll (crowning compensation)Mobile control panelManual lubricationWelding possibility on the machine
