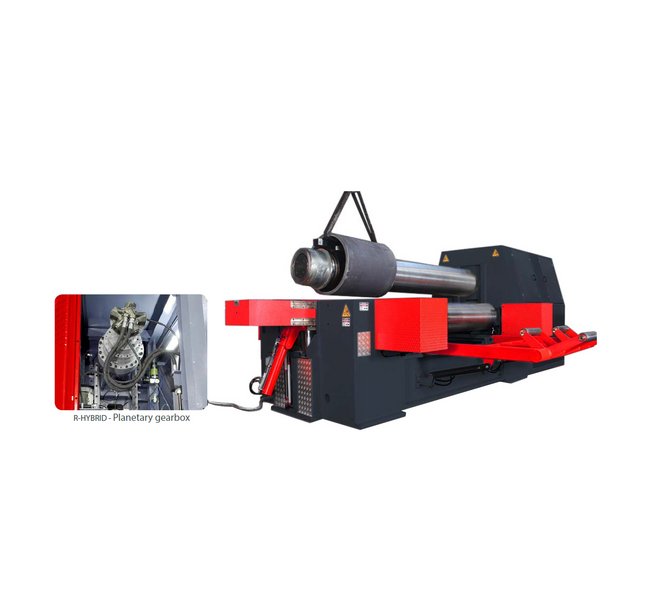

The RMT R-HYBRID 8-2205 Variable Geometry Hydraulic Three Rolls Bending Machine revolutionizes plate rolling with its innovative design that combines the precision of a press brake with the versatility of a traditional plate roll. Featuring a top roll diameter of 22.05 inches and a top roll bending force of 484 tons, this machine is engineered for medium to thick plate bending. With advanced features like variable geometry rolls movement, PLC control, induction hardened rolls, and world-standard electrical and hydraulic components, the R-HYBRID ensures exceptional performance and reliability for industrial applications.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production

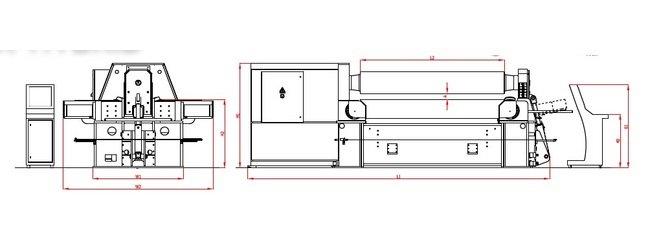

Specifications Bending Length L2
8 ft 6 in.
Specifications Height H1
105 in
Specifications Hydraulic Tank Capacity L
238 gal
Specifications Length L1
238 in
Specifications Lower Roll Diameter
19.69 in
Specifications Maximum Pass Through A
6 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
1 9/16 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
2 3/8 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
1 7/8 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
484 Tons
Specifications Top Roll Diameter D
22.05 in
Specifications Total Width W2
139 in
Specifications Weight
93,696 lb
Specifications Width W1
89 in
Specifications Working Height H2
69 in
Standard Features
Variable geometry type rolls movement.PLC control unitDual speedCone bending with dual cone bending roller bearingInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls machined by CNC Lathes with optimal crown (special crown upon request)Polished rollsTop and lower rolls electronically positioned and synchronized with PLC and high-end precision digital scalesHigh stroke top rollBraking system on side rollsProtected slide surfacesMachine body constructed of stress-relieved high yield steelRolls seated in spherical bearingsTop roll hydraulic opening device (drop end) with easy pull out systemTop roll driven with hydraulic motor and planetary gear boxSafety barrierElectrical and hydraulic protection against overloadsWorld standard electrical and hydraulic components (parts stocked by RMT or available off-the shelf from your local supplier)Adjustable hydraulic pressure on bottom roll (crowning compensation)Mobile control panelManual lubricationWelding possibility on the machine
