Revolutionize plate bending with the RMT R-Hybrid Hydraulic Three Rolls Bending Machine. Ideal for medium to thick plate bending applications.
Regular price
$67,500.00
Regular price
Sale price
$67,500.00
Unit price
per
Initiate Order
RMT R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine
$67,500.00
Quantity: 1
Claim Your Seller Account
RMT R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine
$67,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

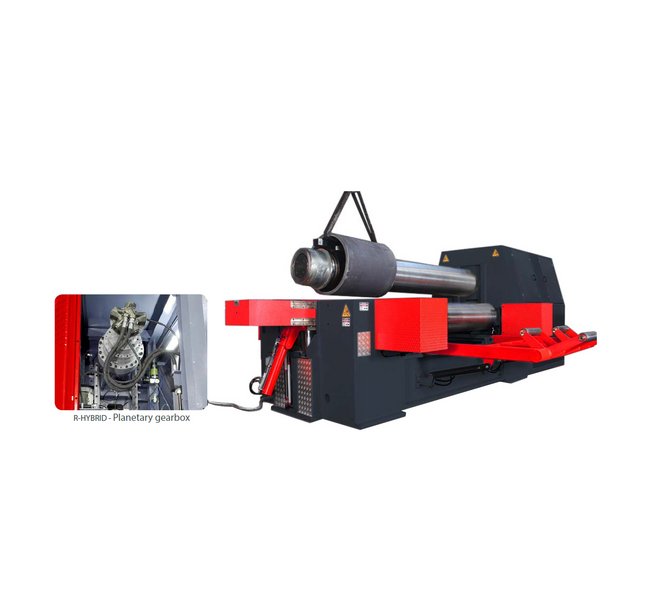

The RMT R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine redefines plate rolling with its innovative design, operating akin to a press brake for extreme bending capabilities. Featuring adjustable V die-like lower rolls and a top roll functioning as a press brake ram, this machine is perfect for medium to thick plate bending applications. With a top roll diameter of 24.40 inches and a top roll bending force of 616 tons, it offers precise and powerful bending performance. Additional features such as dual speed control, induction hardened rolls, and advanced hydraulic systems ensure optimal results for industrial and institutional projects.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production

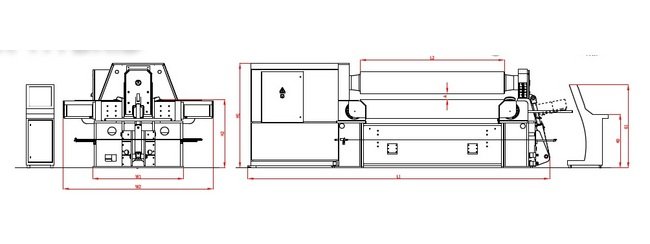

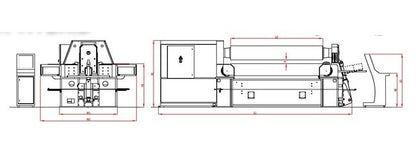

Specifications Bending Length L2
10 ft 2 in.
Specifications Height H1
78 in
Specifications Hydraulic Tank Capacity L
238 gal
Specifications Length L1
354 in
Specifications Lower Roll Diameter
22.04 in
Specifications Maximum Pass Through A
7 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
2 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
3 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
2 1/2 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
616 Tons
Specifications Top Roll Diameter D
24.40 in
Specifications Total Width W2
173 in
Specifications Weight
143,000 lb
Specifications Width W1
111 in
Specifications Working Height H2
118 in
Standard Features
Variable geometry type rolls movement.PLC control unitDual speedCone bending with dual cone bending roller bearingInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls machined by CNC Lathes with optimal crown (special crown upon request)Polished rollsTop and lower rolls electronically positioned and synchronized with PLC and high-end precision digital scalesHigh stroke top rollBraking system on side rollsProtected slide surfacesMachine body constructed of stress-relieved high yield steelRolls seated in spherical bearingsTop roll hydraulic opening device (drop end) with easy pull out systemTop roll driven with hydraulic motor and planetary gear boxSafety barrierElectrical and hydraulic protection against overloadsWorld standard electrical and hydraulic components (parts stocked by RMT or available off-the shelf from your local supplier)Adjustable hydraulic pressure on bottom roll (crowning compensation)Mobile control panelManual lubricationWelding possibility on the machine
