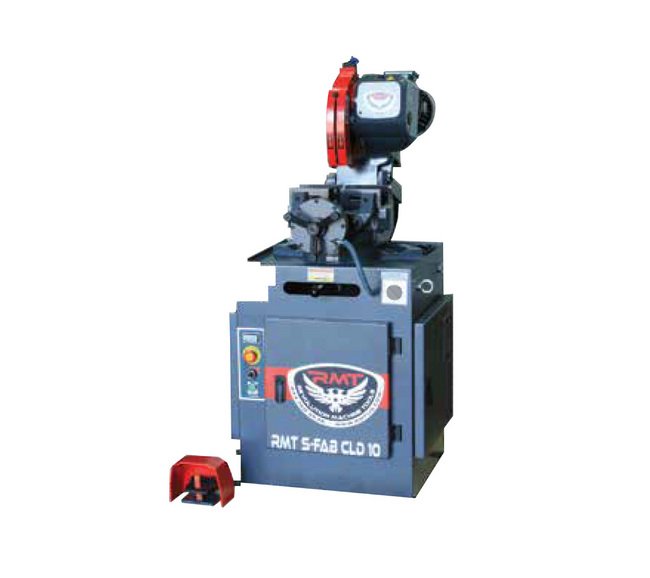

RMT S-FAB 10in Heavy Duty Semi-Automatic Cold Saw
RMT S-FAB 10in Heavy Duty Semi-Automatic Cold Saw
SKU:BAN-e17c14
Powerful and precise RMT S-FAB 10in Cold Saw for industrial cutting applications. Adjustable cutting speed, efficient chip removal, and safety features for reliable operation.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
RMT S-FAB 10in Heavy Duty Semi-Automatic Cold Saw
$4,799.99
Quantity: 1
Claim Your Seller Account
RMT S-FAB 10in Heavy Duty Semi-Automatic Cold Saw
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-FAB Series 10 Inch Heavy Duty Cold Saw combines precision cutting with efficient operation. With the ability to adjust cutting speed and stroke, and equipped with a counter for part tracking, this semi-automatic saw offers flexibility and accuracy. The chip box and coolant system ensure a clean work environment, while the foot pedal operation enhances operator efficiency and safety. Meeting CE regulations and equipped with safety features like an emergency stop, this cold saw is ideal for industrial use.
Product Specifications
Capacities Capacity At 45 Degree Head Swivel Angle Rectangle
3.5 x 2.35 in
Capacities Capacity At 45 Degree Head Swivel Angle Round
2.75 in
Capacities Capacity At 45 Degree Head Swivel Angle Square
2.36 x 2.36 in
Capacities Capacity At 90 Degree Head Swivel Angle Rectangle
4.7 x 2.35 in
Capacities Capacity At 90 Degree Head Swivel Angle Round
4 in
Capacities Capacity At 90 Degree Head Swivel Angle Square
2.75 x 2.75 in

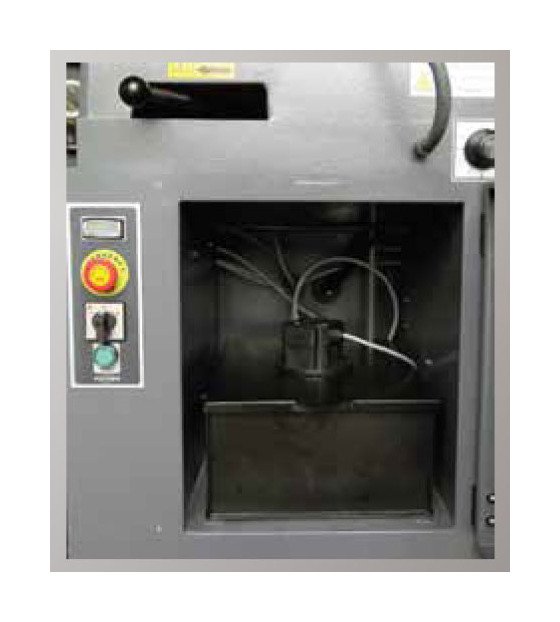

Chip Box And Coolant
Chips are collected in the scrap drawer and the coolant is recycled by the coolant pump. The drawer can be easily accessed for scrap removal.

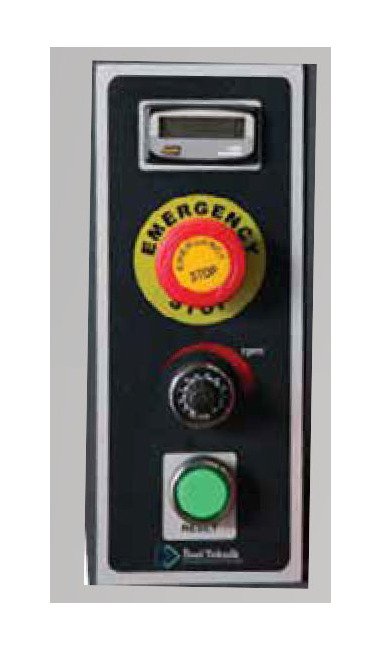

Counter Variable Speed And Electrical Regulations
Operator can keep track of the part count by checking the LCD display. This can help reduce extra work hours as well as excess scrap. The variable speed between 20-80 rpm allows you to optimize the cut for different materials and quality of materials.All RMT equipment meets with CE regulations and an emergency stop is strategically placed for easy access if needed. The electrical system can also be integrated with a TX4 servo positioning stopper system and a high end PLC system.

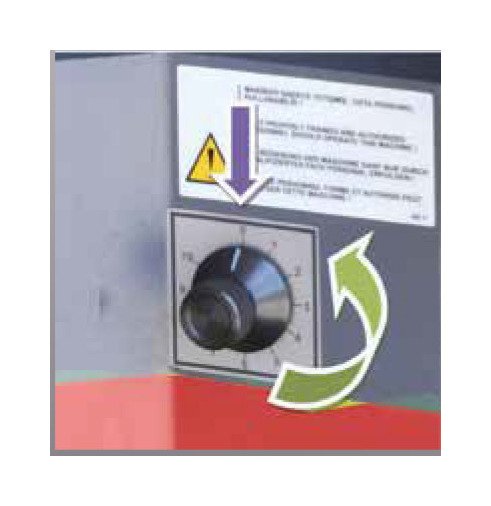

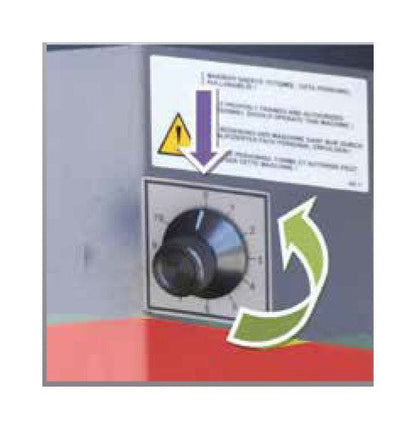

Cutting Speed Adjustment
All semi-automatic systems are equipped with a front hydraulic oil flow valve to allow for on the fly cutting speed adjustments.

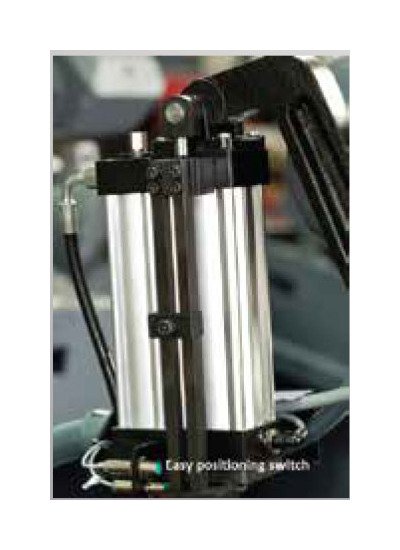

Cutting Stroke Adjustment
Precision cast heavy duty cutting head powered by electrical motor transfers rotation from the motor to the saw with high quality worm and helical gears.The head consists of a saw motor, worm and helical gears, circular saw (optional), movable and fixed protection covers.

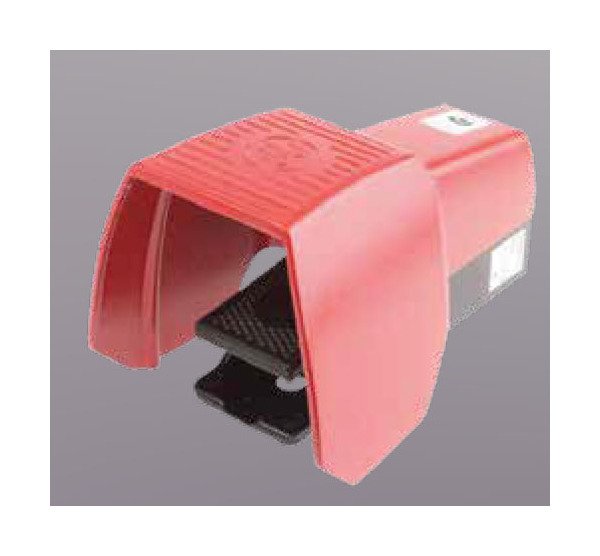

Foot Pedal Operated
The semi-automatic foot pedal helps the operator be more efficient as its long cable allows for flexible working conditions.
Machine Dimensions Machine Height
55 in
Machine Dimensions Machine Length
40 in
Machine Dimensions Machine Width
23 in
Packing Demensions Packing Height
67 in
Packing Demensions Packing Length
47 in
Packing Demensions Packing Width
30 in
Saw Blade Saw Blade Bore Size
1.25 in
Saw Blade Saw Blade Diameter
10 in
Saw Blade Saw Blade Pin Hole Diameter
0.45 in
Saw Blade Saw Blade Pin Hole Size
8 in
Saw Blade Saw Blade Pivot Center Diameter
2.5 in
Specifications Air Pressure Consumption
6 bar | 240 L/min
Specifications Blade Speed
20 to 80 rpm
Specifications Control Voltage
24 V
Specifications Coolant Pump Motor Power
0.08 hp
Specifications Features
Semi-Automatic
Specifications Frequency
60 Hz
Specifications Gross Weight
575 lb
Specifications Head Swivel 90 Degree Angle Tolerance
45 º
Specifications Head Swivel Angle
45 º | 90 º
Specifications Main Voltage
220 V
Specifications Maximum Saw Blade Diameter
10 in
Specifications Motor Power
1.75 to 2.5 hp
Specifications Net Weight
530 lb
Specifications Nominal Current
4.7 A
Specifications Phase
3
Specifications Power
2.5 hp
Specifications Type
Cold Saw
