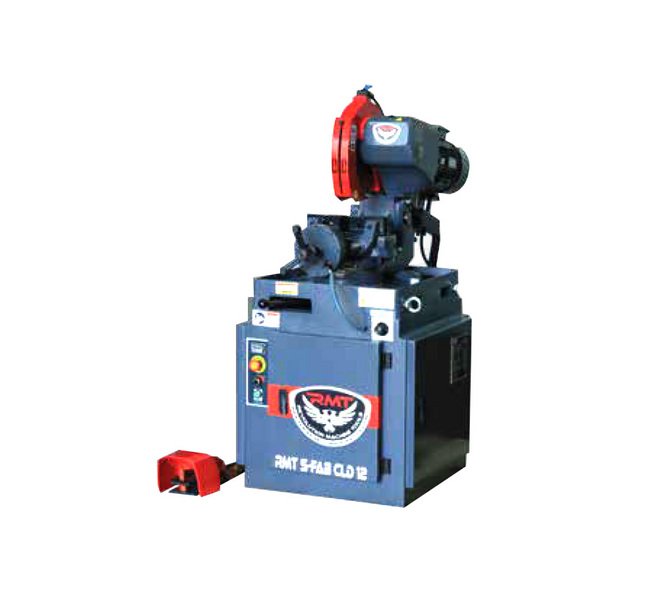

RMT S-FAB 12 Inch Heavy Duty Semi-Automatic Cold Saw
RMT S-FAB 12 Inch Heavy Duty Semi-Automatic Cold Saw
SKU:BAN-93f083
Enhance efficiency with the RMT S-FAB 12 Inch Heavy Duty Semi-Automatic Cold Saw, designed for precision cutting in industrial settings.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
RMT S-FAB 12 Inch Heavy Duty Semi-Automatic Cold Saw
$3,499.99
Quantity: 1
Claim Your Seller Account
RMT S-FAB 12 Inch Heavy Duty Semi-Automatic Cold Saw
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-FAB Series 12 Inch Heavy Duty Semi-Automatic Cold Saw is a powerhouse designed for precision cutting in industrial settings. With features like Cutting Speed Adjustment for on-the-fly speed control, Chip Box and Coolant system for efficient waste management, and Foot Pedal Operation for enhanced workflow flexibility, this saw enhances productivity while ensuring precision. Compliant with CE regulations, this cold saw meets high safety and quality standards, making it ideal for government and institutional procurement.
Product Specifications
Capacities Capacity At 45 Degree Head Swivel Angle Rectangle
3.5 x 2.35 in
Capacities Capacity At 45 Degree Head Swivel Angle Round
3.5 in
Capacities Capacity At 45 Degree Head Swivel Angle Square
3.15 x 3.15 in
Capacities Capacity At 90 Degree Head Swivel Angle Rectangle
4.7 x 2.35 in
Capacities Capacity At 90 Degree Head Swivel Angle Round
4 in
Capacities Capacity At 90 Degree Head Swivel Angle Square
3.35 x 3.35 in

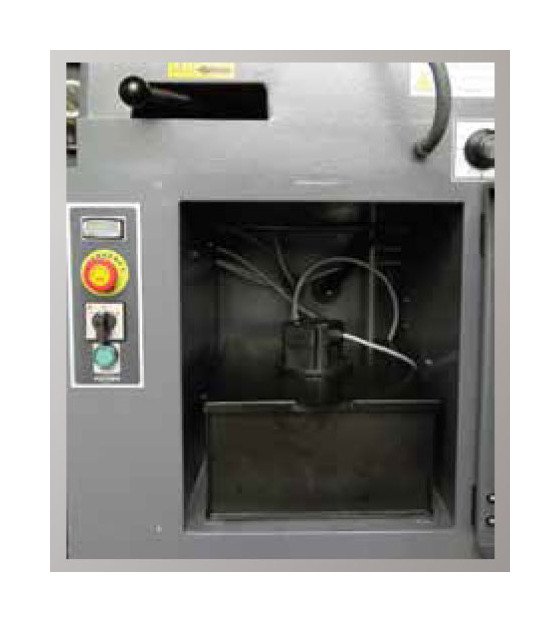

Chip Box And Coolant
Chips are collected in the scrap drawer and the coolant is recycled by the coolant pump. The drawer can be easily accessed for scrap removal.

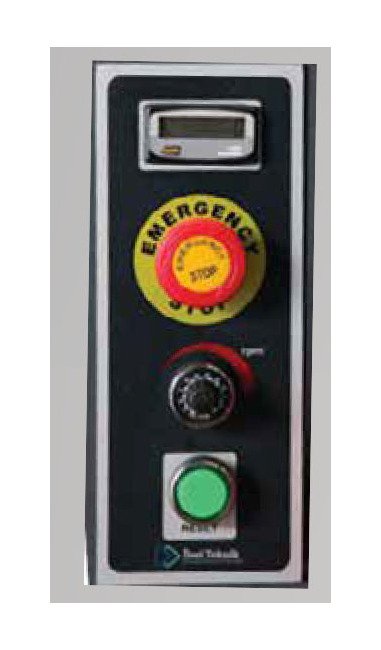

Counter Variable Speed And Electrical Regulations
Operator can keep track of the part count by checking the LCD display. This can help reduce extra work hours as well as excess scrap. The variable speed between 20-80 rpm allows you to optimize the cut for different materials and quality of materials.All RMT equipment meets with CE regulations and an emergency stop is strategically placed for easy access if needed. The electrical system can also be integrated with a TX4 servo positioning stopper system and a high end PLC system.

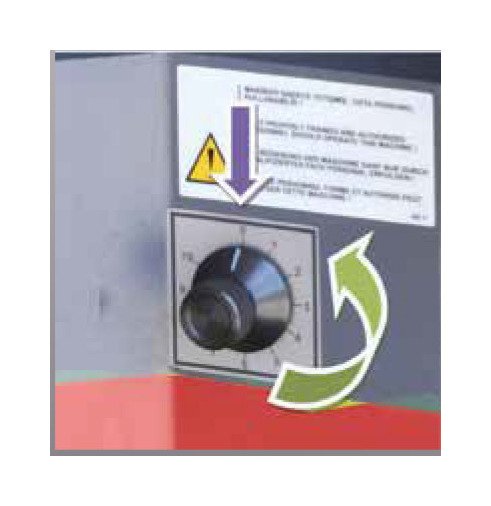

Cutting Speed Adjustment
All semi-automatic systems are equipped with a front hydraulic oil flow valve to allow for on the fly cutting speed adjustments.

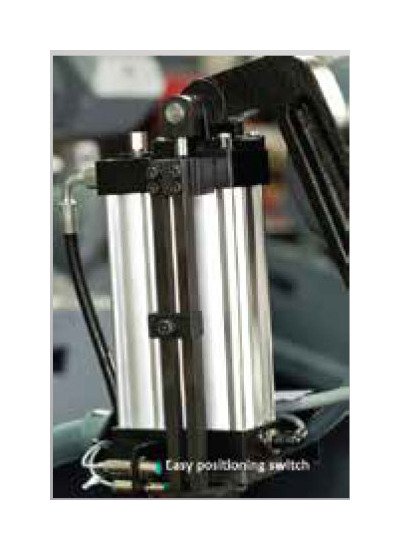

Cutting Stroke Adjustment
Precision cast heavy duty cutting head powered by electrical motor transfers rotation from the motor to the saw with high quality worm and helical gears.The head consists of a saw motor, worm and helical gears, circular saw (optional), movable and fixed protection covers.

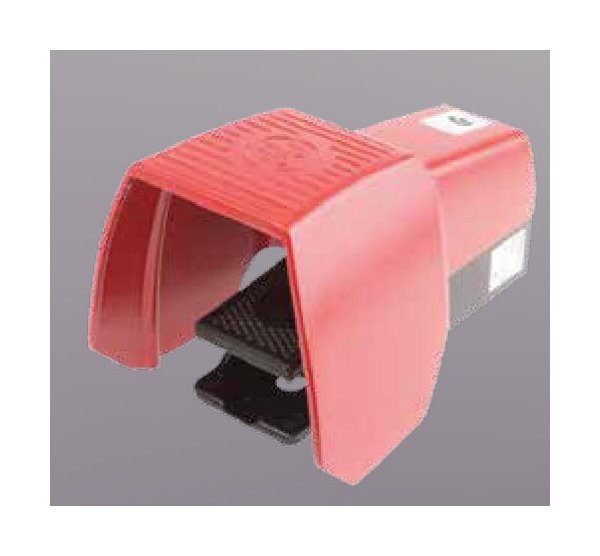

Foot Pedal Operated
The semi-automatic foot pedal helps the operator be more efficient as its long cable allows for flexible working conditions.
Machine Dimensions Machine Height
55 in
Machine Dimensions Machine Length
40 in
Machine Dimensions Machine Width
23 in
Packing Demensions Packing Height
67 in
Packing Demensions Packing Length
47 in
Packing Demensions Packing Width
30 in
Saw Blade Saw Blade Bore Size
1.25 in
Saw Blade Saw Blade Diameter
12 in
Saw Blade Saw Blade Pin Hole Diameter
0.45 in
Saw Blade Saw Blade Pin Hole Size
8 in
Saw Blade Saw Blade Pivot Center Diameter
2.5 in
Specifications Air Pressure Consumption
6 bar | 240 L/min
Specifications Blade Speed
20 to 80 rpm
Specifications Control Voltage
24 V
Specifications Coolant Pump Motor Power
0.08 hp
Specifications Features
Semi-Automatic
Specifications Frequency
60 Hz
Specifications Gross Weight
685 lb
Specifications Head Swivel 90 Degree Angle Tolerance
45 º
Specifications Head Swivel Angle
45 º | 90 º
Specifications Main Voltage
220 V
Specifications Maximum Saw Blade Diameter
12 in
Specifications Motor Power
2.4 to 3 hp
Specifications Net Weight
640 lb
Specifications Nominal Current
5.58 A
Specifications Phase
3
Specifications Power
3 hp
Specifications Type
Cold Saw
