RMT S-FAB 14 Inch Heavy Duty Semi-Automatic Cold Saw
RMT S-FAB 14 Inch Heavy Duty Semi-Automatic Cold Saw
SKU:BAN-cde8e3
Enhance industrial cutting efficiency with the RMT S-FAB 14 Inch Semi-Automatic Cold Saw. Ideal for precision cutting in heavy-duty applications.
Regular price
$5,599.00
Regular price
Sale price
$5,599.00
Unit price
per
Initiate Order
RMT S-FAB 14 Inch Heavy Duty Semi-Automatic Cold Saw
$5,599.00
Quantity: 1
Claim Your Seller Account
RMT S-FAB 14 Inch Heavy Duty Semi-Automatic Cold Saw
$5,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

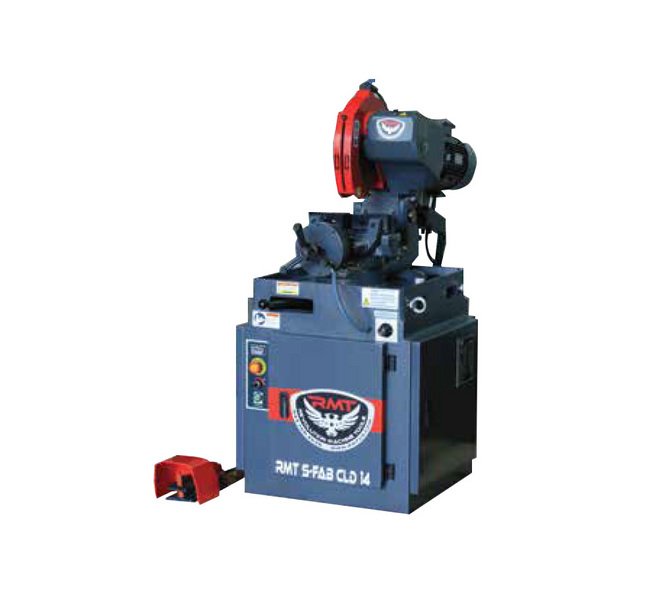

The RMT S-FAB Series 14 Inch Heavy Duty Semi-Automatic Cold Saw combines precision cutting with advanced features ideal for industrial settings. With a maximum blade diameter of 14 inches, head swivel angles of 45º and 90º, and a power of 3 hp, this cold saw offers exceptional cutting performance. Equipped with cutting speed and stroke adjustments, a counter for part tracking, a chip box and coolant system, and foot pedal operation, this saw enhances efficiency and usability. Compliant with CE regulations and featuring safety measures like emergency stops, it meets stringent quality standards for institutional procurement.
Product Specifications
Capacities Capacity At 45 Degree Head Swivel Angle Rectangle
3.5 x 3.5 in
Capacities Capacity At 45 Degree Head Swivel Angle Round
4.3 in
Capacities Capacity At 45 Degree Head Swivel Angle Square
3.5 x 3.5 in
Capacities Capacity At 90 Degree Head Swivel Angle Rectangle
4.8 x 3.15 in
Capacities Capacity At 90 Degree Head Swivel Angle Round
4.5 in
Capacities Capacity At 90 Degree Head Swivel Angle Square
4 x 4 in

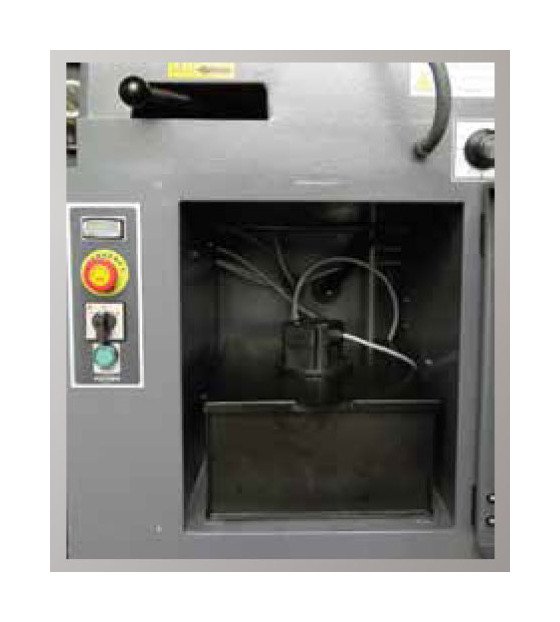

Chip Box And Coolant
Chips are collected in the scrap drawer and the coolant is recycled by the coolant pump. The drawer can be easily accessed for scrap removal.

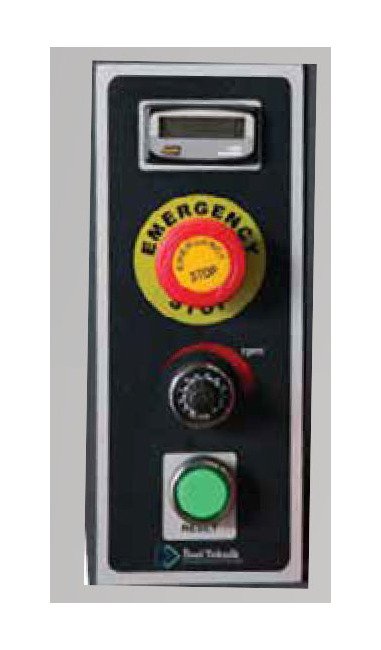

Counter Variable Speed And Electrical Regulations
Operator can keep track of the part count by checking the LCD display. This can help reduce extra work hours as well as excess scrap. The variable speed between 20-80 rpm allows you to optimize the cut for different materials and quality of materials.All RMT equipment meets with CE regulations and an emergency stop is strategically placed for easy access if needed. The electrical system can also be integrated with a TX4 servo positioning stopper system and a high end PLC system.

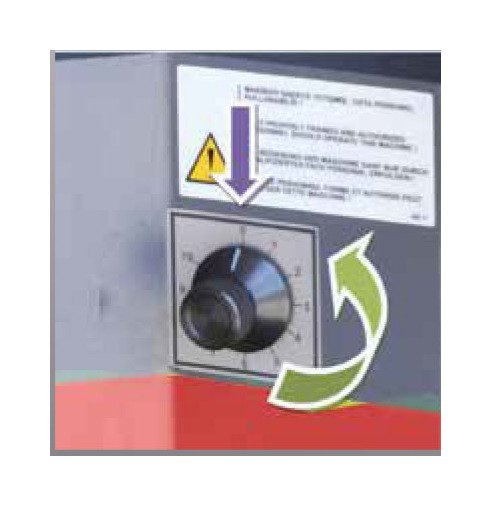

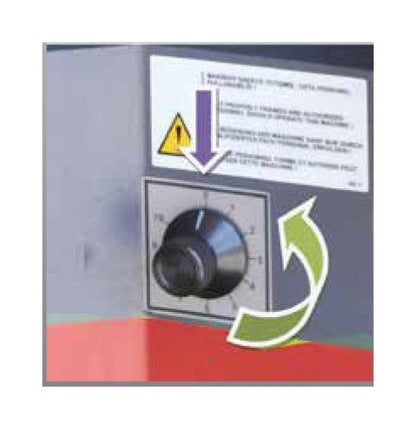

Cutting Speed Adjustment
All semi-automatic systems are equipped with a front hydraulic oil flow valve to allow for on the fly cutting speed adjustments.

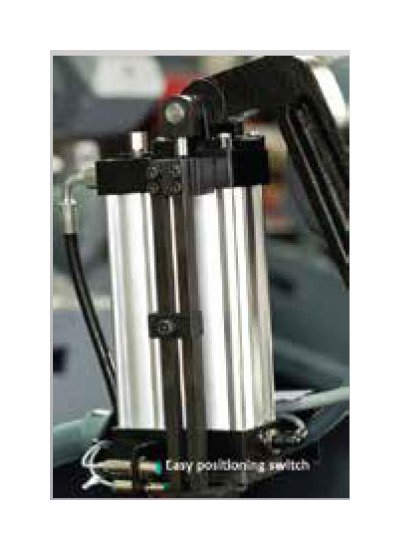

Cutting Stroke Adjustment
Precision cast heavy duty cutting head powered by electrical motor transfers rotation from the motor to the saw with high quality worm and helical gears.The head consists of a saw motor, worm and helical gears, circular saw (optional), movable and fixed protection covers.

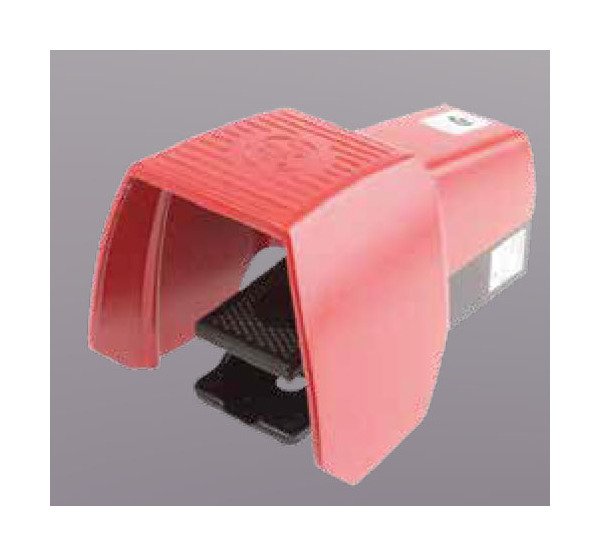

Foot Pedal Operated
The semi-automatic foot pedal helps the operator be more efficient as its long cable allows for flexible working conditions.
Machine Dimensions Machine Height
55 in
Machine Dimensions Machine Length
40 in
Machine Dimensions Machine Width
23 in
Packing Demensions Packing Height
67 in
Packing Demensions Packing Length
47 in
Packing Demensions Packing Width
30 in
Saw Blade Saw Blade Bore Size
1.25 in
Saw Blade Saw Blade Diameter
14 in
Saw Blade Saw Blade Pin Hole Diameter
0.45 in
Saw Blade Saw Blade Pin Hole Size
8 in
Saw Blade Saw Blade Pivot Center Diameter
2.5 in
Specifications Air Pressure Consumption
6 bar | 240 L/min
Specifications Blade Speed
20 to 80 rpm
Specifications Control Voltage
24 V
Specifications Coolant Pump Motor Power
0.08 hp
Specifications Features
Semi-Automatic
Specifications Frequency
60 Hz
Specifications Gross Weight
700 lb
Specifications Head Swivel 90 Degree Angle Tolerance
45 º
Specifications Head Swivel Angle
45 º | 90 º
Specifications Main Voltage
220 V
Specifications Maximum Saw Blade Diameter
14 in
Specifications Motor Power
3 hp
Specifications Net Weight
600 lb
Specifications Nominal Current
5.58 A
Specifications Phase
3
Specifications Power
3 hp
Specifications Type
Cold Saw
