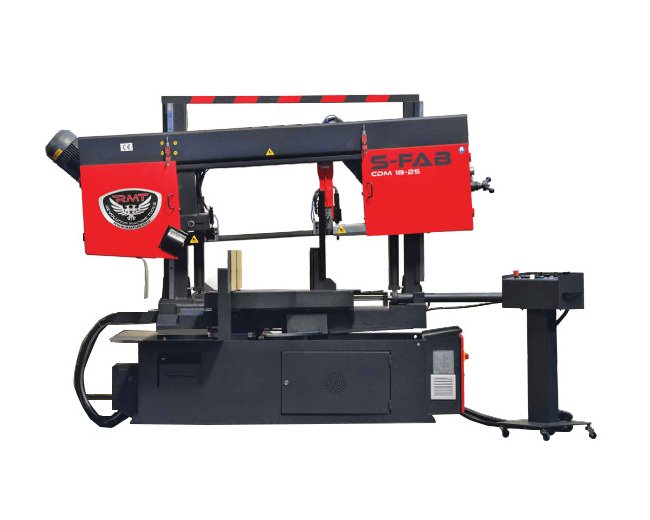

RMT S-FAB CDM 18-25 Semi-Automatic Column Band Saw
RMT S-FAB CDM 18-25 Semi-Automatic Column Band Saw
SKU:BAN-c688b0
Powerful 5.5 kW semi-automatic band saw for industrial cutting applications. Precision, efficiency, and enhanced safety features.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RMT S-FAB CDM 18-25 Semi-Automatic Column Band Saw
$8,999.99
Quantity: 1
Claim Your Seller Account
RMT S-FAB CDM 18-25 Semi-Automatic Column Band Saw
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-FAB CDM 18-25 Semi-Automatic Column Band Saw is a robust 5.5 kW machine designed to meet the demands of industrial cutting applications. With a cutting speed ranging from 20 to 100 m/min and various angle capacities, this band saw offers precision and efficiency. Equipped with a range of standard features including a control panel, hydraulic vice, and sensitive pressure control, it ensures safe and reliable operation. Additionally, optional features like hydraulic blade tension and a motorized roller table enhance versatility and productivity. This band saw complies with federal procurement standards, GSA requirements, FAR compliance factors, and is TAA compliant, making it an ideal choice for government and institutional buyers.
Product Specifications

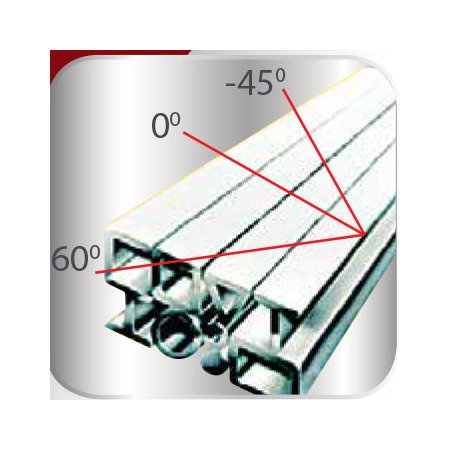

Capacities Capacity At 0 Degree Angle Flat Height X Width
18 x 25.2 in | 457 x 640 mm
Capacities Capacity At 0 Degree Angle Round
18 in | 457 mm
Capacities Capacity At 0 Degree Angle Square
18 in | 457 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
18 x 20 in | 457 x 508 mm
Capacities Capacity At 30 Degree Angle Round
18 in | 457 mm
Capacities Capacity At 30 Degree Angle Square
18 in | 457 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
18 x 15.4 in | 457 x 391 mm
Capacities Capacity At 45 Degree Angle Round
15.4 in | 391 mm
Capacities Capacity At 45 Degree Angle Square
15.4 in | 391 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
18 x 9.8 in | 457 x 249 mm
Capacities Capacity At 60 Degree Angle Round
9.8 in | 249 mm
Capacities Capacity At 60 Degree Angle Square
9.8 in | 250 mm
Machine Dimensions Machine Height
76 in | 1930 mm
Machine Dimensions Machine Length
123 in | 3124 mm
Machine Dimensions Machine Width
48 in | 1200 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
204.7 x 1.61 in | 5200 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
5.5 kW | 7.5 hp
Specifications Weight
1780 kg | 3924 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionOptical saw height adjustmentLinear guide railsCoolant pump
