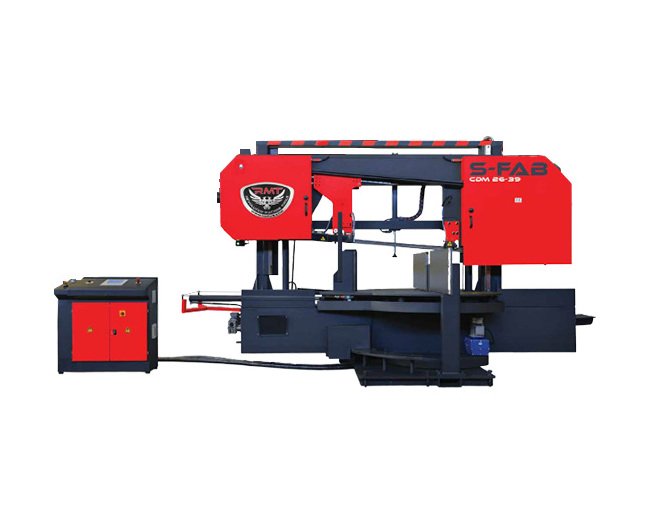

RMT S-FAB CDM 26-39, 7.5 kW Semi-Automatic Column Band Saw
RMT S-FAB CDM 26-39, 7.5 kW Semi-Automatic Column Band Saw
SKU:BAN-05e88c
Experience precision with the RMT S-FAB CDM 26-39 7.5 kW Semi-Automatic Column Band Saw. Ideal for industrial applications.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
RMT S-FAB CDM 26-39, 7.5 kW Semi-Automatic Column Band Saw
$18,999.00
Quantity: 1
Claim Your Seller Account
RMT S-FAB CDM 26-39, 7.5 kW Semi-Automatic Column Band Saw
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-FAB CDM 26-39 is a robust 7.5 kW semi-automatic column band saw designed for precision cutting in industrial settings. With a cutting speed range of 20 to 100 m/min and a Main Motor Power of 7.5 kW, this machine offers efficient performance. It features a hydraulic vice, motorized blade brush, and a security switch for enhanced safety. The S-FAB CDM 26-39 meets stringent industry standards, making it suitable for government and institutional procurements.
Product Specifications

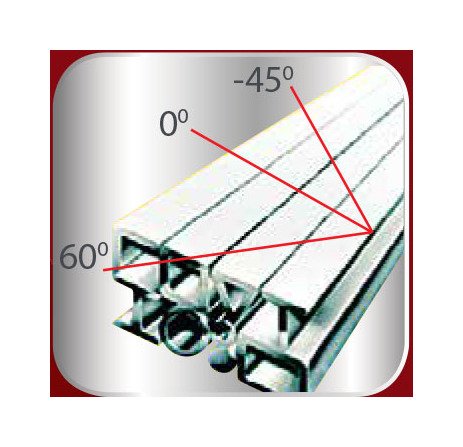

Capacities Capacity At 0 Degree Angle Flat Height X Width
23.6 x 39.8 in | 559 x 1000 mm
Capacities Capacity At 0 Degree Angle Round
25.6 in | 650 mm
Capacities Capacity At 0 Degree Angle Square
23.6 in | 559 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
23.6 x 33 in | 599 x 838 mm
Capacities Capacity At 30 Degree Angle Round
25.6 in | 650 mm
Capacities Capacity At 30 Degree Angle Square
23.6 in | 599 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
23.6 x 26 in | 599 x 660 mm
Capacities Capacity At 45 Degree Angle Round
25.6 in | 650 mm
Capacities Capacity At 45 Degree Angle Square
23.6 in | 599 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
23.6 x 17.3 in | 599 x 439 mm
Capacities Capacity At 60 Degree Angle Round
17.3 in | 439 mm
Capacities Capacity At 60 Degree Angle Square
17.3 in | 439 mm
Machine Dimensions Machine Height
104 in | 2642 mm
Machine Dimensions Machine Length
188 in | 4775 mm
Machine Dimensions Machine Width
90 in | 2286 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
330.7 x 2.12 in | 8400 x 54 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
5.5 kW | 7.5 hp
Specifications Main Motor Power
7.5 kW | 10 hp
Specifications Weight
6250 kg | 13779 lb
Standard Features
Control panelMotorized blade brushHydraulic viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionOptical saw height adjustmentLinear guide railsTurn tableTurn table brakeProximity switch for sensing blade slippageChip conveyorCoolant pump
