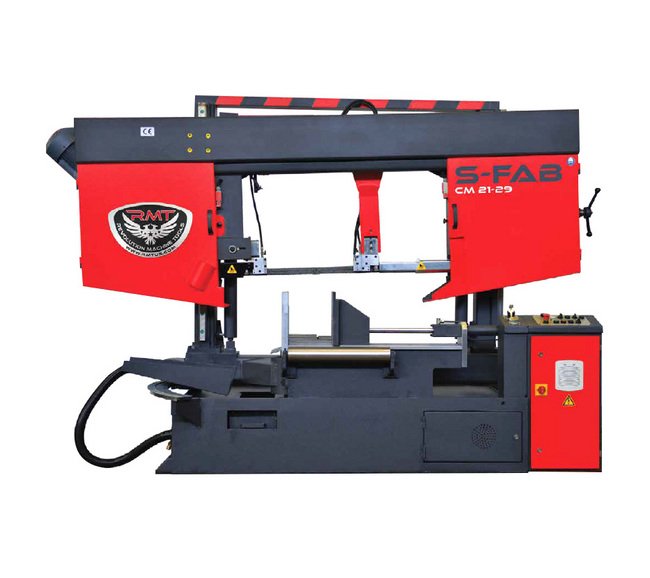

The RMT S-FAB CM 21-29 Band Saw is a powerful and precise semi-automatic column type single miter band saw designed for industrial cutting applications. With a 5.5 kW main motor and cutting speeds ranging from 20 to 100 m/min, this bandsaw offers exceptional performance. It features a hydraulic vice, digital angle display, and hydro mechanical blade tension for optimal cutting accuracy. The machine also includes standard features like a control panel, security switch, and coolant pump, ensuring efficiency and safety in operation. Compliant with Federal/DoD procurement standards and industry-specific certifications, this band saw is a reliable choice for government and institutional buyers.
Product Specifications

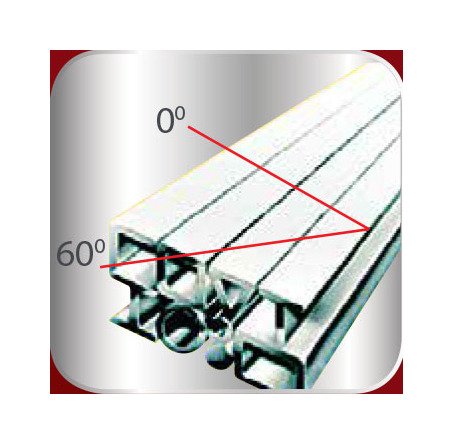

Capacities Capacity At 0 Degree Angle Flat Height X Width
21.3 x 29.5 in | 541 x 749 mm
Capacities Capacity At 0 Degree Angle Round
21.3 in | 541 mm
Capacities Capacity At 0 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
21.3 x 23.6 in | 541 x 599 mm
Capacities Capacity At 30 Degree Angle Round
21.3 in | 541 mm
Capacities Capacity At 30 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
21.3 x 17.7 in | 541 x 449 mm
Capacities Capacity At 45 Degree Angle Round
20.1 in | 510 mm
Capacities Capacity At 45 Degree Angle Square
17.7 in | 449 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
21.3 x 9.8 in | 541 x 249 mm
Capacities Capacity At 60 Degree Angle Round
10.6 in | 269 mm
Capacities Capacity At 60 Degree Angle Square
9.8 in | 250 mm
Machine Dimensions Machine Height
84 in | 2134 mm
Machine Dimensions Machine Length
115 in | 2921 mm
Machine Dimensions Machine Width
46 in | 1150 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
236.2 x 1.61 in | 6000 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
5.5 kW | 7.5 hp
Specifications Roller Table Height
4 ft
Specifications Weight
2445 kg | 5390 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlDigital angle displayHydro mechanical blade tensionOptical saw height adjustmentLinear guide railsCoolant pump
